10-Port Gigabit PoE Network Switch | PLN-1108GB | 8 × Gigabit PoE Ports | 2 × Gigabit Uplink | 120W PoE Budget | 20 Gbps Switching | 4KV Lightning Protection | IP30

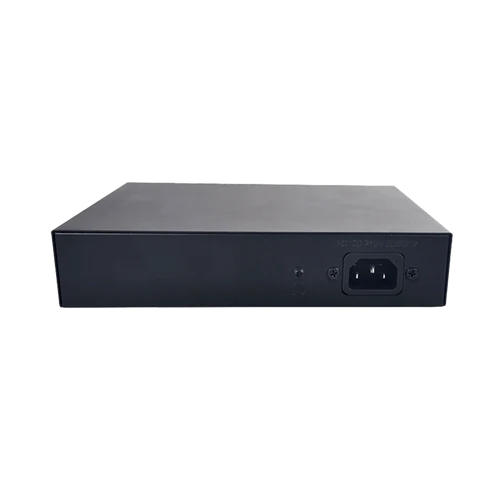

10-Port Gigabit PoE Network Switch
PLN-1108GB
• 8 × Gigabit PoE ports (10/100/1000Base-T) for data & power
• 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T)
• Auto-sensing ports with MDI/MDI-X self-adaptation, full/half duplex
• Supports Cat3–Cat5e UTP, transmission distance up to 100 m
• Compliant with IEEE 802.3 / 802.3u / 802.3ab / 802.3x standards
• Store-and-Forward switching, full wire-speed performance
• 20 Gbps non-blocking switching capacity
• 14.88 Mpps forwarding rate @64-byte packets
• 2K MAC address table, 2 MB buffer memory
• Supports 9.2K jumbo frames
• IEEE 802.3af/at PoE on ports 1–8
• 30 W max per PoE port, 120 W total PoE budget
• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption: <6 W standby, <120 W full load
• LED indicators for Power, Link, and PoE status
• Supports desktop and wall-mount installation
• 4KV lightning protection, IP30 protection level
• Certified: CCC, CE, FCC, RoHS
View Datasheet
How to Buy?
AI PoE Switches for Every
Network
Whether it's a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.
Built for Server-Grade
Performance
Designed for rack environments, Pollo's AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.
Protection at the Core of Your
Network
From power spikes to unstable grids, Pollo AI PoE Network Switches shield your infrastructure with reliable surge protection designed for real-world conditions.
10-Port Gigabit PoE Network Switch PLN-1108GB. 8 × Gigabit PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit uplink ports, 120W PoE budget, 20 Gbps switching capacity, 4KV lightning protection, IP30.
PLN-1108GB 10-Port Gigabit PoE Network Switch. Features 8 × Gigabit PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit uplink, 120W PoE budget, 20 Gbps switching, 4KV lightning protection, IP30, desktop/wall-mount.
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this PoE switch and how many ports does it have? +
A: PLN-1108GB. It is a 10-Port Gigabit PoE Network Switch featuring 8 × Gigabit PoE ports (10/100/1000Base-T) and 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T).
Q2: What is the PoE power budget and power per port? +
A: Total PoE power budget is 120 W. Each PoE port (ports 1–8) supports IEEE 802.3af/at with a maximum of 30 W per port.
Q3: What is the switching capacity, forwarding rate, and supported cable types? +
A: Non-blocking switching capacity is 20 Gbps. Forwarding rate is 14.88 Mpps @64-byte packets. Supports Cat3–Cat5e UTP with transmission distance up to 100 m.
Q4: What are the protection features, installation options, and certifications? +
A: Protection features: 4KV lightning protection and IP30 protection level. Installation options: desktop and wall-mount. Certified with CCC, CE, FCC, and RoHS.
