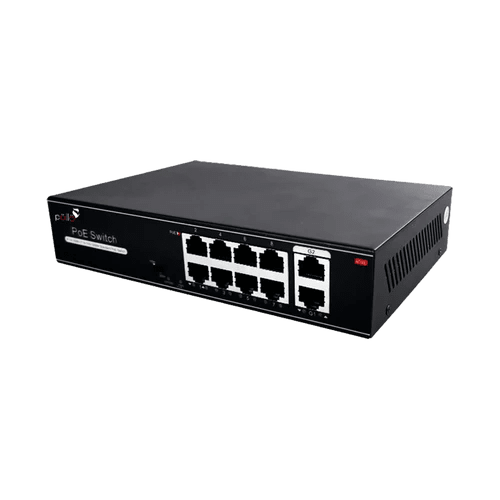

10-Port Megabit PoE Network Switch with Gigabit Uplink | PLN-1108MGB | 8 × PoE Ports | 2 × Gigabit Uplink | 120W PoE Budget | Extended Mode up to 250m | IP30 | 4KV Lightning Protection
10-Port Megabit PoE Network Switch with Gigabit Uplink
PLN-1108MGB
• 8 × 10/100Base-TX PoE ports for data and power
• 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T)
• Ports 1–8 support 10/100 Mbps, ports 9–10 support 10/100/1000 Mbps
• Full/half-duplex operation with MDI/MDI-X auto-adaptation
• Built-in Extender mode for long-distance transmission
• Extended transmission up to 250 m on Cat5 UTP
• Complies with IEEE 802.3 / 802.3u / 802.3x standards
• Store-and-forward switching with full wire-speed performance
• 11.8 Gbps non-blocking switching capacity
• 4.17 Mpps forwarding rate @64-byte packets
• 3K MAC address table with 2 MB buffer memory
• IEEE 802.3af/at PoE supported on ports 1–8
• Maximum 30 W per PoE port
• Total PoE power budget up to 120 W
• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption: <5 W standby, <120 W full load
• LED indicators for power, link, PoE, and extender status
• Operating temperature range -20°C to +55°C
• Desktop and wall-mount installation options
• 4 KV lightning protection, IP30 protection level
• Certified: CCC, CE, FCC, RoHS
View Datasheet
How to Buy?
AI PoE Switches for Every
Network
Whether it's a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.
Built for Server-Grade
Performance
Designed for rack environments, Pollo's AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.
Protection at the Core of Your
Network
From power spikes to unstable grids, Pollo AI PoE Network Switches shield your infrastructure with reliable surge protection designed for real-world conditions.
10-Port Megabit PoE Network Switch with Gigabit Uplink PLN-1108MGB. 8 × PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit uplink ports, Extender mode up to 250m, total PoE budget 120W, IP30, 4KV lightning protection.
PLN-1108MGB 10-Port Megabit PoE Network Switch with Gigabit Uplink. Features 8 × PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit uplink, Extender mode up to 250m, 120W PoE budget, IP30, 4KV lightning protection, desktop/wall-mount.
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this PoE switch and how many ports does it have? +
A: PLN-1108MGB. It is a 10-Port Megabit PoE Network Switch with Gigabit Uplink featuring 8 × 10/100Base-TX PoE ports and 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T).
Q2: What is the PoE power budget and power per port? +
A: Total PoE power budget is up to 120 W. Each PoE port (ports 1–8) supports IEEE 802.3af/at with a maximum of 30 W per port.
Q3: What is the maximum transmission distance and what special mode is available? +
A: Extended transmission up to 250 m on Cat5 UTP with built-in Extender mode for long-distance transmission.
Q4: What are the switching capacity, installation options, protection features, and operating temperature? +
A: Non-blocking switching capacity is 11.8 Gbps. Installation options: desktop and wall-mount. Protection features: 4 KV lightning protection and IP30 protection level. Operating temperature range: -20°C to +55°C.
