18-Port Gigabit PoE Network Switch with 2 SFP | PLN-1116GB-SFP | 16 × Gigabit PoE Ports | 2 × RJ45 Uplink | 2 × SFP Fiber | 250W PoE Budget | 56 Gbps Switching | 4KV Lightning Protection | IP30

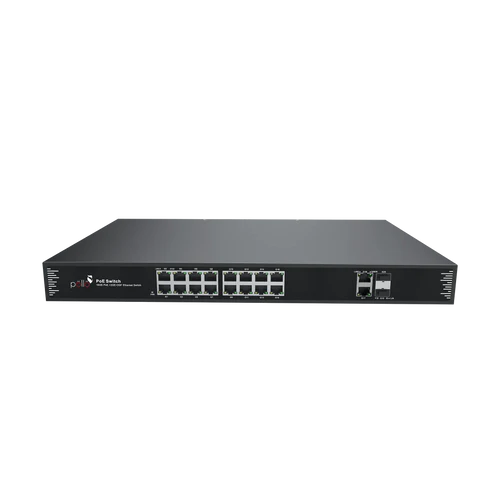

18-Port Gigabit PoE Network Switch with 2 SFP
PLN-1116GB-SFP
• 16 × Gigabit PoE ports for data and power
• 2 × Gigabit RJ45 uplink ports
• 2 × Gigabit SFP fiber uplink ports
• Auto-sensing 10/100/1000Base-T with full/half duplex and MDI/MDI-X
• Supports Cat3–Cat5e UTP cabling up to 100 meters
• SFP ports support single-mode and multi-mode fiber (optional modules)
• Fiber transmission distance up to 120 km depending on module
• Complies with IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x standards
• Store-and-forward switching with full wire-speed performance
• 56 Gbps non-blocking switching capacity
• 29.76 Mpps forwarding rate at 64-byte packets
• 8K MAC address table with 4 MB buffer memory
• Supports 9.6K jumbo frames
• IEEE 802.3af/at PoE with up to 30 W per port
• Total PoE power budget up to 250 W
• Built-in AC power supply (100–240 V, 50/60 Hz)
• LED indicators for power, network, PoE, and fiber status
• One-button factory reset support
• Desktop, wall-mount, or 19″ 1U rack installation
• 4 KV lightning protection with IP30 protection level
View Datasheet
How to Buy?
AI PoE Switches for Every
Network
Whether it's a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.
Built for Server-Grade
Performance
Designed for rack environments, Pollo's AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.
Protection at the Core of Your
Network
From power spikes to unstable grids, Pollo AI PoE Network Switches shield your infrastructure with reliable surge protection designed for real-world conditions.
18-Port Gigabit PoE Network Switch with 2 SFP PLN-1116GB-SFP. 16 × Gigabit PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit RJ45 uplink, 2 × SFP fiber uplink, 250W PoE budget, 56 Gbps switching capacity, 4KV lightning protection, IP30.
PLN-1116GB-SFP 18-Port Gigabit PoE Network Switch with 2 SFP. Features 16 × Gigabit PoE ports (30W per port), 2 × RJ45 uplink, 2 × SFP fiber uplink (up to 120km), 250W PoE budget, 56 Gbps switching, 4KV lightning protection, IP30.
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this PoE switch and how many ports does it have? +
A: PLN-1116GB-SFP. It is an 18-Port Gigabit PoE Network Switch featuring 16 × Gigabit PoE ports, 2 × Gigabit RJ45 uplink ports, and 2 × Gigabit SFP fiber uplink ports.
Q2: What is the PoE power budget and power per port? +
A: Total PoE power budget is up to 250 W. Each PoE port supports IEEE 802.3af/at with up to 30 W per port.
Q3: What is the switching capacity, forwarding rate, and fiber transmission distance? +
A: Non-blocking switching capacity is 56 Gbps. Forwarding rate is 29.76 Mpps at 64-byte packets. SFP ports support fiber transmission distance up to 120 km depending on the module.
Q4: What are the installation options, protection features, and cabling support? +
A: Installation options: desktop, wall-mount, or 19″ 1U rack. Protection features: 4 KV lightning protection with IP30 protection level. Supports Cat3–Cat5e UTP cabling up to 100 meters.
