28-Port Gigabit PoE Network Switch with 2 SFP | PLN-1124GB-SFP | 24 × Gigabit PoE Ports | 2 × RJ45 Uplink | 2 × SFP Fiber | 400W PoE Budget | 56 Gbps Switching | 4KV Lightning Protection | IP30

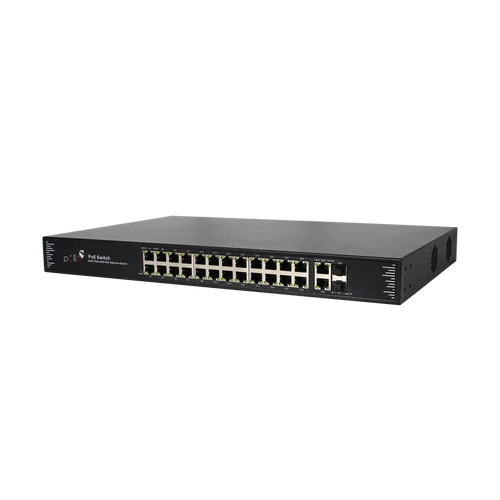

28-Port Gigabit PoE Network Switch with 2 SFP
PLN-1124GB-SFP
• 24 × Gigabit PoE ports (10/100/1000Base-T) for data and power
• 2 × Gigabit uplink RJ45 ports for high-speed networking
• 2 × Gigabit SFP uplink slots for fiber connectivity
• Auto-sensing ports with full/half-duplex and MDI/MDI-X support
• Supports Cat3–Cat5e UTP with transmission up to 100 meters
• Gigabit SFP ports support single-mode and multi-mode fiber (optional modules)
• Optical distance up to 120 km depending on SFP module type
• Compliant with IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x standards
• Store-and-forward switching with full wire-speed performance
• 56 Gbps non-blocking switching capacity
• 41.66 Mpps forwarding rate @64-byte packets
• 8K MAC address table with 4 MB buffer memory
• Supports 9.6K jumbo frames
• IEEE 802.3af/at PoE on ports 1–24, up to 30 W per port
• Total PoE power budget up to 400 W
• Built-in AC power supply (100–240 V, 50/60 Hz)
• LED indicators for power, link, PoE, and fiber status
• One-button factory reset supported
• Desktop, wall-mount, and 19" 1U rack-mount installation options
• 4 KV lightning protection with IP30 protection level
• Certified: CCC, CE, FCC, RoHS
View Datasheet
How to Buy?
AI PoE Switches for Every
Network
Whether it's a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.
Built for Server-Grade
Performance
Designed for rack environments, Pollo's AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.
28-Port Gigabit PoE Network Switch with 2 SFP PLN-1124GB-SFP. 24 × Gigabit PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit RJ45 uplink, 2 × SFP fiber uplink, 400W PoE budget, 56 Gbps switching, 4KV lightning protection, IP30.
PLN-1124GB-SFP 28-Port Gigabit PoE Network Switch with 2 SFP. Features 24 × Gigabit PoE ports (30W per port), 2 × RJ45 uplink, 2 × SFP fiber (up to 120km), 400W PoE budget, 56 Gbps switching, 4KV lightning protection, IP30, 19" 1U rack-mount.
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this PoE switch and how many ports does it have? +
A: PLN-1124GB-SFP. It is a 28-Port Gigabit PoE Network Switch featuring 24 × Gigabit PoE ports (10/100/1000Base-T), 2 × Gigabit uplink RJ45 ports, and 2 × Gigabit SFP uplink slots for fiber connectivity.
Q2: What is the PoE power budget and power per port? +
A: Total PoE power budget is up to 400 W. Each PoE port (ports 1–24) supports IEEE 802.3af/at with up to 30 W per port.
Q3: What is the switching capacity, forwarding rate, and fiber transmission distance? +
A: Non-blocking switching capacity is 56 Gbps. Forwarding rate is 41.66 Mpps @64-byte packets. SFP ports support optical distance up to 120 km depending on the SFP module type.
Q4: What are the installation options, protection features, and certifications? +
A: Installation options: desktop, wall-mount, and 19" 1U rack-mount. Protection features: 4 KV lightning protection with IP30 protection level. Certified with CCC, CE, FCC, and RoHS.
