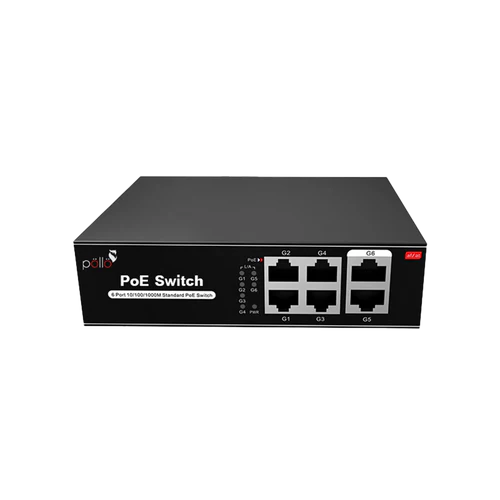

6-Port Gigabit PoE Network Switch | PLN-1104GB | 4 × Gigabit PoE Ports | 2 × Gigabit Uplink | 65W PoE Budget | 16 Gbps Switching | 4KV Lightning Protection | IP30
6-Port Gigabit PoE Network Switch
PLN-1104GB
• 4 × Gigabit PoE ports for data and power transmission
• 2 × Gigabit uplink RJ45 ports for network expansion
• Supports 10/100/1000 Mbps auto-sensing Ethernet ports
• Full/half duplex with MDI/MDI-X auto-adaptation
• Compatible with Cat3, Cat5, Cat5e, and higher UTP cables
• Transmission distance up to 100 meters
• Complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards
• Store-and-forward forwarding mode at full wire speed
• 16 Gbps non-blocking switching capacity
• Forwarding rate up to 8.93 Mpps
• 8K MAC address table
• 2 MB buffer memory for smooth data handling
• Supports jumbo frames up to 9.2K
• IEEE 802.3af/at PoE support with up to 30W per port
• Total PoE power budget of 65W
• Built-in AC power supply (100–240V, 50/60Hz)
• Low power consumption (<5W standby)
• LED indicators for power, network, and PoE status
• Lightning protection up to 4KV with IP30 protection level
View Datasheet
How to Buy?
AI PoE Switches for Every
Network
Whether it's a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.
Built for Server-Grade
Performance
Designed for rack environments, Pollo's AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.
Protection at the Core of Your
Network
From power spikes to unstable grids, Pollo AI PoE Network Switches shield your infrastructure with reliable surge protection designed for real-world conditions.
6-Port Gigabit PoE Network Switch PLN-1104GB. 4 × Gigabit PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit uplink ports, 65W PoE budget, 16 Gbps switching capacity, 4KV lightning protection, IP30.
PLN-1104GB 6-Port Gigabit PoE Network Switch. Features 4 × Gigabit PoE ports (IEEE 802.3af/at, 30W per port), 2 × Gigabit uplink, 65W PoE budget, 16 Gbps switching, 4KV lightning protection, IP30, desktop design.
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this PoE switch and how many ports does it have? +
A: PLN-1104GB. It is a 6-Port Gigabit PoE Network Switch featuring 4 × Gigabit PoE ports and 2 × Gigabit uplink RJ45 ports.
Q2: What is the PoE power budget and power per port? +
A: Total PoE power budget is 65W. Each PoE port supports IEEE 802.3af/at with up to 30W per port.
Q3: What is the switching capacity, forwarding rate, and supported cable types? +
A: Non-blocking switching capacity is 16 Gbps. Forwarding rate is up to 8.93 Mpps. Compatible with Cat3, Cat5, Cat5e, and higher UTP cables with transmission distance up to 100 meters.
Q4: What are the protection features, power supply, and power consumption? +
A: Protection features: Lightning protection up to 4KV with IP30 protection level. Built-in AC power supply (100–240V, 50/60Hz). Low power consumption: <5W standby.
