6-Port Megabit PoE Network Switch | PLN-1104MB | 4 × PoE Ports (IEEE 802.3af/at) | 2 × Uplink Ports | 65W PoE Budget | Extended Mode up to 250m

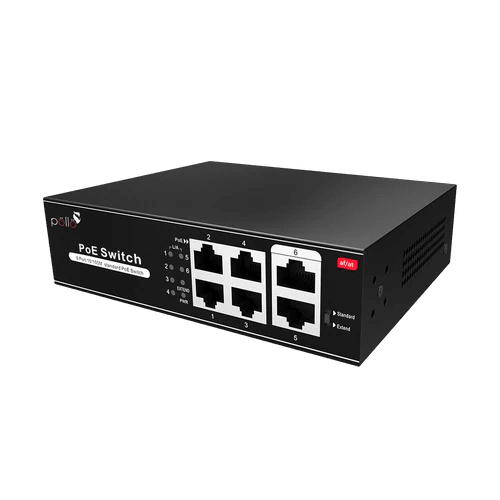

6-Port Megabit PoE Network Switch
PLN-1104MB
• 4 × 10/100 Mbps PoE ports for data and power
• 2 × 10/100 Mbps uplink RJ45 ports
• Ports 1–6 support auto-detection and MDI/MDI-X auto-sensing
• Supports full and half-duplex transmission
• Extender + CCTV functional switch (restart required after switching)
• Extended transmission up to 250 m on 10BASE-TX
• Standard transmission up to 100 m on 100BASE-TX
• Compliant with IEEE 802.3, 802.3u, and 802.3x standards
• Store-and-forward forwarding mode
• 1.6 Gbps non-blocking switching capacity
• Forwarding rate up to 0.98 Mpps
• 1K MAC address table
• 768 KB buffer memory
• IEEE 802.3af/at PoE support on ports 1–4
• Up to 30 W PoE power per port
• Total PoE power budget of 65 W
• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption (<3 W standby)
• LED indicators for power, network, PoE, and extend mode
View Datasheet
How to Buy?
AI PoE Switches for Every
Network
Whether it's a small CCTV setup or a high-density installation, Pollo delivers AI PoE switches that adapt to different environments and deployment sizes.
Built for Server-Grade
Performance
Designed for rack environments, Pollo's AI PoE Switches power dozens of devices while ensuring consistent data flow, centralized control, and long-term network reliability.
Protection at the Core of Your
Network
From power spikes to unstable grids, Pollo AI PoE Network Switches shield your infrastructure with reliable surge protection designed for real-world conditions
6-Port Megabit PoE Network Switch PLN-1104MB. 4 × 10/100 Mbps PoE ports (IEEE 802.3af/at), 2 × uplink RJ45 ports, extended mode up to 250m, total PoE budget 65W (30W per port), built-in AC power, <3W standby.
PLN-1104MB 6-Port Megabit PoE Network Switch. Features 4 × PoE ports (IEEE 802.3af/at, 30W per port), 2 × uplink ports, extended transmission up to 250m, 65W total PoE budget, built-in AC power, low standby consumption (<3W).
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this PoE switch and how many ports does it have? +
A: PLN-1104MB. It is a 6-Port Megabit PoE Network Switch featuring 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps uplink RJ45 ports.
Q2: What is the maximum transmission distance and which ports support PoE? +
A: Extended transmission up to 250 m on 10BASE-TX. Standard transmission up to 100 m on 100BASE-TX. IEEE 802.3af/at PoE support is available on ports 1–4.
Q3: What is the PoE power budget and power per port? +
A: Total PoE power budget is 65 W. Each PoE port (ports 1–4) can deliver up to 30 W.
Q4: What is the switching capacity, power supply, and standby power consumption? +
A: Non-blocking switching capacity is 1.6 Gbps. Built-in AC power supply (100–240 V, 50/60 Hz). Low power consumption: <3 W standby.
