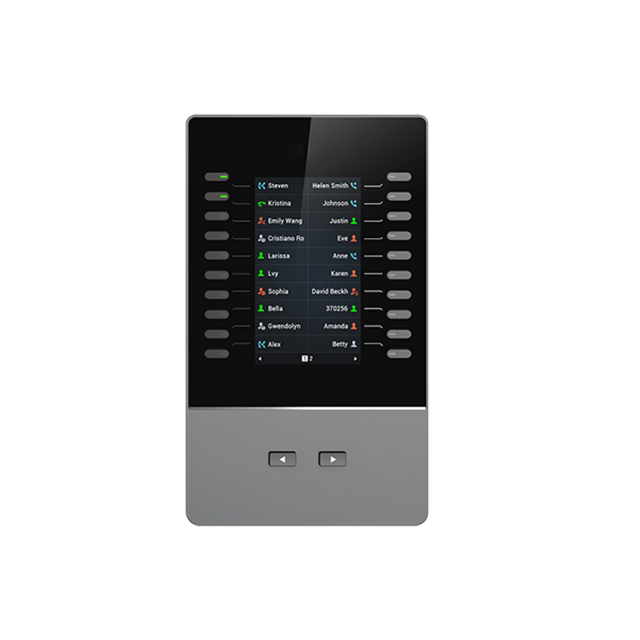

Grandstream GBX20 Extension Module | 40 Keys, 4.3" LCD, BLF & Expandable
Grandstream GBX20: Transform Your Phone into a Powerful Call Management Console
The Grandstream GBX20 Extension Module is a purpose-built attendant console that turns your compatible Grandstream IP phone into a comprehensive call management station. Designed for busy receptionists, executive assistants, call centre supervisors, and power users who need instant access to dozens of extensions, the GBX20 eliminates the need to scroll through menus or remember complex feature codes.
Massive Expansion with Flexible Daisy‑Chaining
The GBX20 allows you to expand your call control significantly. Each module provides 20 physical, dual‑colored programmable keys. Two page keys allow you to switch between two virtual pages, giving each module an effective capacity of 40 contacts/extensions. For even greater capacity, you can connect up to 4 GBX20 modules in a daisy‑chain configuration to a single compatible phone, resulting in a total of 160 programmable keys on your desktop. The colour‑coded dual‑colored LEDs instantly communicate the status of each monitored extension (e.g., idle, ringing, busy), allowing you to see at a glance which colleagues are available to take a call.
Crystal‑Clear Colour LCD for Easy Monitoring
The GBX20 is equipped with a 4.3‑inch (272×480) TFT colour LCD – large enough to clearly see the status of all 40 assignments per module. The local GUI is driven directly from the host phone and features smooth animations, making it intuitive to navigate, configure, and monitor line‑by‑line statuses.
Advanced Call Features at Your Fingertips
Every programmable key on the GBX20 supports a comprehensive suite of advanced telephony features, enabling you to handle high‑volume call traffic professionally and efficiently. Supported functions include:
-
BLF (Busy Lamp Field) and Presence – Monitor the real‑time status of other extensions (idle, ringing, busy) directly from the module, and see if a colleague is available before transferring a call.
-
Call Pick‑Up / Call Park – Answer a call ringing on another extension with a single button press, or park an active call on a specific extension for retrieval from another phone.
-
Speed‑Dial – Configure frequently called numbers to dedicated buttons for instant dialling.
-
Intercom and Voice Conferencing – Initiate direct intercom pages or set up voice conferences without navigating complex menus.
-
Transfer and Forward – Blind or attended transfer of active calls, along with advanced call forwarding options.
Simple Installation and Centralised Configuration
The GBX20 is designed for simple, tool‑assisted physical installation. A secure metal connector plate bridges the phone and the extension module, and a USB cable provides the data and power connection (for a single module). When two or more modules are attached, the included 12V/1A power adapter ensures stable power delivery to all units. Configuration of the extension keys is handled centrally through the host phone's web GUI, meaning changes can be made quickly and consistently across multiple modules.
Which Grandstream Phones Work with the GBX20?
The GBX20 is compatible with a growing list of Grandstream phones. Confirm your existing phone supports the module before purchasing. The following models are confirmed to be compatible: GRP2615, GRP2624, GRP2650, GRP2670, GXV3350, and GXV3450.
Technical Specifications
Frequently Asked Questions
Q1: What is the primary purpose of the Grandstream GBX20, and which phones is it compatible with? +
The GBX20 is an attendant console/extension module that adds up to 160 programmable keys to a compatible Grandstream IP phone. It is designed for receptionists, supervisors, and other high‑volume call users, allowing them to monitor extension status and perform call‑handling functions with one touch. It is compatible with the GRP2615, GRP2624, GRP2650, GRP2670, GXV3350, and GXV3450 phones. This makes it a flexible addition to a wide range of deployment scenarios, from small offices to large enterprise call centres.
Q2: How many GBX20 modules can I connect to a single phone, and how many total keys does that give me? +
You can connect up to four GBX20 modules in a daisy‑chain configuration. Each module provides 20 physical keys and supports 2 pages (via dedicated arrow keys), giving each module an effective capacity of 40 keys. With four modules, you have instant access to a total of 160 programmable contacts/extensions on your desktop.
Q3: Does the GBX20 work with Pakistan’s 220V power supply? +
Yes. For a single module, the GBX20 receives power directly from the host phone (which itself runs on a universal power adapter or PoE). When you connect two or more modules, the included 12V/1A power adapter is required. This adapter accepts a universal input of 100‑240VAC, 50‑60Hz and works seamlessly on Pakistan‘s standard 220V/50Hz grid. The total system power consumption remains well within standard office requirements.
Q4: What does “BLF” mean and how does the GBX20’s dual-colour LED feature help a receptionist? +
BLF stands for Busy Lamp Field. It allows you to see the real‑time status (idle, ringing, in‑use) of an extension using a small light indicator. The GBX20 features 20 dual‑coloured LEDs that change colour based on the status of the monitored extension. This provides a receptionist with instant, at‑a‑glance visual feedback on which colleagues are available to take a call, greatly improving response times and call routing efficiency. The module also supports presence status, showing whether a user is in a meeting, away, or off‑line.
