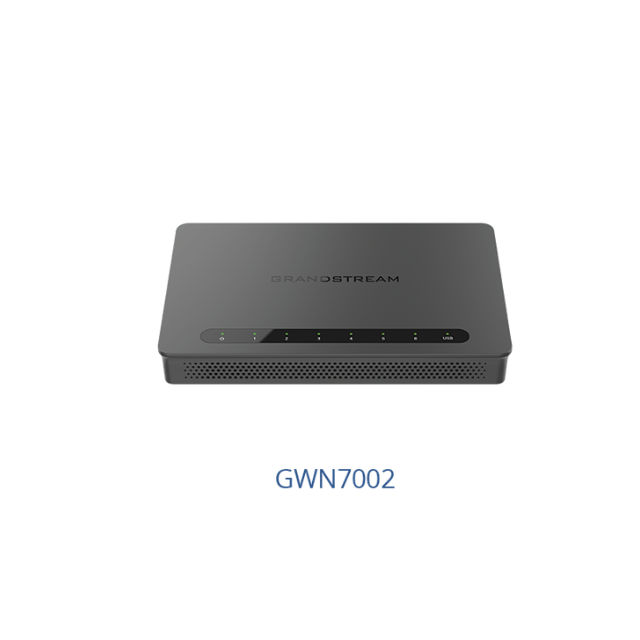

Grandstream GWN7002 VPN Router | 6 Multi‑WAN Ports + 2x 2.5G SFP, 50 VPN Tunnels

Grandstream GWN7002: Fibre‑Ready Multi‑WAN VPN Router for SMEs

The Grandstream GWN7002 is a next‑generation Multi‑WAN Gigabit VPN router, purpose‑built for small‑to‑medium businesses that require high‑availability internet, robust security, and the ability to incorporate fibre‑optic uplinks. It delivers a powerful combination of wired routing, a built‑in firewall, comprehensive VPN capabilities, and centralised management of up to 150 Grandstream Wi‑Fi access points – all in a compact, fanless design.

Guaranteed Uptime with Load Balancing & Failover

Connect up to six internet sources simultaneously using its 2.5 Gigabit SFP fibre ports plus 4 Gigabit Ethernet ports, all of which can be configured as WAN or LAN. This allows you to mix fibre connections, DSL, cable, or 4G LTE, then apply intelligent load balancing to distribute traffic across links and automatic failover to instantly switch to a backup connection if the primary link fails. These features are essential for businesses that rely on uninterrupted VoIP calls, video conferencing, cloud apps, or online payment systems.

Enterprise‑Grade Firewall and Deep Packet Inspection

The GWN7002 includes a feature‑rich firewall with Deep Packet Inspection (DPI) that identifies traffic at the application level, helping you monitor bandwidth usage and block unwanted applications. Security is further strengthened by URL/DNS/web content filtering, Anti‑DoS attack prevention, and configurable traffic rules. Together, these tools provide robust protection against external threats and help maintain a secure network environment.

High‑Performance VPN for Secure Remote Access

With support for up to 50 concurrent VPN tunnels, the GWN7002 enables secure connectivity for remote workers, branch offices, and partners. It offers versatile VPN protocols:

• IPsec VPN (site‑to‑site and client‑to‑site) – ideal for branch‑to‑headquarters connectivity

• SSL VPN – web‑based access for remote employees

• PPTP – lightweight connections for low‑security applications

• L2TP – often combined with IPsec for strong security

• WireGuard – modern, high‑performance VPN protocol (pending implementation)

The router delivers 530 Mbps IPsec VPN throughput, sufficient for simultaneous secure conversations across distributed teams.

Advanced QoS & Traffic Management for VoIP

Built‑in Advanced QoS prioritises real‑time traffic such as VoIP, video conferencing, and online collaboration tools. You can classify traffic based on port, IP address, DSCP, or even application type (via App QoS) to ensure that your most critical services always receive the bandwidth they need. With VoIP prioritisation enabled, voice calls remain crystal‑clear even during peak usage hours. VLAN (802.1Q) support further allows you to segment your network for security and performance.

Integrated Wireless Controller for GWN Access Points

The GWN7002 includes a powerful embedded controller (accessible via a user‑friendly web interface) that can manage itself and up to 150 Grandstream GWN series Wi‑Fi access points – all without additional licensing or hardware. This capability makes it the perfect wired backbone for a complete Grandstream wireless network. For larger or multi‑site deployments, the free GDMS Networking cloud platform and on‑premise GWN Manager provide zero‑touch provisioning, firmware upgrades, real‑time monitoring, and troubleshooting from anywhere.

Flexible PoE Output & Fibre‑Ready Connectivity

Two of the Gigabit Ethernet ports support PoE output (IEEE 802.3af), allowing you to directly power compatible access points, IP cameras, or IP phones without extra power adapters – reducing cable clutter and simplifying installation. The two 2.5 Gigabit SFP ports let you connect fibre‑optic services, delivering high‑throughput, low‑latency connectivity ideal for organisations with demanding upstream requirements.

Easy Deployment & Global Compatibility

The GWN7002 can be positioned on a desktop or mounted on a wall using the included kit. It comes with a universal power adapter (100‑240VAC, 50‑60Hz) that works seamlessly on Pakistan‘s 220V/50Hz grid, and ships with a standard 1‑year limited warranty (extendable up to 3 years in some regions). Certified with FCC, CE, RCM, and IC, it is ready for deployment anywhere.

Key Features & Specifications at a Glance

• Ports: 2x 2.5 Gigabit SFP ports + 4x Gigabit Ethernet ports (all configurable as WAN or LAN) – 6x Multi‑WAN capable

• PoE Output: 2x Gigabit ports support IEEE 802.3af PoE output (30W total PoE power)

• Performance: 2.2 Gbps NAT routing, 530 Mbps IPsec VPN throughput, 30,000 NAT sessions

• VPN Support: IPsec, SSL, PPTP, L2TP, WireGuard (pending) – up to 50 concurrent tunnels

• Firewall & Security: DPI, Anti‑DoS, URL/DNS/web content filtering, traffic rules, ALG

• Management: embedded web controller (150 APs), GDMS Networking (cloud, free), GWN Manager (on‑premise)

• Wi‑Fi Controller: manages up to 150 Grandstream GWN series Wi‑Fi access points

• QoS: Advanced QoS with App QoS and VoIP prioritisation; VLAN (802.1Q)

• CPU & Memory: Dual‑core ARM Cortex A53 1 GHz, 256 MB RAM, 256 MB Flash

• Power Input: 100‑240VAC, 50‑60Hz (universal) ⇒ 12V DC, 1A (12W)

• Dimensions: 210 × 130 × 35 mm (0.5U form factor)

• Weight: 0.5 kg (500‑505 g)

• Operating Temperature: 0 °C to 40 °C

• Humidity: 10% to 90% non‑condensing
