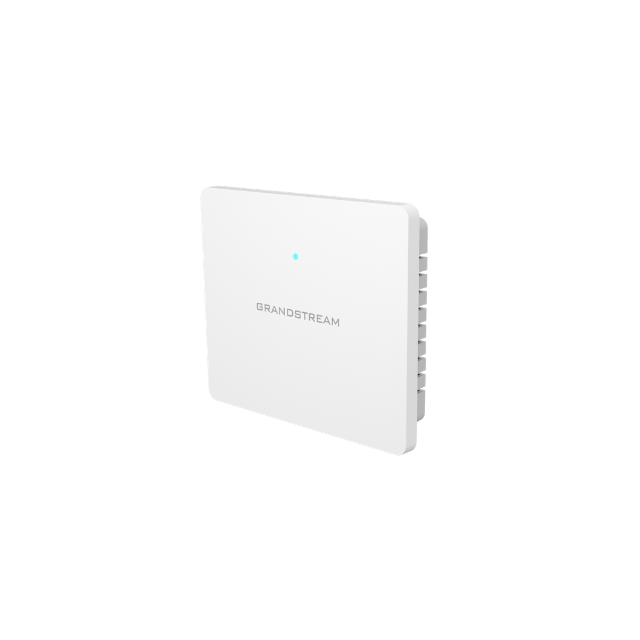

Grandstream GWN7603: The Compact Powerhouse for High‑Density Wi‑Fi

The Grandstream GWN7603 is a Wi-Fi 5 (802.11ac Wave-2) access point purpose‑built for high‑performance, flexible, and secure wireless connectivity. It is ideal for environments like small business offices, boutique hotels, restaurants, and bustling retail spaces that require robust Wi‑Fi to support VoIP, video streaming, and point‑of‑sale systems.

Blazing Fast Wireless Speeds

The GWN7603 leverages dual‑band 2×2:2 MU‑MIMO technology and a sophisticated antenna design to provide a 1.27Gbps aggregate wireless throughput, which is a theoretical peak combination of up to 400 Mbps on the 2.4GHz radio (with 256‑QAM) and up to 867 Mbps on the 5GHz radio. This ensures that your entire team stays connected without lag.

Unmatched Wired Flexibility

True versatility comes from the AP's four Gigabit Ethernet ports:

1. 1x 10/100/1000Mbps Uplink port with PoE/PoE+ input for power and data.

2. 2x 10/100/1000Mbps ports with PSE (Power Sourcing Equipment) to provide PoE and network connectivity downlink to other devices without using extra wall outlets.

3. 1x 10/100/1000Mbps port for additional wired devices.

This unique design makes the GWN7603 perfect for daisy‑chaining other devices, such as Grandstream IP phones, saving you time and cabling costs.

Enterprise‑Grade Security and Management

The GWN7603 protects your network with anti-hacking secure boot, digitally signed critical data/control lockdown, a unique security certificate, and a random default password per device.

It also features the powerful GDMS Networking platform for comprehensive cloud management of all your Grandstream networking devices.

Key Features & Specifications

• 1.27Gbps aggregate wireless throughput

• Supports 100+ concurrent Wi‑Fi client devices

• Up to 100 meters coverage range (depending on environment)

• 4 Gigabit Ethernet ports, including 1 uplink port with PoE/PoE+ input and 2 with PSE output

• Advanced QoS for real-time performance of low‑latency applications like VoIP

• Supports up to 16 SSIDs (8 per band) for network segmentation

• 2 dual‑band internal antennas (2.4GHz: up to 3.5dBi gain; 5GHz: up to 3.5dBi gain)

• Free cloud or on-premise management options (GDMS Networking, GWN Manager, or embedded controller)
