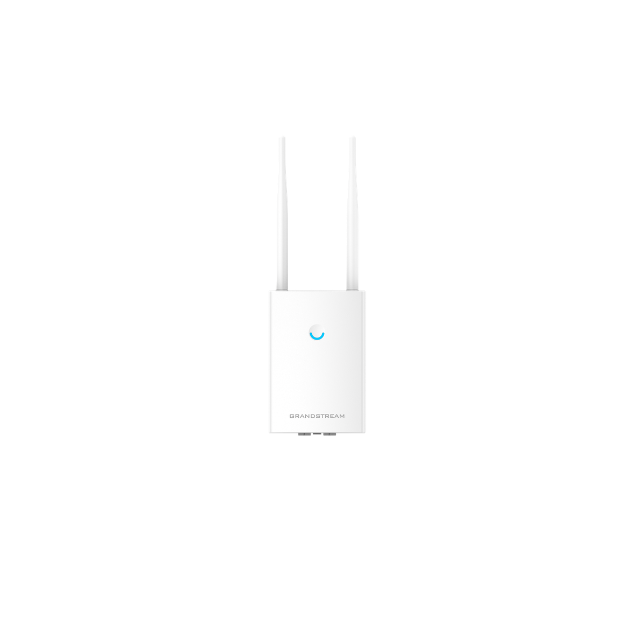

Grandstream GWN7605LR Outdoor AP | 1.27Gbps, 250m Range & 200+ Devices

Grandstream GWN7605LR: Long‑Range Weatherproof AP for Outdoor Wi‑Fi

The Grandstream GWN7605LR is a high‑performance, long‑range 802.11ac Wave‑2 access point built to withstand harsh outdoor conditions while delivering exceptional wireless coverage. It is the ideal solution for businesses and organisations that need reliable Wi‑Fi across large open spaces – such as hotel gardens and pool areas, university campuses, industrial yards, gated communities, and outdoor event venues.

Blazing Fast Wi‑Fi with MU‑MIMO

The GWN7605LR leverages dual‑band 2×2:2 MU‑MIMO with beamforming technology, delivering an aggregate throughput of 1.27Gbps (up to 300Mbps on 2.4GHz and 867Mbps on 5GHz). This allows it to serve 200+ concurrent clients simultaneously without performance degradation, ensuring smooth 4K streaming, fast file transfers, and crystal‑clear VoIP calls.

Exceptional Long‑Range Coverage

With a maximum coverage range of 250 metres (line‑of‑sight), the GWN7605LR can cover large outdoor areas with a single unit. Its 2 detachable external antennas (dual‑band, 2×2:2) provide flexibility – you can upgrade to higher‑gain antennas for even greater reach in specific deployment scenarios.

Weatherproof & Durable Design

The device is rated IP55, offering protection against dust and low‑pressure water jets from any direction. This makes it suitable for outdoor installations exposed to rain, humidity, and temperature extremes. The robust casing ensures reliable operation in Pakistan‘s diverse climate.

Flexible Deployment & PoE

The GWN7605LR is powered via PoE (802.3af/at) , requiring only a single Ethernet cable for both power and data – ideal for installations where power outlets are not available. It includes two auto‑sensing 10/100/1000Mbps Ethernet ports, allowing you to daisy‑chain another AP or connect a wired device such as an IP camera.

Enterprise‑Grade Security

Protect your network with anti‑hacking secure boot (prevents unauthorised firmware from loading), digitally signed critical data/control lockdown, a unique security certificate per device, and a random default password. It supports the latest WPA3 encryption, as well as WPA2/WPA2‑Enterprise and WEP.

Flexible Management Options

• Embedded Controller – manages up to 50 local GWN APs without a separate appliance.

• GDMS Networking – free cloud platform for unlimited AP management across multiple sites.

• GWN Manager – on‑premise software controller for larger deployments.

Key Features & Specifications

• 1.27Gbps aggregate wireless throughput

• Dual‑band 2×2:2 MU-MIMO with beamforming

• Supports 200+ concurrent Wi‑Fi client devices

• Coverage range up to 250 metres (line‑of‑sight)

• 2x detachable external antennas (dual‑band)

• 2x auto‑sensing 10/100/1000Mbps Ethernet ports with PoE/PoE+ (802.3af/at)

• IP55 weatherproof rating – dust and water jet resistant

• Advanced QoS for real‑time low‑latency applications

• 16 SSIDs (8 per radio) for network segmentation

• Security: WEP, WPA/WPA2‑PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, secure boot

• Embedded controller manages up to 50 GWN APs; GDMS Networking unlimited cloud management

• Mounting: Wall mount or pole mount (hardware included)

• Dimensions: 180.4mm × 180.4mm × 40.8mm, weight approx. 0.36 kg.
