Grandstream GWN7630 High‑Performance Wi‑Fi 5 Access Point | 2.33 Gbps

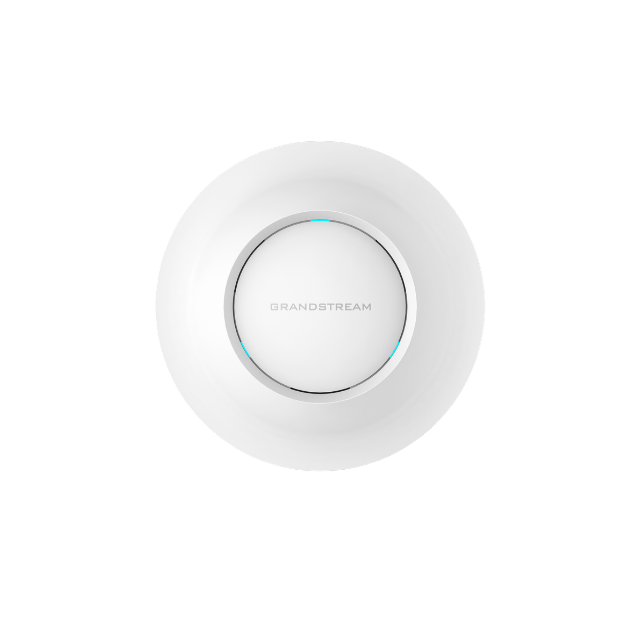

Grandstream GWN7630: High‑Throughput Wi‑Fi 5 Access Point for Busy Indoor Spaces

The Grandstream GWN7630 is a powerful 802.11ac Wave‑2 dual‑band Wi‑Fi access point, engineered to provide maximum network throughput and stable coverage for medium‑to‑high density indoor environments. It is an ideal choice for small to medium sized businesses, multi‑storey offices, commercial locations, branch offices, co‑working spaces, warehouses and hospitality venues that cannot accept network slowdowns.

Blazing Speed & Advanced MU‑MIMO Technology

At the heart of the GWN7630 is 4×4:4 MU‑MIMO on the 5GHz band, which allows the access point to communicate with up to 4 client devices simultaneously. This, combined with 4×4:4 MIMO technology on the 2.4GHz band and beamforming capabilities, delivers a remarkable aggregate wireless throughput of 2.33 Gbps – 600 Mbps on the 2.4GHz band and 1.733 Gbps on the 5GHz band. Parallel data streams dramatically reduce network congestion when connecting 20, 50 or even 100+ clients at once, guaranteeing that every employee, guest and device receives the bandwidth required for fast file transfers, seamless VoIP calls and smooth 4K video streaming.

20, 50, 100 or even 200+ concurrent Wi‑Fi client devices can be supported simultaneously, making the GWN7630 perfectly suited to high‑user‑density work environments. The coverage range extends to 175 metres in open indoor spaces, while advanced QoS ensures that low‑latency applications like real‑time voice, video and collaboration tools always get the bandwidth they need.

Flexible Connectivity with PoE/PoE+ & Gigabit Ports

The GWN7630 includes two auto‑sensing 10/100/1000 Mbps Gigabit Ethernet ports, offering a total wired throughput of 2 Gbps. Both ports support Power over Ethernet (PoE / PoE+) in accordance with IEEE 802.3af/at standards, enabling the access point to receive both data and power from a single Ethernet cable. Maximum power consumption is just 16.5W, but if a PoE switch is not available, an optional 12V DC power adapter (sold separately) can be used. The self‑power adaptation feature upon auto‑detection of PoE or PoE+ simplifies installation and reduces cable clutter.

Enterprise‑Grade Security & Secure Boot

The GWN7630 protects your network infrastructure with multiple layers of enterprise‑grade security. Wireless traffic is safeguarded by WPA3 (Wi‑Fi Protected Access 3), the latest Wi‑Fi security standard. In addition, the device includes anti‑hacking secure boot, digitally signed critical data/control lockdown, a unique security certificate embedded in every unit and a random default password per device. These hardware‑ and software‑based protections prevent unauthorised firmware from loading and block malicious code from compromising your network.

Free Centralised Management (Multi‑Controller)

The GWN7630 offers you total management flexibility at no extra cost. Each access point includes an embedded controller accessible via its web user interface, which can manage up to 50 GWN series access points (across multiple models). For larger or multi‑site deployments, you can upgrade to the free GDMS Networking cloud platform for zero‑touch provisioning, real‑time monitoring and unlimited AP management. Alternatively, GWN Manager provides an on‑premise enterprise‑grade software controller for customers who prefer a local management solution. All three options are completely free of licensing fees.

Robust Feature Set & Easy Indoor Mounting

The GWN7630 supports 32 SSIDs (16 per radio), allowing you to create separate virtual wireless networks for employees, guests, IoT devices and secure traffic. Mesh networking capabilities simplify deployment in locations where cabling is difficult, and advanced features such as airtime fairness, client isolation and band steering are available through the intuitive management interface.

Measuring 205.3 × 205.3 × 45.9 mm and weighing approximately 0.5 kg, the access point is designed for indoor wall or ceiling mounting. A mounting kit (bracket, screws and anchors) is included; detailed installation instructions are available in the user manual, and basic guidance can be found in the Quick Installation Guide.

Key Specifications at a Glance

• Wireless Standard: IEEE 802.11 a/b/g/n/ac (Wave‑2)

• Aggregate Throughput: 2.33 Gbps (2.4GHz: 600 Mbps, 5GHz: 1.733 Gbps)

• MIMO: 2.4GHz: 4×4:4 MIMO, 5GHz: 4×4:4 MU‑MIMO

• Client Capacity: 200+ concurrent devices

• Coverage Range: Up to 175 metres (open indoor area)

• Ethernet Ports: 2 × 10/100/1000 Mbps auto‑sensing (RJ45)

• Power: PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at), max consumption 16.5W

• Security: WPA/WPA2‑PSK, WPA/WPA2‑Enterprise, WPA3

• Management: Embedded controller (50 APs), GDMS Networking, GWN Manager

• Mounting: Indoor wall or ceiling mount

• Dimensions (W × D × H): 205.3 × 205.3 × 45.9 mm

• Operating Temperature: 0 °C to 40 °C

• Certifications: FCC, CE, RCM, IC
