Grandstream GWN7630LR Outdoor Long‑Range Wi‑Fi 5 AP | 4×4 MU‑MIMO & 300m Range

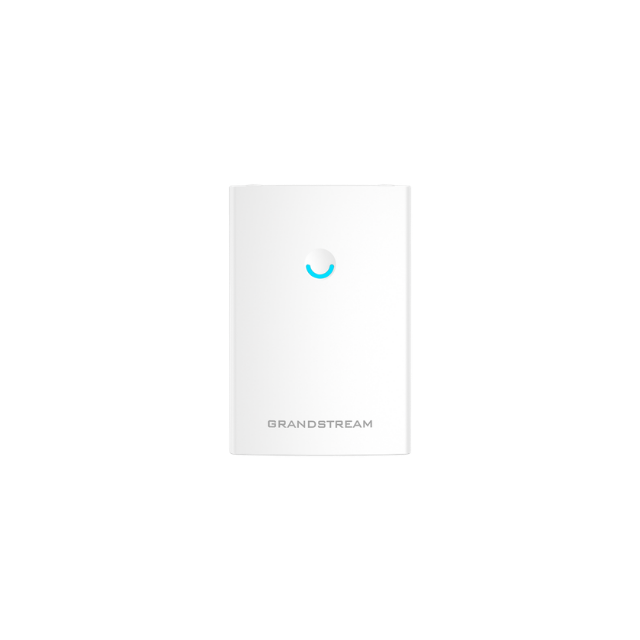

Grandstream GWN7630LR: Long‑Range Outdoor Wi‑Fi 5 Access Point

The Grandstream GWN7630LR is a high‑performance outdoor long‑range access point based on the 802.11ac Wave‑2 (Wi‑Fi 5) standard. It is designed for medium‑to‑large businesses, enterprises, and organisations that need to provide reliable, high‑capacity wireless coverage across large outdoor areas.

Blazing Fast Wi‑Fi 5 Speeds with 4×4 MU‑MIMO

The GWN7630LR leverages dual‑band 4×4:4 MU‑MIMO technology, achieving an aggregate wireless throughput of 2.33 Gbps – up to 600 Mbps on the 2.4 GHz band and up to 1.733 Gbps on the 5 GHz band. This high‑performance combination allows the access point to serve multiple devices simultaneously, dramatically reducing network congestion and ensuring that every user enjoys fast downloads, smooth video streaming, and crystal‑clear VoIP calls.

Extended Coverage & High Client Density

With a coverage range of up to 300 metres in open outdoor spaces, the GWN7630LR is built to cover large campus areas, hotel grounds, industrial yards, and public parks. It supports over 250 concurrent Wi‑Fi client devices, making it an ideal solution for high‑density environments such as university quadrangles, resort poolsides, and outdoor event venues.

Built for Harsh Weather and Extreme Temperatures

The GWN7630LR is engineered to withstand the harshest outdoor conditions. Its IP66‑rated weatherproof casing provides complete protection against dust, powerful water jets, and heavy rain. Additionally, it is designed to operate reliably in extreme temperatures, from -30°C to 60°C, ensuring stable performance year‑round in any climate.

Customisable Antenna Design for Any Scenario

A standout feature of the GWN7630LR is its four detachable/changeable dual‑band omnidirectional antennas (each with a gain of 3.5 dBi). This flexibility allows you to customise the antenna configuration to suit a wide range of application scenarios, from point‑to‑point links to wide‑area omnidirectional coverage.

Flexible Connectivity with PoE/PoE+ & Gigabit Ports

The access point includes two auto‑sensing 10/100/1000 Mbps Gigabit Ethernet ports, providing a total wired throughput of 2 Gbps for connecting to network switches or other devices. It supports Power over Ethernet (PoE/PoE+) (802.3af/at), allowing both data and power to be delivered over a single Ethernet cable. The maximum power consumption is 16.5W, and the device automatically adapts its power upon detection of PoE or PoE+. For installations without a PoE switch, an optional 12V DC power adapter (sold separately) can be used.

Enterprise‑Grade Security & Network Management

The GWN7630LR provides robust, multi‑layered security to protect your network infrastructure. It supports WPA3 (Wi‑Fi Protected Access 3), the latest Wi‑Fi security standard, as well as WPA/WPA2‑PSK and WPA/WPA2‑Enterprise. Device‑level protections include anti‑hacking secure boot, digitally signed critical data/control lockdown, a unique security certificate for each unit, and a random default password per device. These measures prevent unauthorised firmware from loading and block malicious code from compromising your network – critical defences for outdoor‑deployed infrastructure.

Free, Flexible Management & Zero‑Touch Provisioning

The GWN7630LR is supported by Grandstream‘s free, enterprise‑grade management ecosystem. You have the flexibility to choose:

• Built‑in Embedded Controller: Accessible via a web browser, it can manage up to 50 local GWN series access points without any additional hardware or software.

• GDMS Networking: A free cloud platform that provides centralised zero‑touch provisioning, real‑time monitoring, bulk firmware upgrades, and advanced analytics across an unlimited number of access points, from anywhere in the world.

• GWN Manager: A free on‑premise software controller for organisations that prefer to keep management local, offering the same powerful feature set and unlimited capacity.

All these management options are completely free of licensing fees, providing a cost‑effective yet powerful solution for any size of deployment.

Advanced QoS & Mesh Networking

Advanced Quality of Service (QoS) ensures real‑time performance for low‑latency applications such as voice and video. The GWN7630LR also supports mesh networking, making deployment simple in locations where cabling is difficult, and features airtime fairness, client isolation, band steering, and other advanced capabilities.

Technical Specifications at a Glance

• Wi‑Fi Standard: 802.11ac Wave‑2 (Wi‑Fi 5), backward compatible with 802.11a/b/g/n

• Aggregate Throughput: 2.33 Gbps (2.4 GHz: 600 Mbps, 4×4:4 MIMO; 5 GHz: 1.733 Gbps, 4×4:4 MU‑MIMO)

• Client Capacity: 250+ concurrent Wi‑Fi client devices

• Coverage Range: Up to 300 metres (outdoor open area)

• Antennas: 4 detachable/changeable dual‑band omnidirectional antennas (3.5 dBi gain)

• Ethernet Ports: 2 × 10/100/1000 Mbps auto‑sensing (Gigabit) RJ45

• Power: PoE 802.3af/at, max consumption 16.5W; optional 12V DC power adapter (sold separately)

• Ingress Protection: IP66 (dust‑tight, protected against powerful water jets)

• Security: WEP, WPA/WPA2‑PSK, WPA/WPA2‑Enterprise, WPA3

• Management: Embedded controller (up to 50 APs), GDMS Networking (unlimited, cloud), GWN Manager (unlimited, on‑premise)

• SSIDs: 32 total, 16 per radio (2.4 GHz and 5 GHz)

• Operating Temperature: -30°C to 60°C

• Storage Temperature: -30°C to 70°C

• Operating Humidity: 5% – 95% (non‑condensing)

• Dimensions: 533.1 × 115 × 40 mm (approx. 21 × 4.5 × 1.6 in)

• Unit Weight: 0.564 kg (564 g)

• Mounting Type: Wall mount or pole mount (kits included)

• Certifications: FCC, CE, RCM, IC
