Grandstream GWN7660E Enterprise Wi-Fi 6 AP | AX3000 & 256 Clients

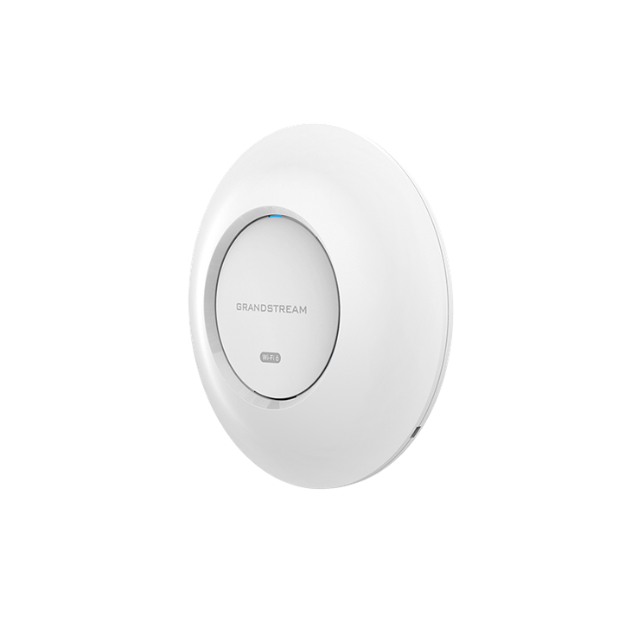

Grandstream GWN7660E: Enterprise-Grade Wi-Fi 6 Access Point for High-Density Environments

The Grandstream GWN7660E is an enterprise-grade 802.11ax access point engineered to deliver the speed, capacity, and reliability modern businesses need. It is the ideal solution for environments with high user density, such as busy corporate offices, university lecture halls, hotel conference centers, and large public venues, where consistent high-performance connectivity is mission-critical.

Blazing Fast AX3000 Speeds

The GWN7660E sets a new standard for wireless performance with a combined 3 Gbps aggregate wireless throughput. Its advanced dual-band configuration provides up to 573.5 Mbps on the 2.4 GHz band (2x2:2 MU-MIMO) and a lightning-fast 2.4 Gbps on the 5 GHz band (3x3:2 MU-MIMO). Paired with OFDMA (Orthogonal Frequency Division Multiple Access) technology, it can efficiently manage simultaneous data streams to many clients, drastically reducing latency and improving network efficiency in crowded environments.

Expanded Coverage & Capacity

Thanks to XTRA Range technology and beamforming, the GWN7660E offers a coverage range of up to 175 meters, ensuring a reliable signal across large floor plans. It can support up to 256 concurrent Wi-Fi client devices, making it a dependable backbone for any high-density wireless network.

Simplified, Secure Installation

Powered by a Gigabit Ethernet port that supports PoE/PoE+ (802.3af/at) , the access point requires only a single cable for both power and data. The clean ceiling or wall-mount design blends seamlessly into professional environments. Maximum power consumption is a low 12.95W and a package weight of just 0.443 kg makes for easy handling and shipping.

Enterprise-Grade Security

Protect your network and data with the GWN7660E's robust security features. It supports the latest WPA3 encryption protocol, as well as WPA2/WPA2-Enterprise. Critical device-level protection includes anti-hacking secure boot, which prevents unauthorised firmware, digitally signed data/control lockdown, a unique security certificate, and a random default password per device.

Flexible & Scalable Management

The GWN7660E offers exceptional management flexibility to suit any deployment size:

• Standalone: Use the intuitive embedded web controller to manage up to 50 GWN APs.

• Cloud: Use GDMS Networking for unlimited management from a single cloud dashboard.

• On-Premise: Use GWN Manager for a private, enterprise‑grade software controller.

Key Features & Specifications

• Wi-Fi Standard: 802.11ax (Wi-Fi 6)

• Throughput: Up to 3 Gbps aggregate (2.4GHz: 573.5 Mbps, 5GHz: 2.4 Gbps)

• Client Devices: Supports up to 256 concurrent devices

• Coverage: Up to 175 meters (with XTRA Range technology)

• Antennas: 5 internal antennas (2 dual‑band, 1 dedicated 5 GHz)

• Network Interface: 1 x 10/100/1000 Gigabit Ethernet port with PoE/PoE+

• Security: WPA3, WPA2/WPA2-Enterprise, anti-hacking secure boot, unique certificate

• Management: Embedded (up to 50 APs), GDMS Networking (unlimited), GWN Manager (on‑premise)

• QoS: Advanced QoS for low‑latency applications (Voice-over-Wi-Fi, video)

• SSIDs: Up to 32 (16 per band)

• Mounting: Ceiling or wall mount (kits included)

• Dimensions: 180.4 mm (W) x 180.4 mm (D) x 40.8 mm (H)

• Weight: 0.443 kg

• Power Consumption: Max 12.95W

• Certifications: FCC, CE, RCM, IC

• Operating Temperature: 0°C to 45°C
