Grandstream GWN7664E AX6000 Wi‑Fi 6 AP | 6 Gbps & 512 Clients

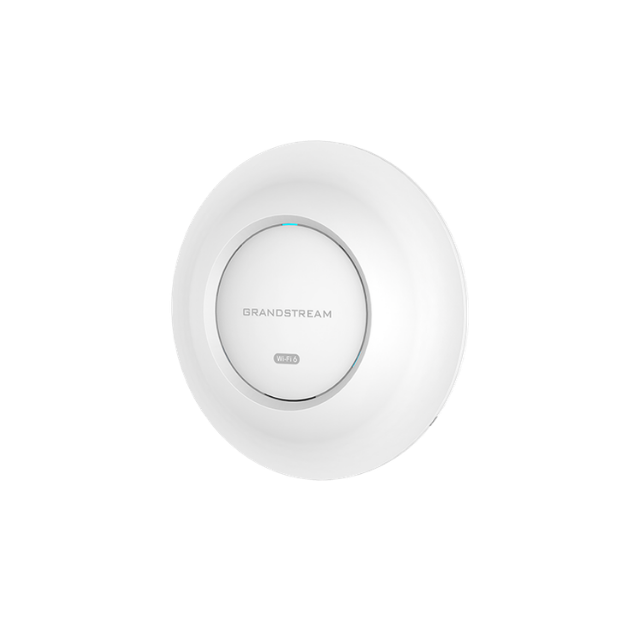

Grandstream GWN7664E: High-Performance AX6000 Wi-Fi 6 Access Point

The Grandstream GWN7664E is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point that redefines network performance. It is the ideal solution for medium-to-large sized businesses, multi-tenant buildings and high‑density environments, where every user expects lag‑free video, smooth VoIP calls and uninterrupted collaboration.

This top‑of‑range indoor AP reaches 6 Gbps aggregate wireless throughput, enough to serve an entire floor of active users. It achieves this through dual‑band 4×4:4 MU‑MIMO and DL/UL OFDMA technology, which allows the access point to efficiently manage dozens of simultaneous devices. HE160 support doubles the standard channel width in the 5 GHz band, providing a significant boost in throughput for modern laptops, tablets and other Wi‑Fi 6‑capable devices.

Unmatched Capacity for High‑Density Deployments

With support for up to 512 concurrent Wi‑Fi client devices, the GWN7664E is purpose‑built for open offices, conference centres, university lecture halls and busy retail spaces. Its 175‑meter coverage range ensures reliable connectivity across large indoor areas, while beamforming technology focuses radio signals directly towards each client, improving link quality.

The device includes 2x 2.5 Gigabit Ethernet ports, offering a total 5 Gbps aggregate wired throughput. This multi‑gig wired backhaul ensures that your wireless speeds are never hampered by a bottlenecked uplink. The ports support both LAN and WAN configurations, giving you flexibility in network design.

Security and Zero‑Touch Management

The GWN7664E includes enterprise‑grade security with WPA3 encryption, anti‑hacking secure boot, digitally signed critical data/control lockdown, a unique security certificate and a random default password per device. This layered approach protects both your network traffic and the access point itself from compromise.

Management is fully flexible and free:

• Embedded Controller: Built into the AP, it handles up to 50 local GWN APs without any additional hardware or licensing.

• GDMS Networking: Free cloud platform for zero‑touch provisioning, real‑time monitoring, bulk firmware upgrades and analytics across an unlimited number of APs.

• GWN Manager: Free on‑premise software controller for organisations that prefer local management.

Advanced QoS prioritises low‑latency real‑time applications such as voice‑over‑Wi‑Fi, video conferencing and collaboration tools, ensuring that critical traffic always has the bandwidth it needs.

Key Features & Specifications at a Glance

• Standard: 802.11ax (Wi‑Fi 6), backward compatible with a/b/g/n/ac.

• Aggregate Throughput: 6 Gbps (2.4GHz: 1.147 Gbps, 5GHz: 4.8 Gbps).

• MIMO: 4×4:4 MU‑MIMO on both bands, with DL/UL OFDMA.

• Client Capacity: 512 concurrent devices.

• Coverage Range: Up to 175 metres.

• Antennas: 8 internal antennas (2.4GHz gain 3.5 dBi, 5GHz gain 4.5 dBi).

• Ethernet: 2× 10/100/1000/2500 Mbps (2.5 Gigabit) auto‑sensing ports.

• Power: PoE+ (802.3at), max consumption 21W.

• Security: WPA3, WPA2‑Enterprise, secure boot, unique certificate, random default password.

• Management: Embedded (50 APs), GDMS Networking (unlimited, cloud), GWN Manager (unlimited, on‑premise).

• SSIDs: Up to 32 (16 per band).

• Dimensions: 205.3×205.3×45.9 mm.

• Weight: 0.714 kg (approx). Package weight 1.06 kg.

• Mounting: Indoor wall mounting or ceiling mount (kits included). Both mounting kits support a tool‑free “twist‑lock” installation; the ceiling mounting bracket is recommended for optimal performance in high‑ceiling deployments.

• Warranty: Grandstream 1‑year limited warranty.
