Grandstream GWN7670 Wi-Fi 7 AP | 3.6 Gbps, 2.5G Ports & 256 Clients

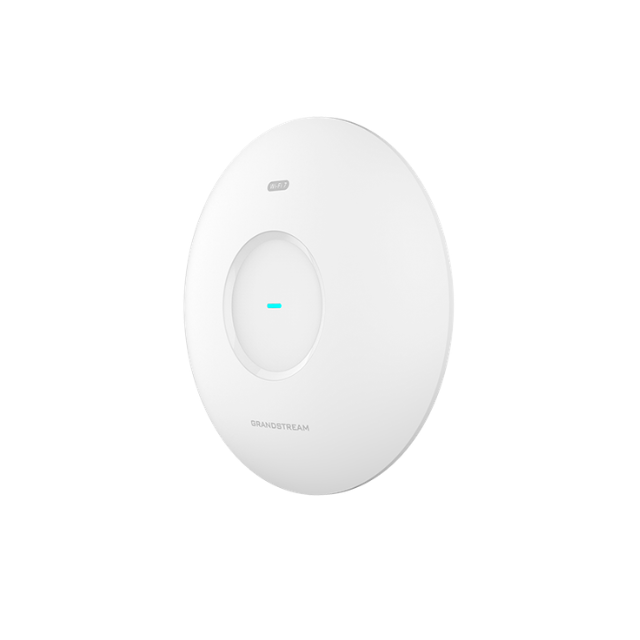

Grandstream GWN7670: The Future of Wireless – Enterprise Wi‑Fi 7 Access Point

The Grandstream GWN7670 ushers in a new era of wireless connectivity, bringing the revolutionary speed, capacity, and efficiency of Wi‑Fi 7 (802.11be) to small‑to‑medium businesses. Designed for medium‑density environments such as modern offices, upscale retail spaces, boutique hotels, and co‑working hubs, it delivers an unprecedented user experience.

Blazing Fast Wi‑Fi 7 Performance

Built on the latest Wi‑Fi 7 standard, the GWN7670 provides twice the channel size of Wi‑Fi 6, enabling maximum speeds and capacity. Its 3.6 Gbps aggregate wireless throughput (688 Mbps on 2.4 GHz, 2,882 Mbps on 5 GHz) is powered by 2×2:2 MIMO and incorporates cutting‑edge technologies:

• MLO (Multi‑Link Operation) – Combines multiple frequency bands for higher throughput and lower latency.

• 4K‑QAM – Packs 20% more data than 1024‑QAM, boosting peak rates.

• MRU (Multiple Resource Unit) – Improves spectrum efficiency.

• Preamble Puncturing – Reduces interference and enhances reliability.

Unmatched Wired Speeds & Flexibility

The GWN7670 comes equipped with two 2.5 Gigabit Ethernet ports (auto‑sensing 10/100/1000/2500 Mbps), delivering an aggregate wired throughput of up to 5 Gbps. These ports can be configured for WAN/LAN, offering flexible deployment options. The device is powered via PoE+ (802.3af/at) with a maximum consumption of only 14.5W, simplifying installation with a single cable.

Extended Coverage & High Density

With a coverage range of up to 175 meters (depending on environment) and support for 256 concurrent Wi‑Fi client devices, the GWN7670 handles medium‑user density scenarios with ease. Its five single‑frequency internal antennas (optimised for each band) and advanced beamforming ensure reliable signal strength across large areas.

Advanced QoS for Real‑Time Applications

The GWN7670 features advanced Quality of Service (QoS) that prioritises low‑latency applications such as VoIP calls, video conferencing, and cloud collaboration tools – critical for businesses relying on seamless communication.

Enterprise‑Grade Security

Protect your network with the latest WPA3 encryption, along with WPA2/WPA2‑Enterprise. Device‑level security includes anti‑hacking secure boot, digitally signed critical data/control lockdown, a unique security certificate per unit, and a random default password – all designed to prevent unauthorised access and firmware tampering.

Free & Flexible Management

The GWN7670 offers three powerful management options at no extra cost:

• Embedded Controller – Built into the AP, manages up to 50 local GWN series APs.

• GDMS Networking – Free cloud platform for unlimited AP management, zero‑touch provisioning, and remote monitoring.

• GWN Manager – On‑premise software controller for large‑scale private deployments.

Key Features & Specifications

• Wi‑Fi Standard: 802.11be (Wi‑Fi 7), backward compatible with a/b/g/n/ac/ax

• Wireless Throughput: 3.6 Gbps aggregate (2.4G: 688 Mbps; 5G: 2,882 Mbps)

• Wired Throughput: 5 Gbps aggregate via 2x 2.5G Ethernet ports

• Client Devices: Supports up to 256 concurrent Wi‑Fi clients

• Coverage Range: Up to 175 metres (varies by environment)

• Antennas: 5 single‑frequency internal antennas

• MIMO: 2×2:2 on both 2.4 GHz and 5 GHz bands

• Wi‑Fi 7 Features: MLO, 4K‑QAM, MRU, Preamble Puncturing

• Power: PoE+ (802.3af/at), max consumption 14.5W

• SSIDs: Up to 32 (16 per radio)

• Security: WPA3, WPA2/WPA2‑Enterprise, WEP, anti‑hacking secure boot, unique certificate

• Management: Embedded controller (50 APs), GDMS Networking (unlimited), GWN Manager

• Mounting: Ceiling or wall mount (kits included)

• Dimensions: 185 mm × 185 mm × 44.5 mm

• Weight: Not specified in provided data; estimated ~0.5 kg (based on similar models)

• Operating Temperature: 0 °C to 40 °C (typical indoor)

• Operating Humidity: 10% to 90% (non‑condensing)
