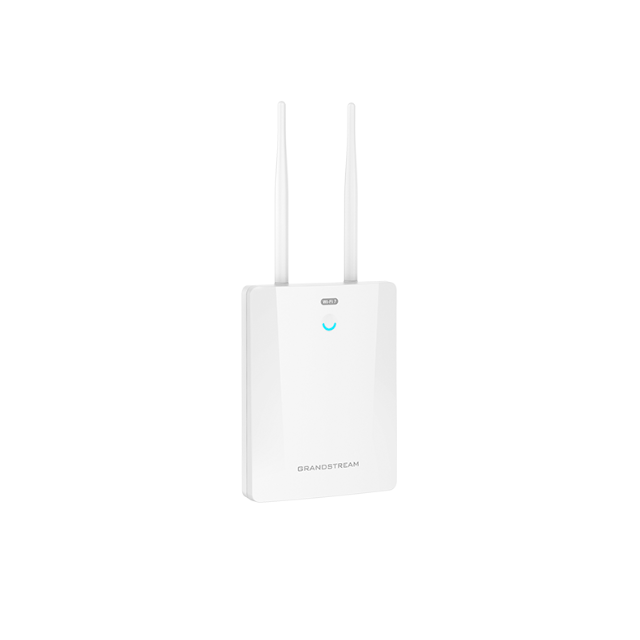

Grandstream GWN7670LR Outdoor Wi‑Fi 7 AP | 3.6 Gbps, 350m Range, SFP

Grandstream GWN7670LR: Long‑Range Outdoor Wi‑Fi 7 Access Point for Maximum Coverage

The Grandstream GWN7670LR is a next‑generation outdoor Wi‑Fi 7 (802.11be) access point engineered to deliver ultra‑fast, reliable wireless connectivity across large outdoor areas. It is the ideal solution for university campuses, resort grounds, industrial complexes, public parks, and large residential compounds in Pakistan.

Blazing Wi‑Fi 7 Speeds & Advanced Technologies

Built on the latest 802.11be standard, the GWN7670LR provides a 3.6 Gbps aggregate wireless throughput (688 Mbps on 2.4 GHz, 2,882 Mbps on 5 GHz) with 2×2:2 MIMO and DL/UL OFDMA for efficient multi‑user handling. It leverages Wi‑Fi 7 features like Multi‑Link Operation (MLO), 4K‑QAM, MRU, and Preamble Puncturing to deliver twice the channel bandwidth of Wi‑Fi 6, drastically reducing latency and improving capacity.

Unmatched Wired Flexibility with SFP

The GWN7670LR includes a 2.5 Gigabit Ethernet RJ‑45 port and a 2.5 Gigabit SFP port, offering a combined 5 Gbps aggregate wired throughput. The SFP port allows fibre connectivity for long‑distance backhaul, eliminating signal loss over extended cable runs – perfect for large outdoor deployments.

Extended 350‑Metre Coverage

With a range of up to 350 metres (line‑of‑sight) and a robust IP66‑rated weatherproof enclosure, the GWN7670LR can be mounted on walls or poles, surviving dust, rain, and extreme temperatures. Its high‑gain directional internal antennas (2.4G: up to 8 dBi; 5G: up to 13.5 dBi) ensure strong signal penetration across wide‑open spaces.

High‑Density Client Support

The access point supports 256 concurrent Wi‑Fi client devices, making it well‑suited for medium‑to‑high user density environments. Advanced QoS prioritises low‑latency applications such as VoIP, video surveillance, and real‑time control systems.

Enterprise‑Grade Security

The GWN7670LR provides comprehensive security: WPA3 (personal/enterprise), WPA2, OSEN, MAC filtering, client isolation, rogue AP detection and containment, ARP/ND attack defense, and inbound/outbound traffic rules. Device‑level protections include anti‑hacking secure boot, digitally signed firmware, unique certificate, and random default password.

Flexible & Free Management

The AP includes an embedded controller that manages up to 50 local GWN APs. For unlimited, remote management, use the free GDMS Networking cloud platform or the on‑premise GWN Manager software.

Key Features & Specifications

• Wi‑Fi Standard: 802.11be (Wi‑Fi 7), backward compatible with a/b/g/n/ac/ax

• Wireless Throughput: 3.6 Gbps aggregate (2.4G: 688 Mbps; 5G: 2,882 Mbps)

• Wired Ports: 1x 2.5G Ethernet (RJ‑45, PoE+ input) + 1x 2.5G SFP

• Coverage Range: Up to 350 metres (outdoor line‑of‑sight)

• Concurrent Clients: 256

• Antennas: Internal directional + external omni options (2.4G: 8 dBi directional / 3.5 dBi omni; 5G: 13.5 dBi directional / 3.5 dBi omni)

• MIMO: 2×2:2 on both 2.4 GHz and 5 GHz

• Power: PoE+ (802.3at), max consumption 15.5W

• SSIDs: Up to 32 (16 per radio)

• Security: WPA3, WPA2‑Enterprise, OSEN, secure boot, rogue AP detection, ARP/ND defence

• Management: Embedded controller (50 APs), GDMS Networking, GWN Manager

• Mounting: Wall or pole mount (kits included)

• Dimensions: 223.2 mm × 169.9 mm × 53.9 mm

• Weight: (exact not provided; estimated ~1.0‑1.2 kg based on outdoor models)

• Weatherproof: IP66

• Operating Temperature: -30°C to 60°C
