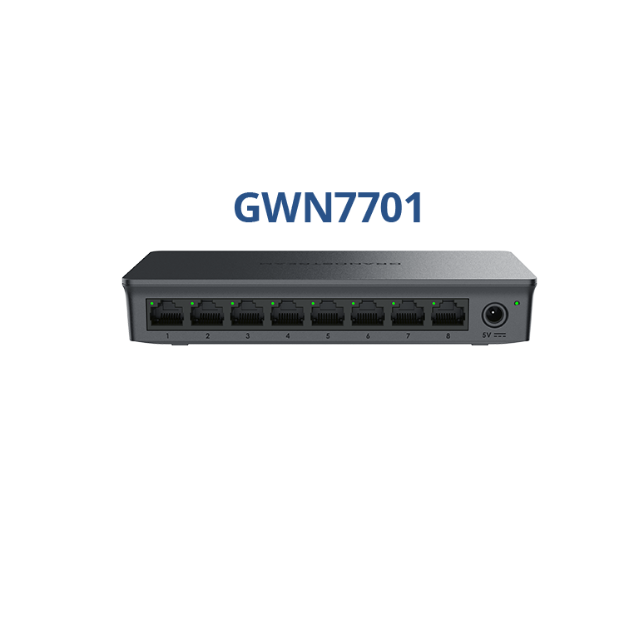

Grandstream GWN7701 8-Port Gigabit Unmanaged Switch | Plug-and-Play Desktop Switch
Grandstream GWN7701: Simple, Reliable Gigabit Expansion
The Grandstream GWN7701 is an unmanaged network switch that instantly provides eight Gigabit Ethernet ports for connecting computers, printers, IP cameras, access points, and other devices. It’s designed for users who need to expand their network without the complexity of managed switches.
Plug‑and‑Play Simplicity
No configuration, no software, and no IP addresses to manage. Simply connect the included power adapter, plug in your devices, and the switch automatically negotiates the optimum speed (10/100/1000 Mbps) and duplex mode for each connected device. The Auto MDI/MDIX feature automatically detects the cable type (straight‑through or crossover) on every port, eliminating the need for specialised crossover cables.
High‑Performance Switching
At its core, the GWN7701 delivers a non‑blocking 16Gbps switching capacity — enough bandwidth to handle simultaneous full‑speed traffic on all eight ports. The 9KB jumbo frame support improves throughput for large file transfers, and the 8K MAC address table ensures smooth communication in networks with many connected devices. IEEE 802.3x flow control prevents packet loss when the switch becomes congested.
Intelligent Traffic Management
Although unmanaged, the GWN7701 includes several features to keep your network running smoothly:
-
Broadcast/Multicast/Unicast Storm Control — Fixed at 100 Mbps, it monitors traffic levels and prevents broadcast storms from disrupting your network.
-
802.1p/DSCP QoS — Supports Default Strict Priority for time‑sensitive traffic like VoIP calls and video conferencing.
-
IGMP Snooping — With Fast‑Leave and route port auto‑learning, it optimises multicast traffic (e.g., IPTV) by ensuring streams are sent only to interested ports, rather than flooding all ports.
Energy‑Efficient & Silent
The GWN7701 incorporates Green Ethernet technology, which automatically reduces power consumption based on cable length and link status. With a maximum power consumption of just 2.7W, it operates silently (fanless design) — perfect for open offices, shared workspaces, and home environments
Technical Specifications
Frequently Asked Questions
Q1: How many devices can I connect to the Grandstream GWN7701? +
You can connect up to 8 wired devices (computers, printers, IP cameras, VoIP phones, access points, etc.) directly to the switch. The 8K MAC address table allows the switch to recognise thousands of devices across your network, but direct connections are limited to the physical ports.
Q2: Does the GWN7701 work with Pakistan’s 220V power supply? +
Yes. The switch comes with a universal power adapter that accepts 100‑240VAC, 50‑60Hz input, which works seamlessly on Pakistan’s standard 220V/50Hz grid. The adapter outputs 5V DC, 0.6A. Maximum power consumption is just 2.7W
Q3: Does the GWN7701 support Power over Ethernet (PoE)? +
No, the GWN7701 is the non‑PoE version. If you need to power devices like IP cameras, VoIP phones, or access points directly from the switch, consider the GWN7701P or GWN7701PA models. This listing is for the standard non‑PoE switch
Q4: What’s the difference between the GWN7701 and the metal‑cased PoE models? +
The GWN7701 has a plastic enclosure, no PoE, and suits basic office/ home network expansion. The PoE models (GWN7700P, GWN7701P, GWN7701PA) feature metal chassis and provide IEEE 802.3af/at PoE output to power networked devices directly
