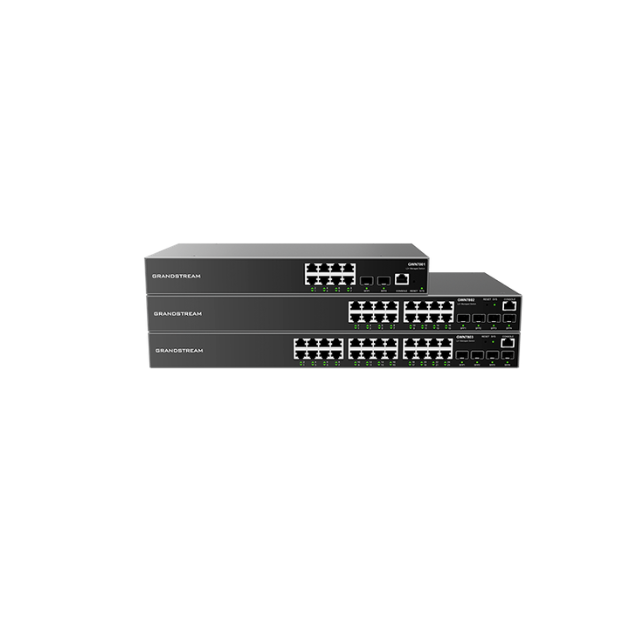

Grandstream GWN7801 8-Port Gigabit L2+ Managed Switch with 2 SFP
Grandstream GWN7801: A Layer 2+ Managed Switch for Growing Businesses
The Grandstream GWN7801 is a high-performance, yet cost-effective, managed switch built for small to medium-sized businesses (SMBs) in Pakistan that require more than simple connectivity. Whether you’re deploying VoIP phones, a high-density Wi-Fi network, or an IP surveillance system, the GWN7801 delivers the control, performance, and security needed to keep your critical operations running smoothly.
Intelligent Management for Reliable Operations
Unlike plug-and-play switches, the GWN7801 gives you complete visibility and control over your network. Its user-friendly interface supports port mirroring, link aggregation, and VLAN configurations to segment traffic for enhanced security and efficiency. You can prioritise bandwidth for vital applications like VoIP and video conferencing using comprehensive QoS policies based on 802.1p or DSCP.
Advanced Security for Peace of Mind
The GWN7801 integrates enterprise-grade security features to protect your network from internal and external threats. It supports 802.1X port-based authentication, DHCP Snooping, Dynamic ARP Inspection (DAI), and IP Source Guard to prevent common attacks. Additionally, features like port isolation, ACLs, and DoS attack prevention help secure your network infrastructure.
Flexible & Free Management Ecosystem
The GWN7801 is designed for seamless integration into any network. It features an embedded controller for local management and is fully compatible with Grandstream‘s free GDMS Networking cloud platform and GWN Manager on-premise software, allowing you to centrally manage switches, routers, and Wi-Fi access points from a single pane of glass.
Key Features & Specifications at a Glance
-
8 Gigabit Ethernet ports and 2 Gigabit SFP ports.
-
Layer 2+ features: 4K VLANs, Voice VLAN, QinQ, 8 link aggregation groups, STP/RSTP/MSTP.
-
20 Gbps Switching capacity and 14.88 Mpps forwarding rate.
-
Comprehensive security: 802.1X, RADIUS/TACACS+, DHCP Snooping, IP Source Guard, DoS prevention, port security.
-
Advanced QoS: Supports 8 priority queues per port with SP, WRR, and SP+WRR scheduling.
-
Robust management: HTTP/HTTPS, SSH, Telnet, SNMP v1/v2c/v3, RMON.
-
Layer 3 features: Static routing, 16 VLAN virtual interfaces.
-
Fanless design for silent operation (depending on model/power configuration).
Technical Specifications
Frequently Asked Questions
Q1: Who is the Grandstream GWN7801 switch for? +
It is designed for small to medium-sized businesses (SMBs) in Pakistan that need a more secure, reliable, and high-performance network than what an unmanaged switch can provide. It's ideal for offices with multiple VoIP phones, IP cameras, or a growing number of connected users.
Q2: What is the difference between the GWN7801 and a standard unmanaged switch? +
A standard unmanaged switch offers basic "plug-and-play" connectivity. In contrast, the GWN7801 is a Layer 2+ managed switch, giving you powerful tools for network management, including bandwidth control (QoS), VLANs for network segmentation, advanced security features, and centralised management, all resulting in a more stable and secure network.
Q3: How many devices can I connect to the GWN7801, and how does it handle traffic? +
You can directly connect up to 8 wired devices (computers, printers, access points, etc.), and the 2 SFP ports allow for fibre uplinks to other switches. Its 20 Gbps non-blocking switching fabric ensures that data can be transmitted on all ports simultaneously without slowdown, which is a trade-off with cheaper switches.
Q4: Is the Grandstream GWN7801 difficult to set up for someone without IT training? +
No. The switch has a user-friendly web interface for basic setup. For advanced features like VLANs or specific security policies, some networking knowledge is recommended. For larger and more complex deployments, you can utilise GDMS Networking, Grandstream's free cloud management platform, to manage it centrally without needing to configure each switch individually.
