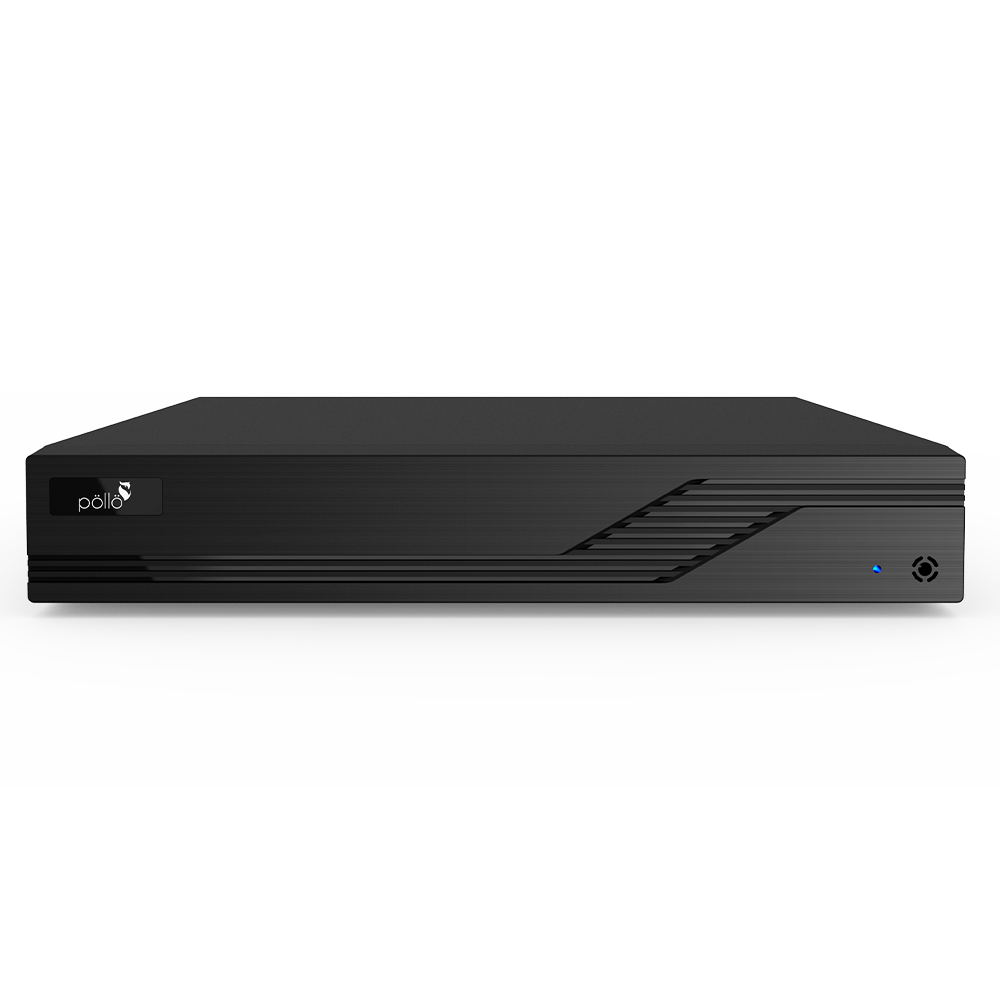

PLC-1204H1/PM 2MP 04 Channel XVR | 2MP FHD Supported XVR | TVI/AHD/DVR/IP | H.264/H.265 | 1 SATA Interface Up to 8TB

PLC-1204H1/PM
2MP 04 CHANNEL XVR
04 channel Input
2MP FHD Supported XVR
TVI/AHD/DVR/IP
2 Channel up-to 2MP@30fps
264/H.265
1 Channel Audio Input/Output
IP Cameras Supported
1 SATA Interface Up-to 8TB
Specifications
Downloads
Model No. PLC-1204H1/PM
System Embedded Linux
Analog Video Input BNC × 4, BNC interface (1.0Vp-p; 75Ω), TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/WD1
IP Video Input 2CH, up to 2MP@30fps
Total Input 6CH
Video Output HDMI × 1 :1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
Video Compression H.264/H.265
Multi-screen Display 1/4/6/9
Audio Input RCA ×1
Audio Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Audio Compression G.711(U/A)
Recording Resolution 1080P Lite/ 720P/ 720P Lite/WD1
Recording Frame Rate Analog Channel: 4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support) 720P Lite: 25fps(PAL) / 30fps (NTSC) IP Channel: 25fps(PAL) / 30fps (NTSC)
Recording Bit Rate 32Kbps ~ 4Mbps
Playback 4 CH
Playback Search Time slice / time / event / tag search
Play back Smart Search Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Play back Function Play, pause, FF, FB, digital zoom, etc.
Alarm Mode Manual, motion, exception, smart event
Alarm Input No
Alarm Output No
Network Interface RJ 45 100Mbps × 1
Network Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 10Mbps
Outgoing Bandwidth 30Mbps
Client Connection Max. 5 users' access
Mobile Device OS iOS, Android
Storage HDD SATA× 1, up to 8TB
Local Backup U disk, USB mobile HDD
Network Backup Yes
RS 485 No
USB USB 2.0 × 2
Remote Controller No
Power Supply DC12V / 1.5A
Consumption ≤ 5W (without HDD)
Dimensions(mm) 255 × 222 × 42 (W × D × H)
Working Environment 10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environment Protection Directive EU RoHS, WEEE, REACH

PLC-1204H1/PM 2MP 04 Channel XVR with 04 channel input, 2MP FHD supported, TVI/AHD/DVR/IP, 2 Channel up to 2MP@30fps, H.264/H.265, 1 Channel Audio Input/Output, IP Cameras Supported, 1 SATA Interface up to 8TB.
