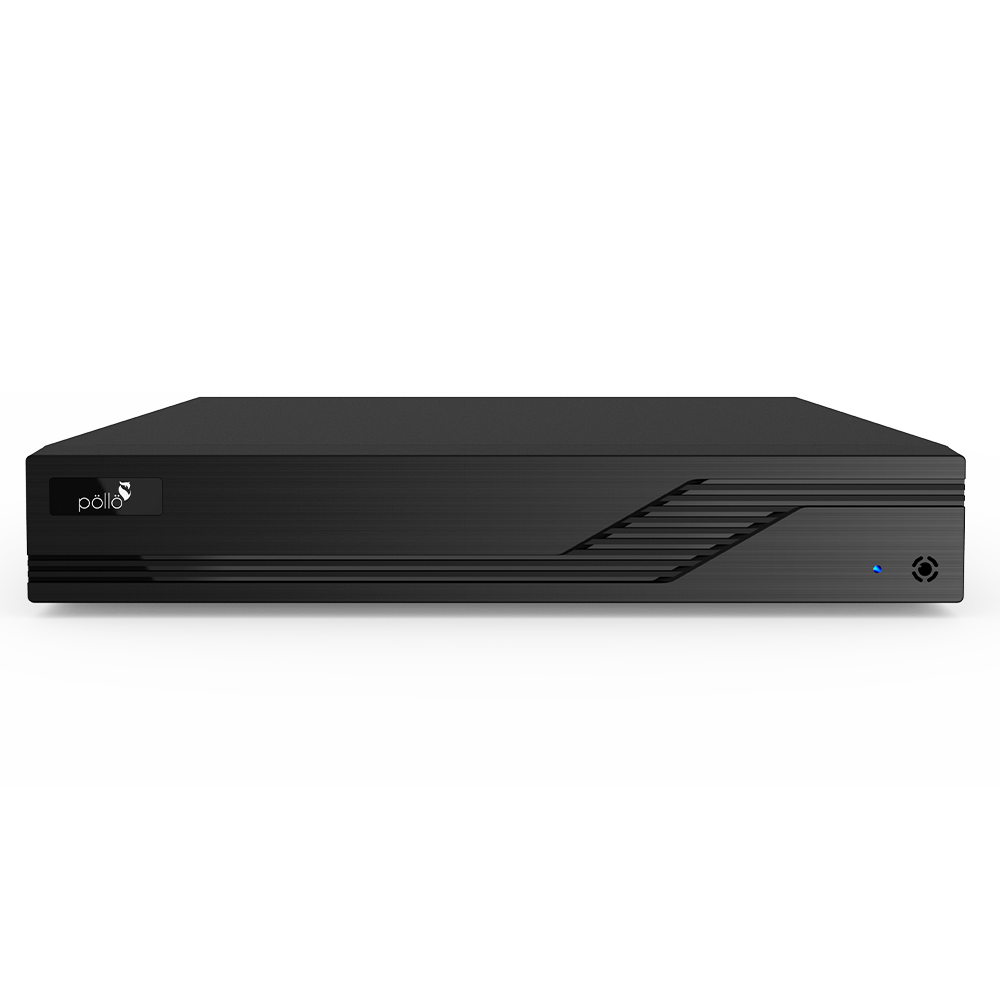

PLC-1216H1/PM
2MP 16 CHANNEL XVR
16 channel Input
2MP FHD Supported XVR
TVI/AHD/DVR/IP
2 Channel IP 5MP/4MP/3MP/2MP
264/H.265+
1 Channel Audio Input/Output
IP Cameras Supported
1 SATA Interface Up-to 8TB
Outgoing Bandwidth 80 Mbps
Specifications
Downloads
Model No. PLC-1216H1/PM
System Embedded Linux
Analog Video Input BNC × 16, BNC interface (1.0Vp-p; 75Ω), TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/WD1
IP Video Input 2CH, up to 5MP@25fps
Total Input 18CH
Video Output HDMI × 1 :1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS (used as the main or spot output)
Video Compression H.264/H.265/H.265+
Multi-screen Display 1/4/6/8/9/13/16/25
Audio Input RCA ×1
Audio Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Audio Compression G.711(U/A)
Recording Resolution 1080P Lite/ 720P/ 720P Lite/WD1
Recording Frame Rate Analog Channel: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) (only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) (other channels support) 720P Lite: 25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC)
Recording Bit Rate 32Kbps ~ 4Mbps
Playback 16CH
Playback Search Time slice / time / event / tag search
Play back Smart Search Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Play back Function Play, pause, FF, FB, digital zoom, etcPlay, pause, FF, FB, digital zoom, etc.
Alarm Mode Manual, motion, exception, smart event
Alarm Input No
Alarm Output No
Network Interface RJ 45 100Mbps × 1
Network Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 16Mbps
Outgoing Bandwidth 80Mbps
Client Connection Max.10 users' access
Mobile Device OS iOS, Android
Storage HDD SATA× 1, up to 8TB
Local Backup U disk, USB mobile HDD
Network Backup Yes
RS 485 No
USB USB 2.0 × 2
Remote Controller Optional
Power Supply DC12V /2A
Consumption ≤ 10W (without HDD)
Dimensions(mm) 255 × 222 × 42 (W × D × H)
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environment Protection Directive EU RoHS, WEEE, REACHPLC-1216H1/PM 2MP 16 Channel XVR with 16 channel input, 2MP FHD supported, TVI/AHD/DVR/IP, 2 Channel IP 5MP/4MP/3MP/2MP, H.264/H.265/H.265+, 1 Channel Audio Input/Output, IP Cameras Supported, 1 SATA Interface up to 8TB, Outgoing Bandwidth 80 Mbps.PLC-1216H1/PM 2MP 16 Channel XVR. Features 16 channel input, 2MP FHD support, TVI/AHD/DVR/IP, H.264/H.265/H.265+, 1 SATA up to 8TB, 2 IP channels up to 5MP@25fps, 80 Mbps outgoing bandwidth. View specifications.PLC-1216H1/PM, 2MP 16 CHANNEL XVR, 16 channel Input, 2MP FHD Supported XVR, TVI/AHD/DVR/IP, 2 Channel IP 5MP/4MP/3MP/2MP, 264/H.265+, 1 Channel Audio Input/Output, IP Cameras Supported, 1 SATA Interface Up-to 8TB, Outgoing Bandwidth 80 Mbps, Embedded Linux, BNC × 16, 1080P, 1080P Lite, 720P, 720P Lite, WD1, 2CH IP Video Input up to 5MP@25fps, 18CH Total Input, HDMI, VGA, BNC CVBS, H.264, H.265, H.265+, Multi-screen Display 1/4/6/8/9/13/16/25, RCA Audio Input, RCA Audio Output, Two-way audio, G.711(U/A), 32Kbps ~ 4Mbps, 16CH Playback, Playback Search, Play back Smart Search, Alarm Mode Manual/motion/exception/smart event, RJ45 100Mbps, TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP, Incoming Bandwidth 16Mbps, Outgoing Bandwidth 80Mbps, Max 10 users access, iOS, Android, SATA × 1 up to 8TB, U disk backup, USB mobile HDD, USB 2.0 × 2, Remote Controller Optional, DC12V /2A, ≤10W without HDD, 255×222×42mm, -10~50°C, CE, FCC, EU RoHS, WEEE, REACH
