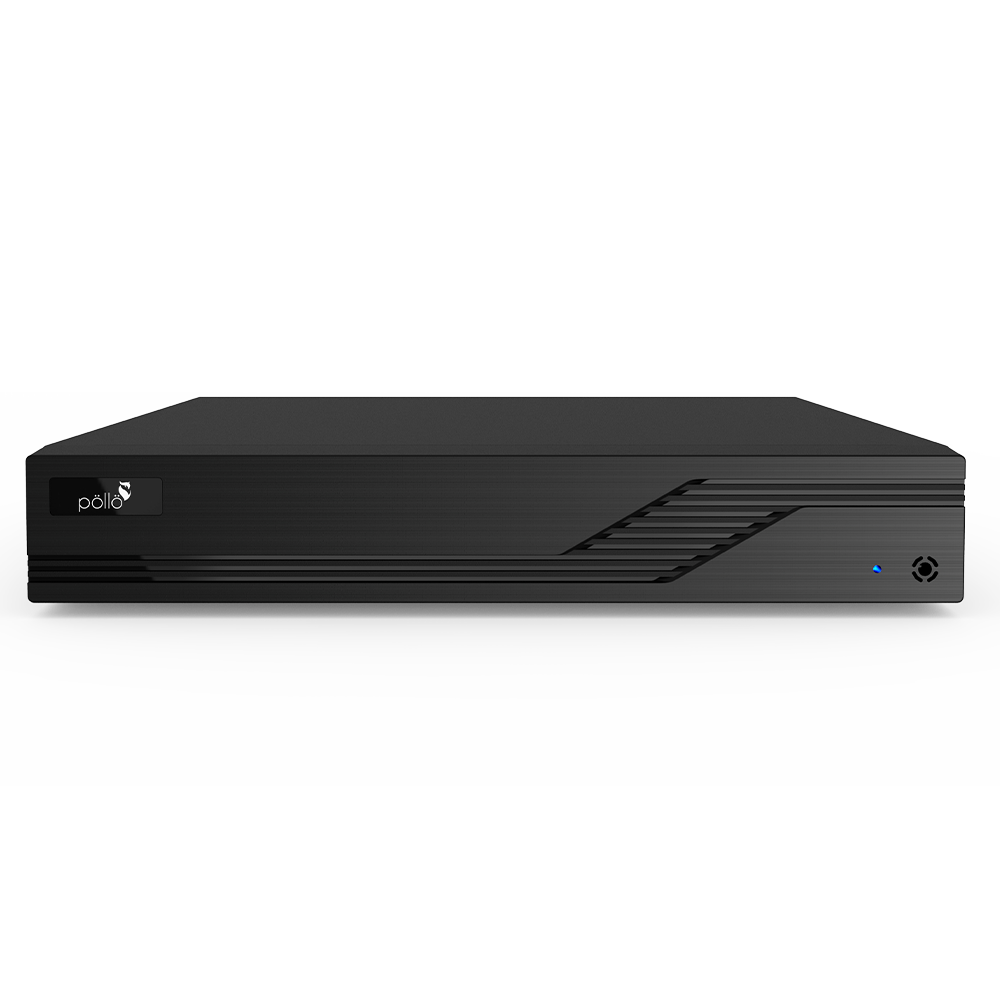

PLC-1504H1/PM 5MP 04 Channel XVR | 4 Channel Input | 5MP FHD Supported XVR | TVI/AHD/DVR/IP | H.264/H.265 | 1 SATA Interface Up to 10TB | Outgoing Bandwidth 40 Mbps

PLC-1504H1/PM
5MP 04 CHANNEL XVR
4 Channel Input
5MP FHD Supported XVR
TVI/AHD/DVR/IP
2 Channel IP 5MP@25fps
264/H.265
1 Channel Audio Input/Output
IP Cameras Supported
1 SATA Interface Up-to 10TB Per Interface
Outgoing Bandwidth 40 Mbps
Specifications
Downloads
Model No. PLC-1504H1/PM
System Embedded Linux
Analog Video Input BNC × 4, BNC interface (1.0Vp-p; 75Ω), TVI/ AHD/CVI: 5MP/ 4MP/ 1080P/ 720P/WD1
IP Video Input 2CH, up to 5MP@25fps
Total Input 6CH
Video Output HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS (used as the main or spot output)
Video Compression H.264/H.265
Multi-screen Display 1/4/6/9
Audio Input RCA ×1
Audio Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Audio Compression G.711(U/A)
Recording Resolution 5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/WD1
Recording Frame Rate Analog Channel: 5MP Lite :10fps; 4MP Lite/1080P: 12fps (PAL)/15fps (NTSC); 1080P Lite/ 720P/WD1: 25fps (PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC)
Recording Bit Rate 32Kbps ~ 4Mbps
Recording Mode Manual, timer, motion, smart event
Playback 4 CH
Playback Search Time slice / time / event / tag search
Play back Smart Search Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Play back Function Play, pause, FF, FB, digital zoom, etc
Alarm Mode Manual, motion, exception, smart event
Alarm Input No
Alarm Output No
Network Interface RJ 45 100Mbps × 1
Network Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 16Mbps
Outgoing Bandwidth 40Mbps
Client Connection Max. 5 users' access
Mobile Device OS iOS, Android
Storage HDD SATA× 1, up to 10TB
Local Backup U disk, USB mobile HDD
Network Backup Yes
RS 485 RS 485 × 1 (half-duplex)
USB USB 2.0 × 2
Remote Controller Optional
Power Supply DC12V / 1.5A
Consumption ≤5W (without HDD)
Dimensions(mm) 255 × 222 × 42 (W × D × H)
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
