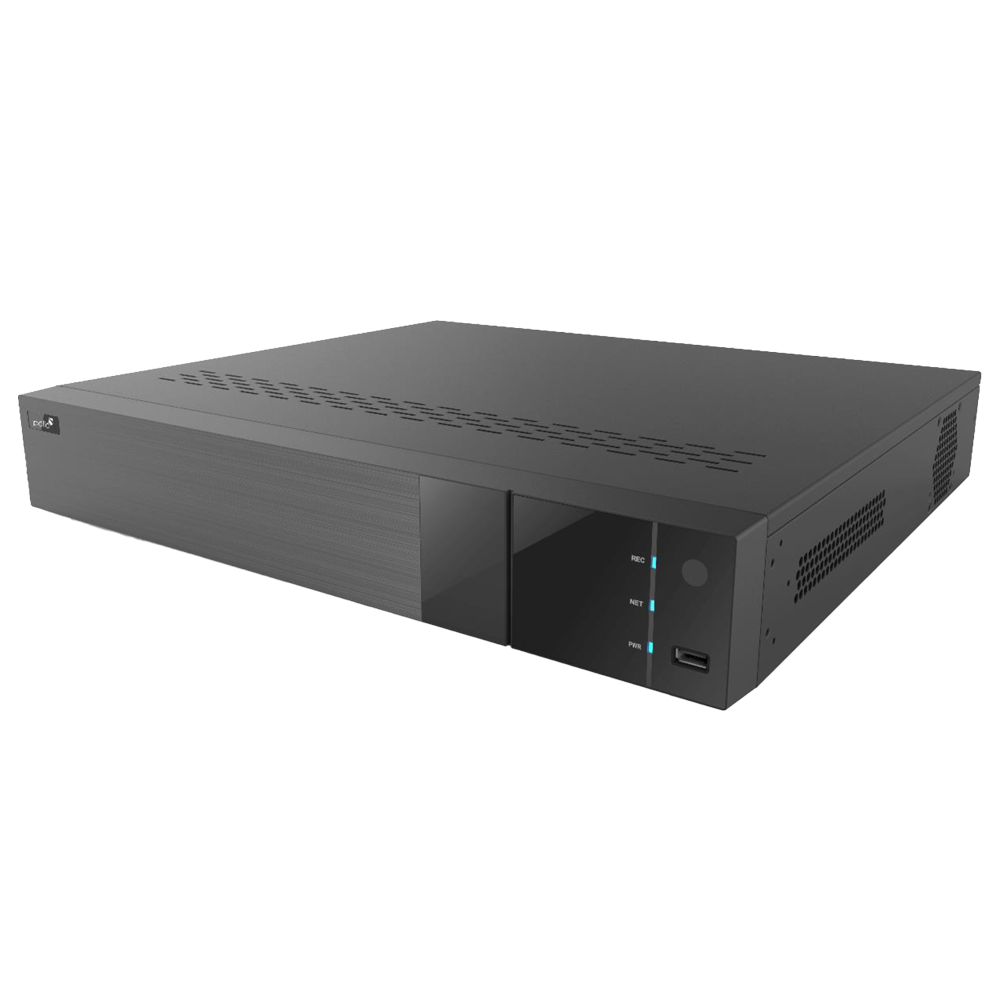

PLC-1532H4/PM 32 Channel DVR | H.265/H.265+ Compression | 16CH Playback | 4 SATA Up to 10TB Each | Outgoing Bandwidth 160 Mbps
PLC-1532H4/PM
32 CHANNEL DVR
32 CH TVI / AHD/CVI 5MP/ 4MP/ 3MP / 1080P / 720P / WD1 video input
32 CH DVRs support 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
16CH Analog video input can be switched to 16CH IP video input
Adopt standard H.265 high-profile compression format to get high-quality video at much
lower bit rate
Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
Multi-type recording: manual / timed / sensor/motion/AI recording
Playback: 16 CH simultaneously playback
Search: time slice, time, event, tag and smart search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
Specifications
Downloads
Model PLC-1532H4/PM
System OS Embedded Linux
Analog Video Input BNC × 32 BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI : 5MP@20fps; 4MP/3MP/1080P/720P/WD1@25fps/30fps (live)
IP Video Input 8CH (up to 24CH) Up to 5MP@30fps
Total Input 40CH
Output HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output )
Video Compression H.264/H.265/H.265+
Multi-screen Display 1/4/6/8/9/13/16/25/32/36
Audio Input RCA × 16
Audio Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1
Frame Rate Analog Channel: 5MP Lite@10fps (PAL / NTSC); 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC); 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 5Mbps
Playback 16CH
Search Time slice / time / event / tag /smart search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Mode Manual, motion, exception, sensor, smart event
Alarm Input 16CH
Alarm Output 4CH
Smart Motion Detection Performance 16CH
Perimeter Protection Performance 1CH
Interface RJ 45 1000Mbps × 1
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP, etc.
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 160Mbps
Client Connection Max. 15users access
OS iOS, Android
HDD SATA×4, up to 10TB per HDD; E-SATA×1
Local Backup U disk, USB mobile HDD
Network Backup Yes
RS 485 Yes (full-duplex), connect to PTZ or keyboard
USB USB 2.0 × 1; USB 3.0 × 1
Remote Controller Optional
Power Supply ATX-250W
Consumption ≤ 30W (without HDD)
Dimensions(mm) 440 × 390 × 70 ( W × D × H )
Working Environment 10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Comply with Directive EU RoHS, WEEE, REACHPLC-1532H4/PM 32 Channel DVR with 32 CH TVI/AHD/CVI video input, H.265/H.265+ compression, 16CH playback, 4 SATA interfaces up to 10TB each, and outgoing bandwidth of 160 Mbps.PLC-1532H4/PM 32 Channel DVR. Features 32 CH TVI/AHD/CVI input, H.265/H.265+ compression, 16CH playback, 4 SATA up to 10TB each, 160 Mbps outgoing bandwidth. Pentaplex support. View specs.PLC-1532H4/PM, 32 CHANNEL DVR, 32 CH TVI/AHD/CVI 5MP/4MP/3MP/1080P/720P/WD1, 8 CH IP video input up to 5MP, 16CH Analog can switch to IP, H.265 high-profile compression, intuitive GUI, Multi-type recording manual/timed/sensor/motion/AI, 16 CH simultaneously playback, time slice/time/event/tag/smart search, USB backup, network backup, Pentaplex preview/record/playback/backup/remote access, Embedded Linux, BNC × 32, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@25fps/30fps live, 8CH IP up to 24CH up to 5MP@30fps, 40CH Total Input, HDMI, VGA, BNC CVBS, H.264/H.265/H.265+, Multi-screen Display 1/4/6/8/9/13/16/25/32/36, RCA × 16 Audio Input, RCA × 1 Audio Output, Two-way audio, G.711(U/A), Resolution 5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1/D1, 32Kbps ~ 5Mbps, 16CH Playback, Smart Search highlight colors, Alarm Input 16CH, Alarm Output 4CH, Smart Motion Detection 16CH, Perimeter Protection 1CH, RJ45 1000Mbps, TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP, Incoming Bandwidth 40Mbps, Outgoing Bandwidth 160Mbps, Max 15 users access, iOS, Android, SATA×4 up to 10TB per HDD, E-SATA×1, U disk backup, USB mobile HDD, RS 485 full-duplex for PTZ/keyboard, USB 2.0 × 1, USB 3.0 × 1, Remote Controller Optional, ATX-250W, ≤30W without HDD, 440×390×70mm, 10~50°C, CE, FCC, EU RoHS, WEEE, REACH
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this DVR and what are its key features? +
A: PLC-1532H4/PM. It is a 32 Channel DVR with 32 CH TVI/AHD/CVI video input (5MP/4MP/3MP/1080P/720P/WD1), supports IP video input, adopts H.265 high-profile compression, offers 16CH simultaneous playback, pentaplex functionality (preview, record, playback, backup, remote access), and includes 4 SATA interfaces up to 10TB each.
Q2: How many video inputs and total channels does this DVR support? +
A: Analog video input is BNC × 32 (TVI/AHD/CVI: 5MP@20fps; 4MP/3MP/1080P/720P/WD1@25fps/30fps live). IP video input is 8CH (up to 24CH) up to 5MP@30fps. Total input is 40CH. 16CH analog video input can be switched to 16CH IP video input.
Q3: What video outputs, compression formats, and audio inputs are available? +
A: Video output: HDMI × 1, VGA × 1, and BNC × 1 (CVBS for main or spot output). Video compression: H.264/H.265/H.265+. Audio input: RCA × 16. Audio output: RCA × 1.
Q4: What are the alarm inputs/outputs, storage options, power supply, and consumption? +
A: Alarm input: 16CH. Alarm output: 4CH. Storage: SATA × 4, up to 10TB per HDD; E-SATA × 1. Power supply: ATX-250W. Power consumption: ≤30W (without HDD).
