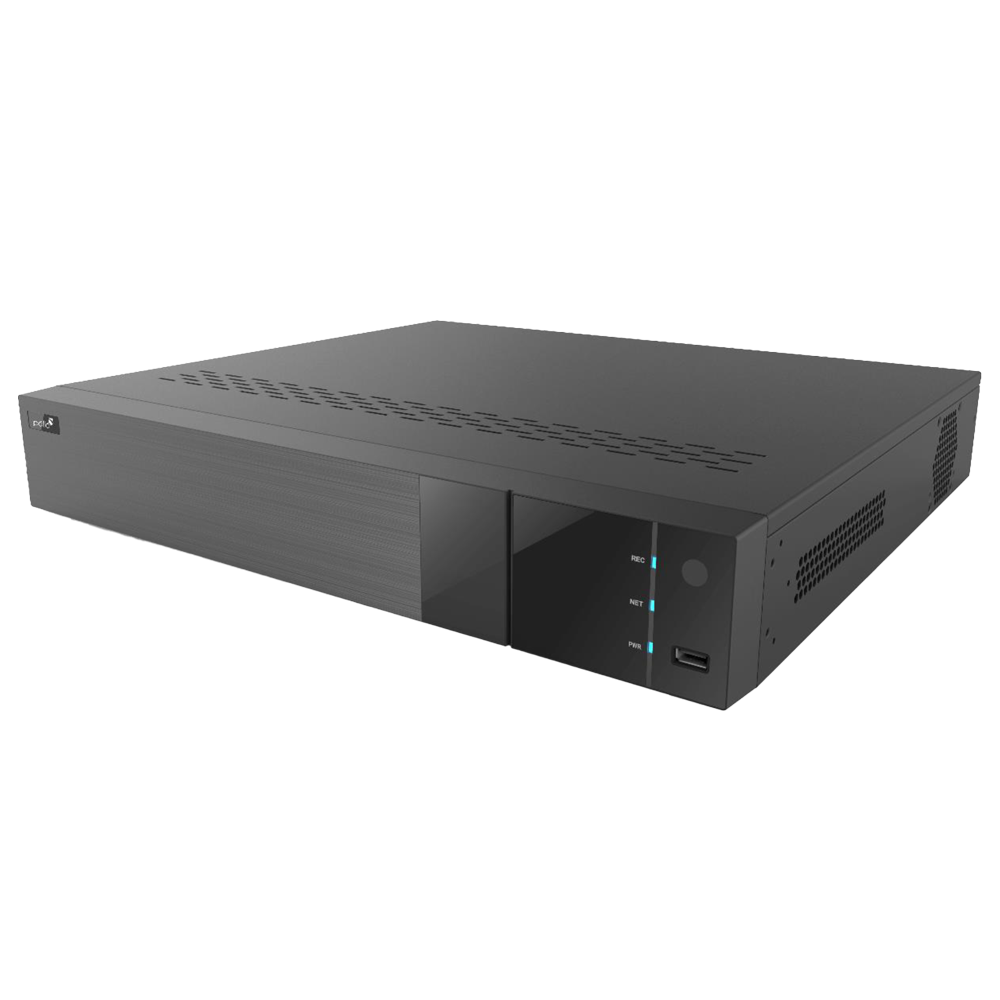

PLC-1804H1/PM-4K 8MP 04 Channel XVR | 4K FHD Supported XVR | TVI/AHD/DVR/IP | H.264/H.265 | 1 SATA Up to 10TB | Input/Output Bandwidth 16/40 Mbps

PLC-1804H1/PM-4K
8MP 04 CHANNEL XVR
04 channel Input
4K FHD Supported XVR
TVI/AHD/DVR/IP
2 Channel IP (Up To 6 Channels)
H.264/H.265 Video Compression
1 SATA Interface Up-to 10TB Per Interface
Input/Output Bandwidth 16/40 Mbps
Specifications
Downloads
Model No. PLC-1804H1/PM-4K
OS Embedded Linux
Analog Video Input BNC × 4 BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live)
IP Video Input 2CH (up to 6CH) Up to 8MP@20fps; lower than 8MP@30fps
Total Input 6CH
Output HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS (used as the main or spot output)
Compression H.264/H.265
Multi-screen Display 1/4/6/8/9
Input RCA × 4
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Resolution 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1
Frame Rate Analog Channel: 4K@6fps /7fps (PAL/NTSC) (only CH1 supports) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP/3MP@12fps / 15fps (PAL / NTSC) 4MP Lite/1080P/720P/WD1/D1@25fps / 30fps (PAL / NTSC) IP Channel: 8MP@ 20fps (PAL / NTSC); lower than 8MP@25fps / 30fps (PAL / NTSC)
Bit Rate 32Kbps ~ 4Mbps
Mode Manual, timed, motion, smart event
Playback 4CH
Search Time slice / time / event / tag search
Smart Search Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Mode Manual, motion, exception, smart event
Input 4CH
Output 1CH
Interface RJ 45 100Mbps × 1
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 16Mbps
Outgoing Bandwidth 40Mbps
Client Connection Max. 10 users' access
OS iOS, Android
HDD SATA× 1, up to 10TB per HDD; E-SATA× 1
Local Backup U disk, USB mobile HDD
Network Backup Yes
RS 485 Yes (half-duplex), connect to PTZ or keyboard
USB USB 2.0 × 2
Remote Controller Optional
Power Supply DC12V / 2A
Consumption ≤ 10W (without HDD)
Dimensions(mm) 300 × 249 × 45 (W × D × H)
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Comply with Directive EU RoHS, WEEE, REACH
