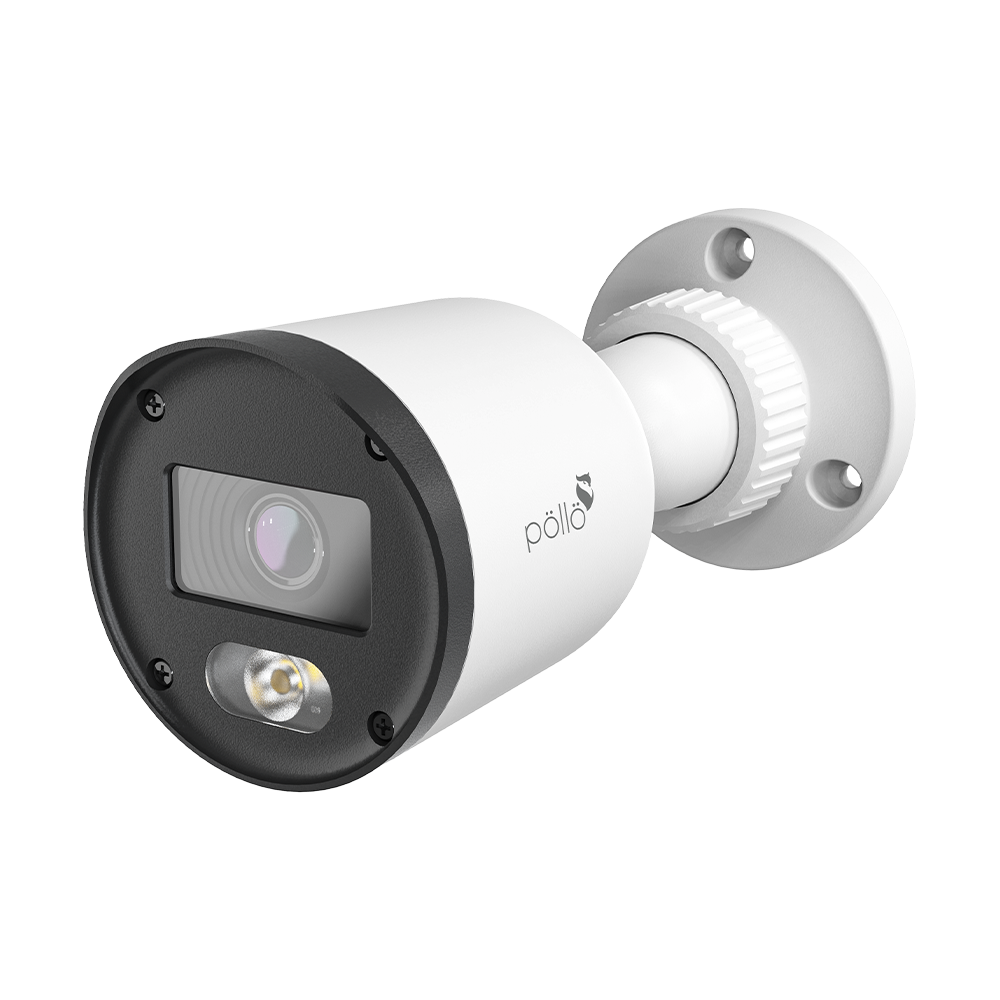

PLC-322P-AU-DL2/PM 2MP Dual Light Bullet FHD Camera | 2MP Bullet Colour Night Vision Camera | Support Audio On Coax | 10-20m Dual Light Night View | IP67
PLC-322P-AU-DL2/PM
2MP Dual Light Bullet FHD Camera
2MP Bullet Colour Night Vision Camera
Support Audio On Coax
10-20m Dual Light Night View
IP67
LED Light can be Turned-on or Off Automatically
Support BLC & DWDR
Specifications
Downloads
Model No. PLC-322P-AU-DL2/PM
Image Sensor Image Sensor
Resolution 2MP
Image Size 1920 x 1080
Video Output AHD / TVI /CVI/CVBS
Audio 1CH built-in MIC
Image System PAL / NTSC
Electronic Shutter Auto; 1 / 50s ~ 1 / 100000s ( PAL ); 1 / 60s ~ 1 / 100000s ( NTSC )
View Distance IR range: 10 ~20 m; White light range: 10 ~20 m
Frame Rate TVI:2MP@25/30fps AHD:2MP@25/30fps CVI:2MP@25/30fps CVBS:PAL/NSTC
Min. Illumination 0.005lux @F1.2, AGC ON; 0 lux ( LED ON)
Lens 2.8 mm
Lens Mount M12
S / N Ratio ≥52dB ( AGC OFF )
Ingress Protection IP67
Function Control OSD (COC Control)
Day & Night ICR
Digital WDR Yes
Digital NR Yes
AGC Yes
Auto White Balance Yes
BLC Yes
Contrast Yes
Saturation/Color Gain Yes
Sharpness Yes
Coaxial audio Yes
Image Setting Yes
Defect Correction Auto
Language English and Chinese
Angle Adjustment Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Power Supply DC12V ( ± 10% )
Power Consumption LED OFF : < 1W; LED ON : < 3W
Working Environment -30°C~50°C, 10%~90% (relative humidity)
Dimensions ( mm ) Ф 65 x 144
Weight (Net) Approx. 0.15KG
PLC-322P-AU-DL2/PM 2MP Dual Light Bullet FHD Camera, 2MP Bullet Colour Night Vision Camera, Support Audio On Coax, 10-20m Dual Light Night View, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR.
PLC-322P-AU-DL2/PM 2MP Dual Light Bullet FHD Camera. Features 2MP Bullet Colour Night Vision, Audio On Coax, 10-20m Dual Light Night View, IP67, automatic LED light control, BLC & DWDR. View specifications and downloads.
PLC-322P-AU-DL2/PM, 2MP Dual Light Bullet FHD Camera, 2MP Bullet Colour Night Vision Camera, Support Audio On Coax, 10-20m Dual Light Night View, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR, Image Sensor, 2MP, 1920 x 1080, AHD, TVI, CVI, CVBS, 1CH built-in MIC, PAL, NTSC, IR range 10~20m, White light range 10~20m, 0.005lux @F1.2, 0 lux LED ON, 2.8mm Lens, M12, ≥52dB, OSD, COC Control, ICR, Digital WDR, Digital NR, AGC, Auto White Balance, BLC, Contrast, Saturation/Color Gain, Sharpness, Coaxial audio, DC12V, LED OFF <1W, LED ON <3W, -30°C~50°C, Ф65 x 144mm, 0.15KG
Technical Specifications
Frequently Asked Questions
What is the model number of this camera and what are its key features? +
PLC-322P-AU-DL2/PM. It is a 2MP Dual Light Bullet FHD Camera, 2MP Bullet Colour Night Vision Camera, supports Audio On Coax, has 10-20m Dual Light Night View, IP67 rating, and LED Light can be Turned-on or Off Automatically. It also supports BLC & DWDR.
What are the video output formats and audio specifications? +
Video output is AHD / TVI / CVI / CVBS. Audio includes 1CH built-in MIC with coaxial audio support.
What are the IR and white light view distances, and what is the minimum illumination? +
IR range is 10 ~ 20m; White light range is 10 ~ 20m. Minimum illumination is 0.005lux @F1.2, AGC ON, and 0 lux (LED ON).
What is the ingress protection rating, angle adjustment, power supply, and power consumption? +
Ingress protection is IP67. Angle adjustment: Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°. Power supply is DC12V (±10%). Power consumption: LED OFF: < 1W; LED ON: < 3W.
