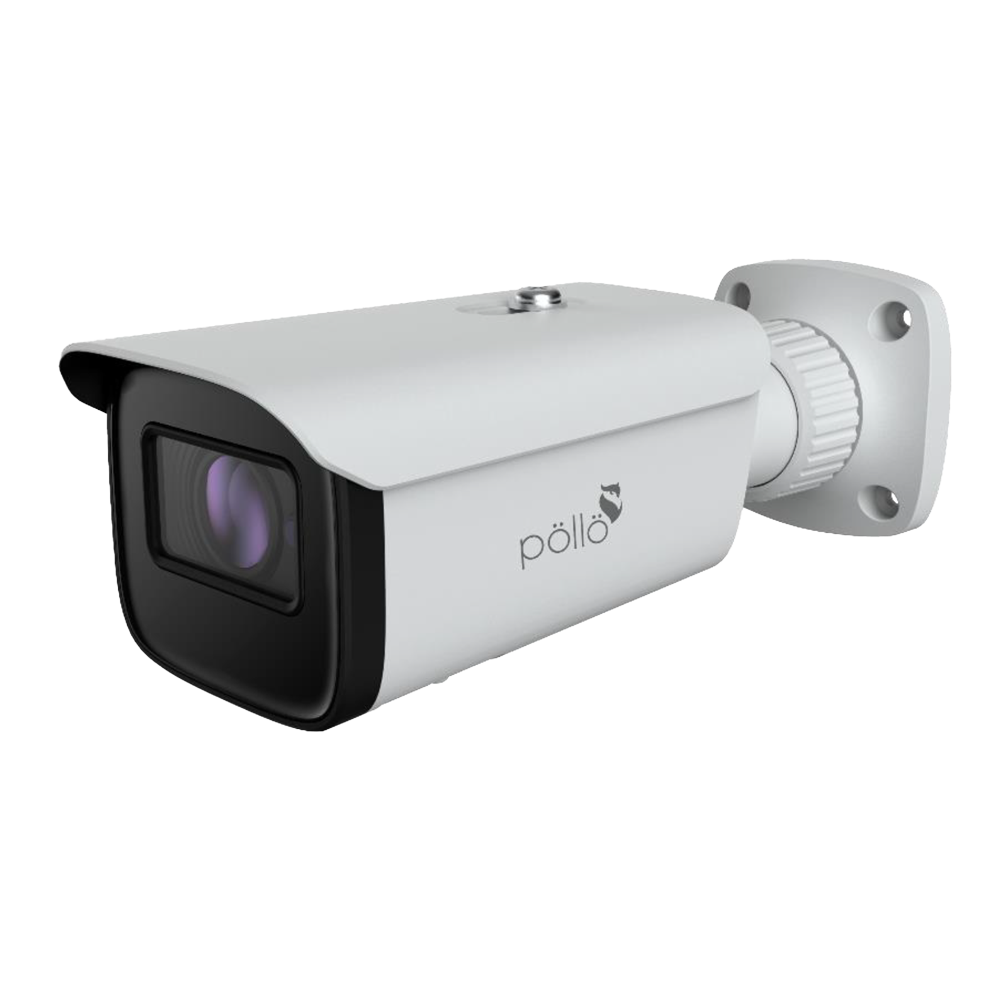

PLC-325M-MZ-IR5/PM 5MP FHD Camera | 1/2.7″ Full HD CMOS Sensor | 30-50m Smart IR | 30fps, 5MP | Output: AHD/CVI/TVI | Motorized 2.8-12mm Lens | IP67
PLC-325M-MZ-IR5/PM
5MP FHD Camera
1/2.7 ″ Full HD CMOS Sensor.
30-50m Smart IR
30fps, 5MP
Output: AHD/CVI/TVI
Motorized 2.8-12mm Lens
HLC, BLC & Digital DWDR
IP67
Specifications
Downloads
Model No. PLC-325M-MZ-IR5/PM
Image Sensor 1 / 2.7 "CMOS
Resolution 5MP
Image Size 2560 x 1936
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto
IR Distance 30 ~ 50 m
Frame Rate 5MP@20fps/4MP@30fps
Min. Illumination Colour: 0.01 lux@F1.2, AGC ON; B/W: 0 lux with IR
Lens 2.8~12mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP 67
Function Control OSD (COC Control)
Day & Night ICR
Digital WDR Yes
Digital NR Yes, 2D DNR
AGC Yes
Auto White Balance Yes
BLC Yes
FLC Yes
Defog Yes
HLC Yes
Sharpness Yes
Mirror Yes
Smart IR Yes
Image Setting Yes
Defect Correction Auto
Language 13 languages
Angle Adjustment Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Power Supply DC12V (± 10%)
Power Consumption IR OFF: < 1W; IR ON: < 6W
Working Environment - 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
Dimensions (mm) 217.7 x 80.5 x 80.5
Weight (net) Approx. 0.57KG
PLC-325M-MZ-IR5/PM 5MP FHD Camera with 1/2.7″ Full HD CMOS Sensor, 30-50m Smart IR, 30fps 5MP, Output: AHD/CVI/TVI, Motorized 2.8-12mm Lens, HLC, BLC & Digital DWDR, IP67.
PLC-325M-MZ-IR5/PM 5MP FHD Camera. Features 1/2.7″ Full HD CMOS Sensor, 30-50m Smart IR, 30fps 5MP, AHD/CVI/TVI output, Motorized 2.8-12mm Lens, HLC, BLC & Digital DWDR, IP67. View specifications and downloads.
PLC-325M-MZ-IR5/PM, 5MP FHD Camera, 1/2.7" Full HD CMOS Sensor, 30-50m Smart IR, 30fps, 5MP, AHD, CVI, TVI, CVBS, Motorized 2.8-12mm Lens, M12, HLC, BLC, Digital DWDR, IP67, 2560 x 1936, PAL, NTSC, 5MP@20fps, 4MP@30fps, Colour 0.01 lux@F1.2, B/W 0 lux with IR, S/N Ratio ≥52dB, COC Control, ICR, 2D DNR, AGC, Auto White Balance, FLC, Defog, Sharpness, Mirror, 13 languages, DC12V ±10%, IR OFF <1W, IR ON <6W, -30°C ~ 50°C, 217.7 x 80.5 x 80.5mm, 0.57KG
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this camera and what are its key features? +
A: PLC-325M-MZ-IR5/PM. It is a 5MP FHD Camera with 1/2.7" Full HD CMOS Sensor, 30-50m Smart IR, 30fps 5MP, Output: AHD/CVI/TVI, Motorized 2.8-12mm Lens, HLC, BLC & Digital DWDR, and IP67 rating.
Q2: What is the lens specification and IR distance? +
A: Lens is Motorized 2.8~12mm with M12 mount. IR distance is 30 ~ 50m with Smart IR.
Q3: What is the minimum illumination and power consumption? +
A: Minimum illumination: Colour: 0.01 lux@F1.2, AGC ON; B/W: 0 lux with IR. Power consumption: IR OFF: < 1W; IR ON: < 6W.
Q4: What is the ingress protection rating, language support, and working environment? +
A: Ingress protection is IP67. Language supports 13 languages. Working environment: -30°C ~ 50°C, 10% ~ 90% relative humidity.
