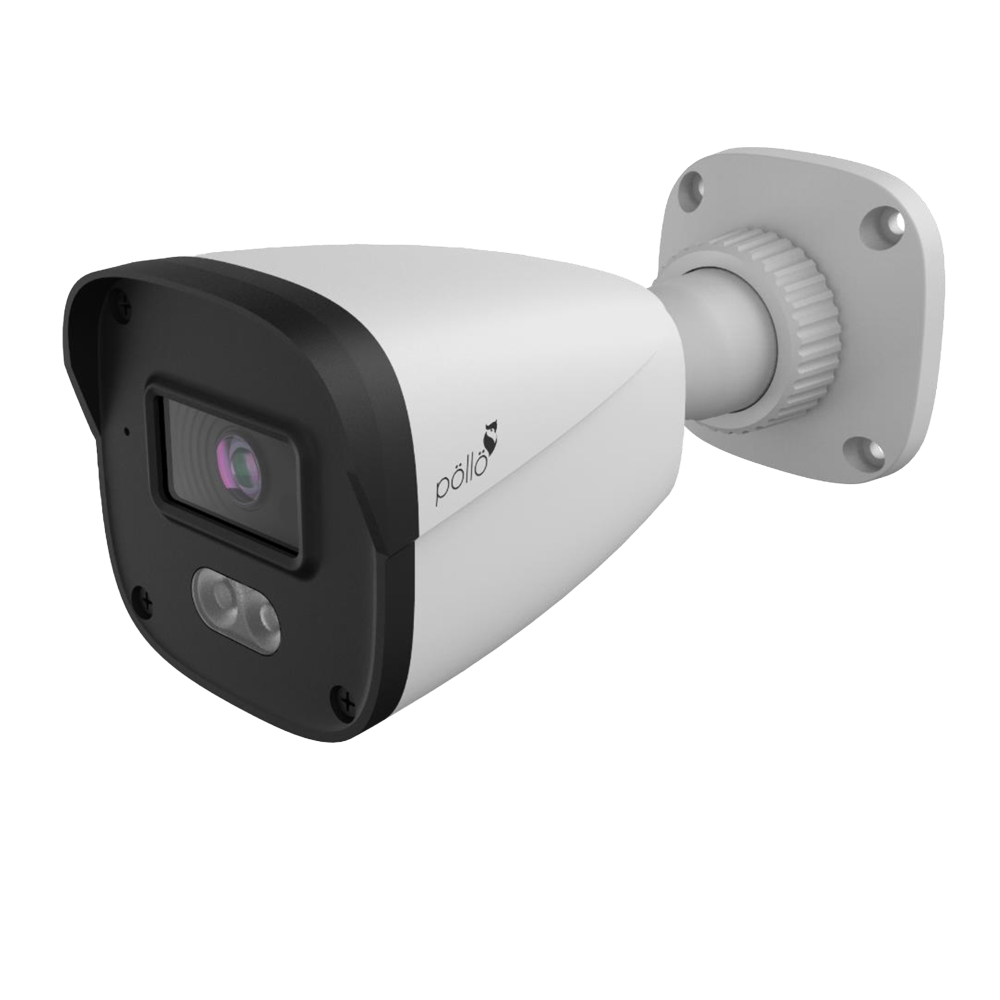

PLC-325P-AU-DL3/PM 5MP Dual Light FHD Bullet Camera | 5MP Bullet Colour Night Vision Camera | Support Audio On Coax | 20-30m Dual Light Distance | IP67
PLC-325P-AU-DL3/PM
5MP Dual Light FHD Bullet Camera
5MP Bullet Colour Night Vision Camera
Support Audio On Coax
20-30m Dual Light Distance
IP67
LED Light can be Turned-on or Off Automatically
Support BLC & DWDR
Specifications
Downloads
Model No. PLC-325P-AU-DL3/PM
Image Sensor 1/2.5" CMOS
Resolution 5MP
Image Size 2944 x 1656
Video Output AHD / TVI /CVI/CVBS
Audio 1CH built-in MIC
Image System PAL / NTSC
Electronic Shutter Auto
View Distance IR range: 20 ~30 m; White light range: up to 30m
Frame Rate TVI:2944×1656@20fps, 2560×1440@25/30fps AHD:2944×1656@20fps, 2560×1440@25/30fps CVI:2560×1440@25/30fps CVBS:PAL/NSTC
Min. Illumination 0.005lux F1.2, AGC ON; 0 lux (LED ON)
Lens 2.8 mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP 67
Function Control OSD (COC Control) D
Digital WDR Yes
Digital NR Yes, 2D DNR (3D, only used with POLLO'S DVRs)
AGC Yes
Auto White Balance Yes
BLC Yes
Contrast Yes
Saturation/Color Gain Yes
Sharpness Yes
Coaxial audio Yes
Image Setting Yes Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Power Supply DC12V (± 10%)
Power Consumption LED OFF: < 1W; LED ON: < 4W
Working Environment -10°C~40°C, 10%~90% (relative humidity)
Dimensions (mm) 162.1 × 74.8 × 73.8
Weight (Net) Approx. 0.25KG
PLC-325P-AU-DL3/PM 5MP Dual Light FHD Bullet Camera, 5MP Bullet Colour Night Vision Camera, Support Audio On Coax, 20-30m Dual Light Distance, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR.
PLC-325P-AU-DL3/PM 5MP Dual Light FHD Bullet Camera. Features 5MP Bullet Colour Night Vision, Audio On Coax, 20-30m Dual Light Distance, IP67, automatic LED light control, BLC & DWDR. View specifications and downloads.
PLC-325P-AU-DL3/PM, 5MP Dual Light FHD Bullet Camera, 5MP Bullet Colour Night Vision Camera, Support Audio On Coax, 20-30m Dual Light Distance, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR, 1/2.5" CMOS, 5MP, 2944 x 1656, AHD, TVI, CVI, CVBS, 1CH built-in MIC, PAL, NTSC, IR range 20~30m, White light range up to 30m, 0.005lux F1.2, 0 lux LED ON, 2.8mm Lens, M12, ≥52dB, OSD, COC Control, Digital WDR, Digital NR, 2D DNR, 3D only with POLLO'S DVRs, AGC, Auto White Balance, BLC, Contrast, Saturation/Color Gain, Sharpness, Coaxial audio, DC12V ±10%, LED OFF <1W, LED ON <4W, -10°C~40°C, 162.1×74.8×73.8mm, 0.25KG
Technical Specifications
Frequently Asked Questions
What is the model number of this camera and what are its key features? +
PLC-325P-AU-DL3/PM. It is a 5MP Dual Light FHD Bullet Camera, 5MP Bullet Colour Night Vision Camera, supports Audio On Coax, has 20-30m Dual Light Distance, IP67 rating, LED Light can be Turned-on or Off Automatically, and supports BLC & DWDR.
What is the resolution and image sensor size? +
Resolution is 5MP with image size of 2944 x 1656. Image sensor is 1/2.5" CMOS.
What are the IR and white light view distances, and what is the minimum illumination? +
IR range is 20 ~ 30m; White light range is up to 30m. Minimum illumination is 0.005lux F1.2, AGC ON, and 0 lux (LED ON).
What is the ingress protection rating, power supply, and power consumption? +
Ingress protection is IP67. Power supply is DC12V (±10%). Power consumption: LED OFF: < 1W; LED ON: < 4W.
