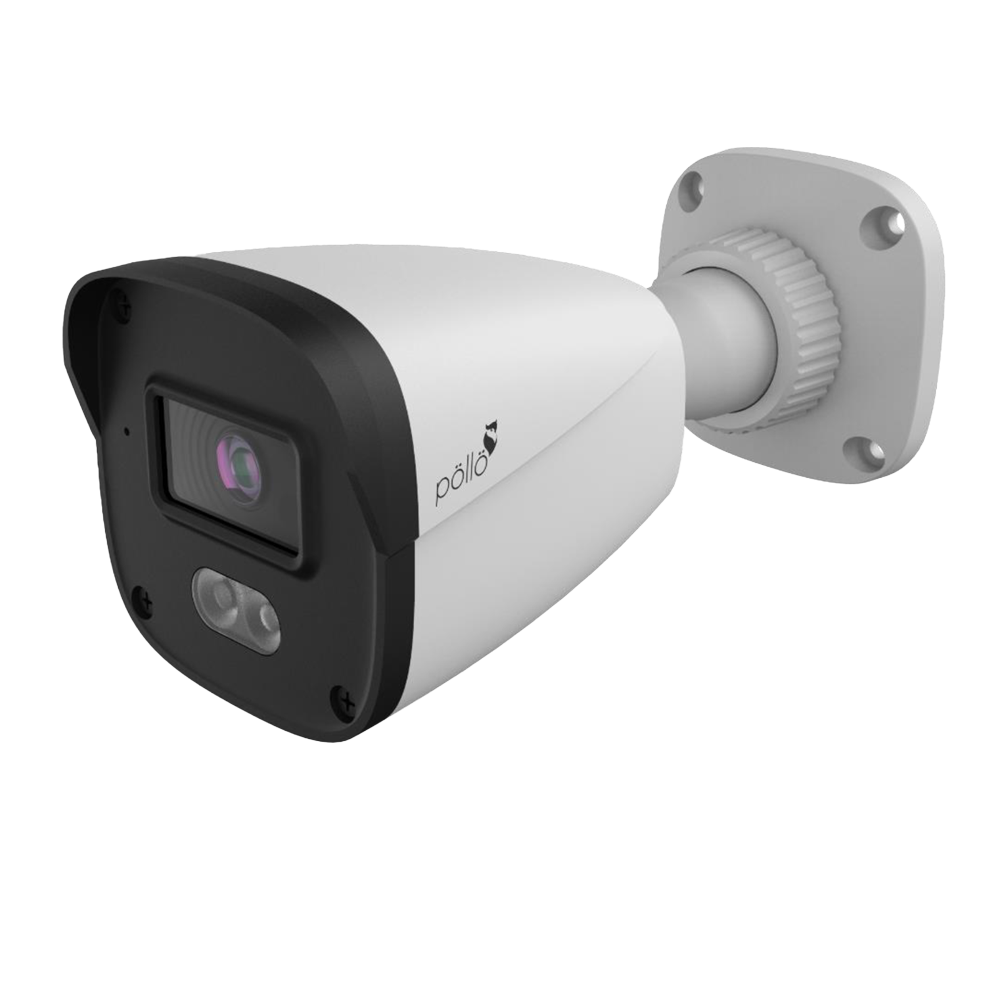

PLC-325P-AU-WR3/PM 5MP Warmlight FHD Camera | 5MP Bullet Colour Night Vision Camera | Support Audio On Coax | 20-30m Warmlight Distance | IP67
PLC-325P-AU-WR3/PM
5MP Warmlight FHD Camera
5MP Bullet Colour Night Vision Camera
Support Audio On Coax
20-30m Warmlight Distance
IP67
LED Light can be Turned-on or Off Automatically
Support BLC & DWDR
Specifications
Downloads
Model No. PLC-325P-AU-WR3/PM
Image Sensor 1/2.5" CMOS
Resolution 5MP
Image Size 2560 x 1936
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Audio Built in Mic
Electronic Shutter Auto; 1/50s~1/000000s(P); 1/60s~1/100000s(N)
IR Distance 20 ~30 m
Frame Rate 5MP@20fps/4MP@30fps
Min. Illumination 0 lux with LED ON
Lens 3.6 mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP67
Function OSD (COC Control)
Smart LED Yes
Digital WDR Yes
Digital NR Yes, 2D DNR
AGC Yes
Auto White Balance Yes
BLC Yes
Contrast Yes
Sharpness Yes
Image Setting Yes
Defect Correction Auto
Language English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Power Supply DC12V (± 10%)
Power Consumption LED OFF: < 1.5W; LED ON: < 3W
Working Environment - 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
Dimensions (mm) 165.7 x 69 x 69
Weight (net) Approx. 0.37KG
PLC-325P-AU-WR3/PM 5MP Warmlight FHD Camera. Features 5MP Bullet Colour Night Vision, Audio On Coax, 20-30m Warmlight Distance, IP67, automatic LED light control, BLC & DWDR. View specifications and downloads.
PLC-325P-AU-WR3/PM, 5MP Warmlight FHD Camera, 5MP Bullet Colour Night Vision Camera, Support Audio On Coax, 20-30m Warmlight Distance, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR, 1/2.5" CMOS, 5MP, 2560 x 1936, AHD, TVI, CVI, CVBS, PAL, NTSC, Built in Mic, Electronic Shutter Auto, IR Distance 20~30m, 5MP@20fps, 4MP@30fps, 0 lux with LED ON, 3.6mm Lens, M12, ≥52dB, OSD, COC Control, Smart LED, Digital WDR, Digital NR, 2D DNR, AGC, Auto White Balance, BLC, Contrast, Sharpness, DC12V ±10%, LED OFF <1.5W, LED ON <3W, -30°C ~ 50°C, 165.7 x 69 x 69mm, 0.37KG
Technical Specifications
Frequently Asked Questions
What is the model number of this camera and what are its key features? +
PLC-325P-AU-WR3/PM. It is a 5MP Warmlight FHD Camera, 5MP Bullet Colour Night Vision Camera, supports Audio On Coax, has 20-30m Warmlight Distance, IP67 rating, LED Light can be Turned-on or Off Automatically, and supports BLC & DWDR.
What is the resolution and image sensor size? +
Resolution is 5MP with image size of 2560 x 1936. Image sensor is 1/2.5" CMOS.
What is the IR distance, lens specification, and minimum illumination? +
IR distance is 20 ~ 30m. Lens is 3.6 mm with M12 mount. Minimum illumination is 0 lux with LED ON.
What is the ingress protection rating, power supply, and power consumption? +
Ingress protection is IP67. Power supply is DC12V (±10%). Power consumption: LED OFF: < 1.5W; LED ON: < 3W.
