LENS ACTIVE

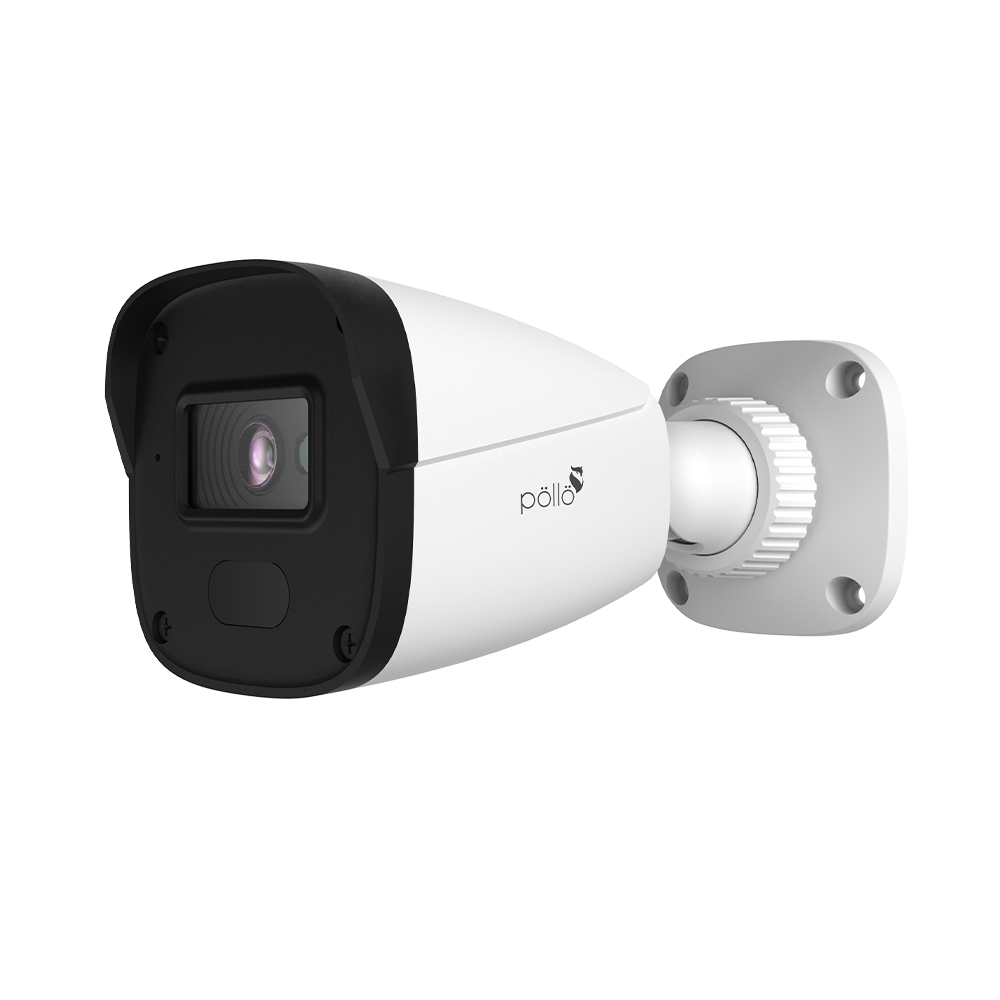

PLC-325P-IR2/PM 5MP FHD Camera | 1/2.5″ CMOS Sensor Progressive Scan | 30-40m IR | 30fps, 5MP | Output: AHD/CVI/TVI | 3.6mm Lens | IP67
Pollo

PLC-325P-IR2/PM 5MP FHD Camera | 1/2.5″ CMOS Sensor Progressive Scan | 30-40m IR | 30fps, 5MP | Output: AHD/CVI/TVI | 3.6mm Lens | IP67

0.0
• 0 verified reviews
Rs.5,500.00
Tax included. Shipping calculated at checkout.
In Stock & Ready to Ship
Free Delivery on orders over $50
Delivery 1-2 Days
NATIONAL WIDE
3 Days Return
HASSLE FREE
3 Days Exchange
INSTANT PROCESS
1 Year Warranty
OFFICIAL SHIELD
PLC-325P-IR2/PM 5MP FHD Camera | 1/2.5″ CMOS Sensor Progressive Scan | 30-40m IR | 30fps, 5MP | Output: AHD/CVI/TVI | 3.6mm Lens | IP67
PLC-325P-IR2/PM 5MP FHD Camera | 1/2.5″ CMOS Sensor Progressive Scan | 30-40m IR | 30fps, 5MP | Output: AHD/CVI/TVI | 3.6mm Lens | IP67
Rs.5,500.00
Rs.5,500.00

PLC-325P-IR2/PM
5MP FHD Camera
1/2.5 ″ CMOS Sensor Progressive Scan.
30-40m IR
30fps, 5MP
Output: AHD/CVI/TVI
3.6mm Lens
HLC, BLC & Digital DWDR
IP67
Specifications
Downloads
Model No. PLC-325P-IR2/PM
Image Sensor 1/2.5" CMOS Sensor Progressive Scan
Resolution 5MP
Image Size 2560 x 1936
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto
IR Distance 30 ~40 m
Frame Rate 5MP@20fps/4MP@30fps
Min. Illumination Colour: 0.01lux@F1.2, AGC ON; B/W: 0 lux with IR
Lens 3.6 mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP67
Function Control OSD (COC Control)
Day & Night ICR
Digital WDR Yes
Digital NR Yes, 2D DNR
AGC Yes
Auto White Balance Yes
BLC Yes
FLC Yes
Defog Yes
HLC Yes
Sharpness Yes
Mirror Yes
Smart IR Yes
Image Setting Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Power Supply DC12V (± 15%)
Power Consumption IR OFF: < 1W; IR ON: < 3W
Working Environment - 10 °C ~ 40 °C, 10 % ~ 90 % (relative humidity)
Dimensions (mm) 162.1 x 74.8 x 73.8
Weight (net) Approx. 0.30KG

PLC-325P-IR2/PM 5MP FHD Camera with 1/2.5″ CMOS Sensor Progressive Scan, 30-40m IR, 30fps 5MP, Output: AHD/CVI/TVI, 3.6mm Lens, HLC, BLC & Digital DWDR, IP67.

PLC-325P-IR2/PM 5MP FHD Camera. Features 1/2.5″ CMOS Sensor Progressive Scan, 30-40m IR, 30fps 5MP, AHD/CVI/TVI output, 3.6mm Lens, HLC, BLC & Digital DWDR, IP67. View specifications and downloads.

PLC-325P-IR2/PM, 5MP FHD Camera, 1/2.5" CMOS Sensor Progressive Scan, 30-40m IR, 30fps, 5MP, AHD, CVI, TVI, CVBS, 3.6mm Lens, M12, HLC, BLC, Digital DWDR, IP67, 2560 x 1936, PAL, NTSC, IR Distance 30~40m, Colour 0.01lux@F1.2, B/W 0 lux with IR, S/N Ratio ≥52dB, COC Control, ICR, 2D DNR, AGC, Auto White Balance, FLC, Defog, Sharpness, Mirror, Smart IR, DC12V ±15%, IR OFF <1W, IR ON <3W, -10°C ~ 40°C, 162.1 x 74.8 x 73.8mm, 0.30KG

Technical Specifications

Camera features: Waterproof, Face detection
Camera sensor type: CMOS
Color pattern: White
Connection method: Wired
Connectivity technology: Wired
Material: Plastic
Power source: DC-powered
Surveillance camera design: Bullet
Surveillance camera mounting type: Wall, Ceiling

Frequently Asked Questions

Q1: What is the model number of this camera and what are its key features? +

A: PLC-325P-IR2/PM. It is a 5MP FHD Camera with 1/2.5" CMOS Sensor Progressive Scan, 30-40m IR, 30fps 5MP, Output: AHD/CVI/TVI, 3.6mm Lens, HLC, BLC & Digital DWDR, and IP67 rating.

Q2: What is the resolution and image sensor size? +

A: Resolution is 5MP with image size of 2560 x 1936. Image sensor is 1/2.5" CMOS Sensor Progressive Scan.

A: IR distance is 30 ~ 40m. Minimum illumination: Colour: 0.01lux@F1.2, AGC ON; B/W: 0 lux with IR. +

Q4: What is the ingress protection rating, power supply, and power consumption?

Q4: What is the ingress protection rating, power supply, and power consumption? +

A: Ingress protection is IP67. Power supply is DC12V (±15%). Power consumption: IR OFF: < 1W; IR ON: < 3W.
