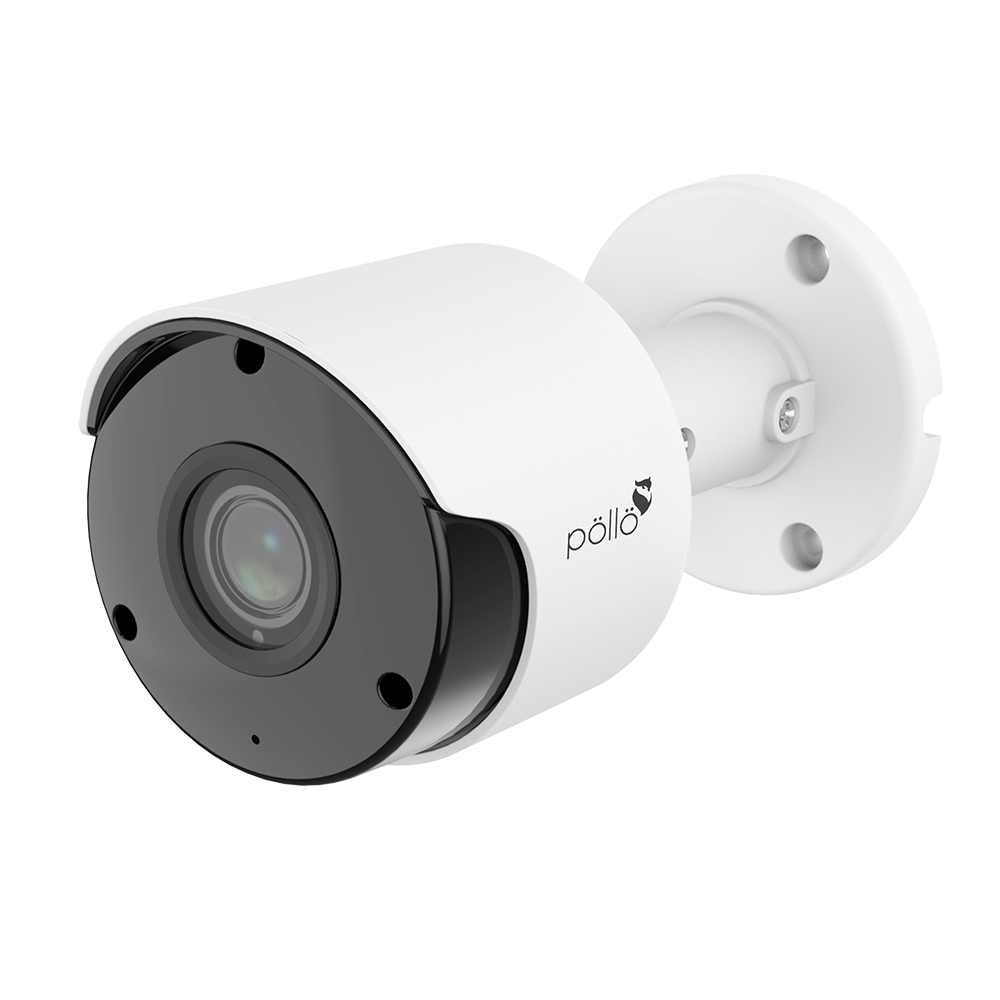

PLC-328M-IR3/PR 8MP Bullet FHD Camera | 30m IR Distance | IP66 | Support OSD Menu | Support BLC & DWDR
PLC-328M-IR3/PR
8MP Bullet FHD Camera
30m IR Distance
IP66
Support OSD Menu
Support BLC & DWDR
Specifications
Downloads
Model Number PLC-328M-IR3/PR
Imaging Device 1/2.7" Progressive CMOS
Total Pixels 3872（H）×2180（V)
Effective Pixels 3840（H）×2160（V）
Scanning System Progressive
Min. Illumination 0.05lux@F1.2 (AGC ON),0Lux with IR ON
Video Output BNC
Resolution 8MP 3840（H）×2160（V）
Max, Framerate AHD/TVI/CVI: 8MP@15fps CVBS: 960H
Focal Length (Zoom Ratio) 3.6MM
Max. Aperture Ratio F2.0
Angular Field of View H:90.84° / V:48.8° / D:108.73°
Min. Object Distance 0.2m
Lens Type Fixed lens
Viewable length 20M
On Screen Display English
Day & Night Smart / Auto / Colour / B/W
IR Range 30 meters
Backlight Compensation GLOBAL / BLC
Wide Dynamic Range D-WDR (Off/On)
Digital Noise Reduction 2D DNR
Gain Control HIGH
White Balance ATW
Electronic Shutter Speed AUTO
Reverse Mirror
Remote control interface ACP (AHD Coax Protocol)
Video Transmission Distance MAX 300M （ Cable: 5C 2V）
Operating Temperature / Humidity -30°C ~ 55°C / 90%
Ingress Protection IP66
Input Voltage/Current 12V DC
Power Consumption IR ON : 5W, IR OFF : 1.5W
Color / Material Metal
Safety CE LVD
EMC CE EMC、FCC
ROHS RoHS2.0
PLC-328M-IR3/PR 8MP Bullet FHD Camera, 30m IR Distance, IP66, Support OSD Menu, Support BLC & DWDR.
PLC-328M-IR3/PR 8MP Bullet FHD Camera. Features 30m IR Distance, IP66, OSD Menu, BLC & DWDR. 8MP resolution with AHD/TVI/CVI output. View specifications and downloads.
PLC-328M-IR3/PR, 8MP Bullet FHD Camera, 30m IR Distance, IP66, Support OSD Menu, Support BLC & DWDR, 1/2.7" Progressive CMOS, 3872×2180, 3840×2160, Progressive Scanning, 0.05lux@F1.2 (AGC ON), 0Lux with IR ON, BNC, 8MP 3840×2160, AHD/TVI/CVI: 8MP@15fps, CVBS: 960H, 3.6MM, F2.0, H:90.84° / V:48.8° / D:108.73°, 0.2m Min Object Distance, Fixed lens, 20M Viewable length, English OSD, Smart/Auto/Colour/B/W Day & Night, 30 meters IR Range, GLOBAL/BLC, D-WDR, 2D DNR, Gain Control HIGH, ATW White Balance, AUTO Shutter, Mirror Reverse, ACP Remote Control Interface, MAX 300M Video Transmission Distance, -30°C ~ 55°C / 90% Humidity, IP66, 12V DC, IR ON 5W, IR OFF 1.5W, Metal, CE LVD, CE EMC, FCC, RoHS2.0
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this camera and what are its key features? +
A: PLC-328M-IR3/PR. It is an 8MP Bullet FHD Camera with 30m IR Distance, IP66 rating, supports OSD Menu, and supports BLC & DWDR.
Q2: What is the resolution and image sensor? +
A: Resolution is 8MP with effective pixels of 3840 (H) × 2160 (V). Imaging device is 1/2.7" Progressive CMOS.
Q3: What is the lens specification, IR range, and minimum illumination? +
A: Focal length is 3.6MM with F2.0 aperture. IR range is 30 meters. Minimum illumination is 0.05lux@F1.2 (AGC ON), 0Lux with IR ON.
Q4: What is the ingress protection rating, power consumption, and operating temperature? +
A: Ingress protection is IP66. Power consumption: IR ON: 5W, IR OFF: 1.5W. Operating temperature: -30°C ~ 55°C / 90% humidity.
