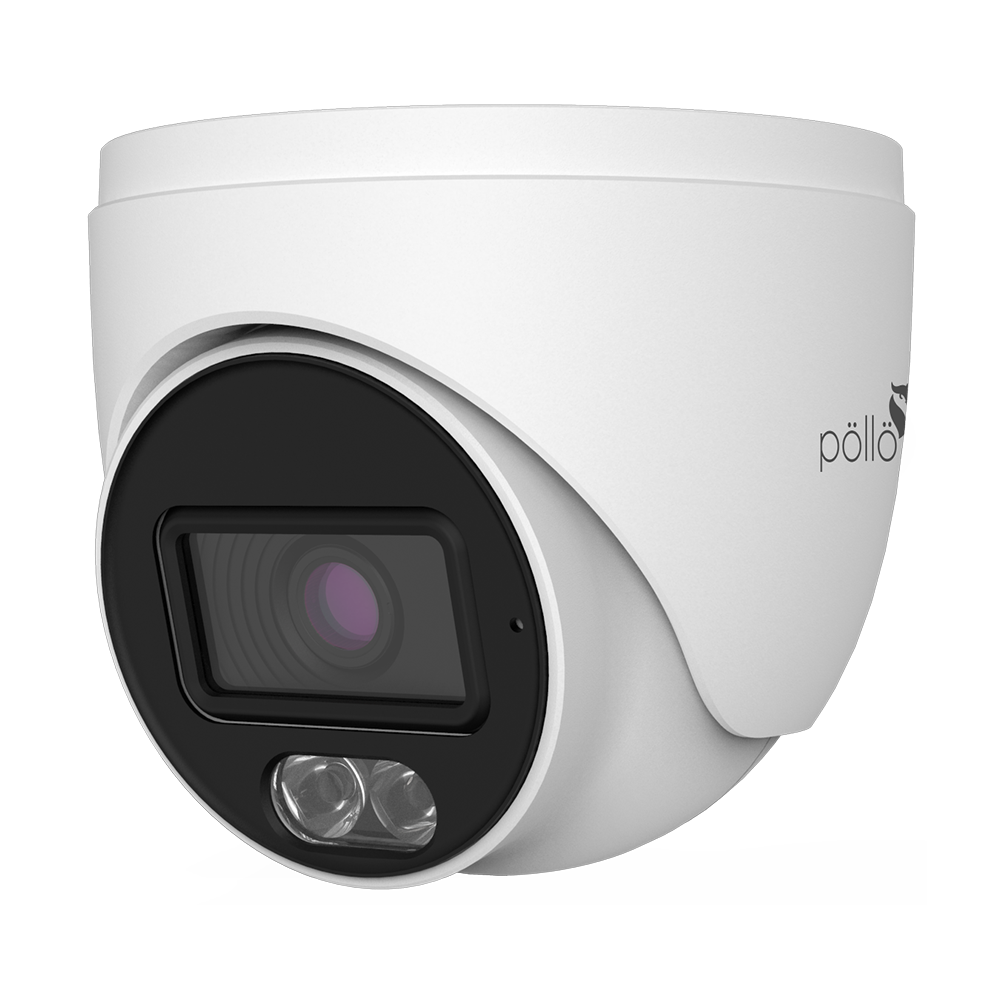

PLC-332P-AU-DL3/PM 2MP Dual Light Dome FHD Camera | 2MP Dome Colour Night Vision Camera | Support Audio On Coax | 20-30m Dual Light Distance | IP67
PLC-332P-AU-DL3/PM
2MP Dual Light Dome FHD Camera
2MP Dome Colour Night Vision Camera
Support Audio On Coax
20-30m Dual Light Distance
IP67
LED Light can be Turned-on or Off Automatically
Support BLC & DWDR
Specifications
Downloads
Model No. PLC-332P-AU-DL3/PM
Image Sensor 1/2.8" CMOS
Resolution 2MP
Image Size 1920 x 1080
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto
View Distance 20 ~ 30m IR view distance; up to 30m white light view distance
Audio Built-in MIC
Frame Rate 30fps(60Hz); 25fps (50Hz)
Min. Illumination 0 lux (LED ON)
Lens 2.8 mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP67
Function Control OSD (COC Control)
Smart LED Manual or Auto mode
ICR NO
Digital WDR Yes
Digital DNR Yes, 2D DNR
AGC Yes
Auto White Balance Yes
BLC Yes
HLC Yes
Sharpness Yes
Contrast Yes
Image Setting Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Power Supply DC12V (± 15%)
Power Consumption LED OFF: < 1W; LED ON: < 4W
Working Environment - 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
Dimensions (mm) 162.1 × 74.8 × 73.8
Weight (net) Approx. 0.37KG
PLC-332P-AU-DL3/PM 2MP Dual Light Dome FHD Camera, 2MP Dome Colour Night Vision Camera, Support Audio On Coax, 20-30m Dual Light Distance, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR.
PLC-332P-AU-DL3/PM 2MP Dual Light Dome FHD Camera. Features 2MP Dome Colour Night Vision, Audio On Coax, 20-30m Dual Light Distance, IP67, automatic LED light control, BLC & DWDR. View specifications and downloads.
PLC-332P-AU-DL3/PM, 2MP Dual Light Dome FHD Camera, 2MP Dome Colour Night Vision Camera, Support Audio On Coax, 20-30m Dual Light Distance, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR, 1/2.8" CMOS, 2MP, 1920 x 1080, AHD, TVI, CVI, CVBS, PAL, NTSC, Auto Electronic Shutter, 20~30m IR view distance, up to 30m white light view distance, Built-in MIC, 30fps, 25fps, 0 lux LED ON, 2.8mm Lens, M12, ≥52dB, OSD, COC Control, Smart LED Manual or Auto mode, ICR NO, Digital WDR, Digital DNR, 2D DNR, AGC, Auto White Balance, BLC, HLC, Sharpness, Contrast, DC12V ±15%, LED OFF <1W, LED ON <4W, -30°C ~ 50°C, 162.1×74.8×73.8mm, 0.37KG
Technical Specifications
Frequently Asked Questions
What is the model number of this camera and what are its key features? +
PLC-332P-AU-DL3/PM. It is a 2MP Dual Light Dome FHD Camera, 2MP Dome Colour Night Vision Camera, supports Audio On Coax, has 20-30m Dual Light Distance, IP67 rating, LED Light can be Turned-on or Off Automatically, and supports BLC & DWDR.
What are the video output formats and audio specifications? +
Video output is AHD / TVI / CVI / CVBS. Audio includes Built-in MIC
What are the IR and white light view distances, lens specification, and minimum illumination? +
View distance is 20 ~ 30m IR view distance; up to 30m white light view distance. Lens is 2.8 mm with M12 mount. Minimum illumination is 0 lux (LED ON).
What is the ingress protection rating, power supply, and power consumption? +
Ingress protection is IP67. Power supply is DC12V (±15%). Power consumption: LED OFF: < 1W; LED ON: < 4W.
