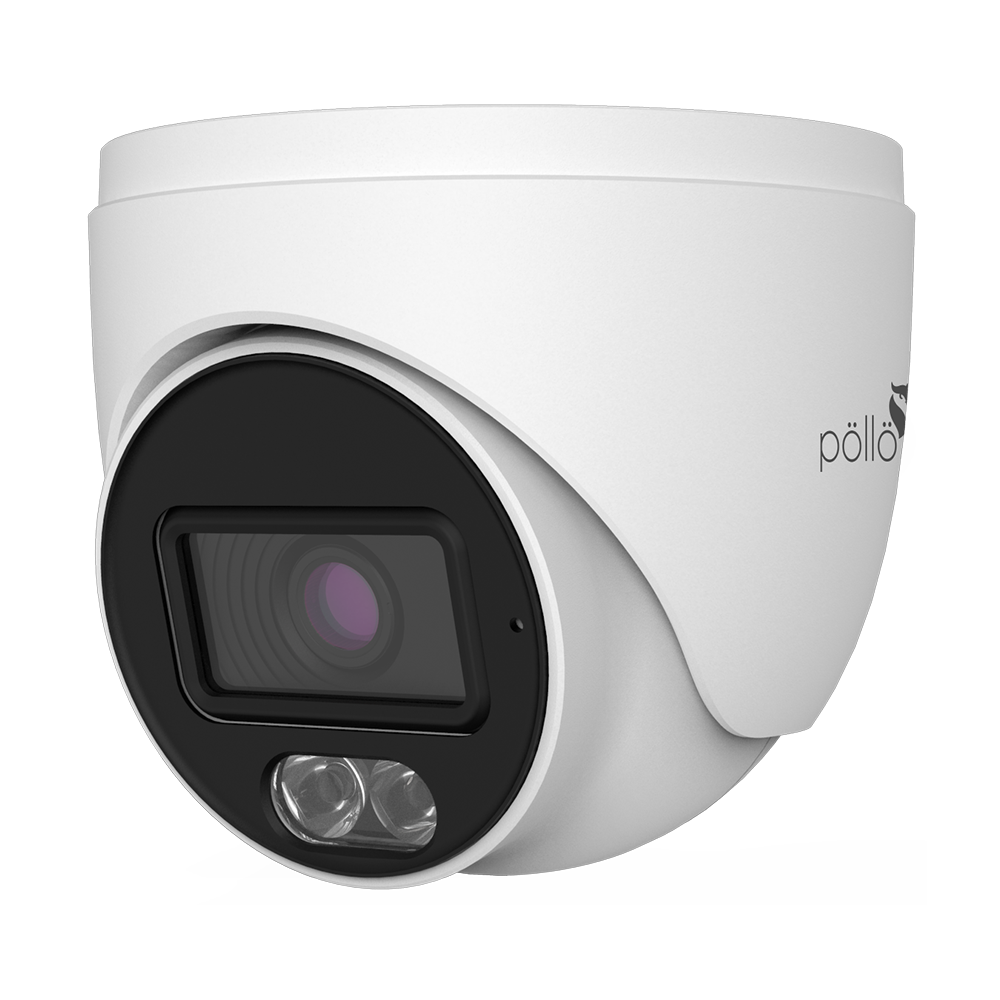

PLC-332P-AU-WR3/PM 2MP Warmlight Full Color FHD Dome Camera | Support Audio On Coax | 20-30m Warm Light Distance | IP67

0.0

• 0 verified reviews

Rs.5,500.00

Tax included. Shipping calculated at checkout.

In Stock & Ready to Ship

Free Delivery on orders over $50

Delivery 1-2 Days

NATIONAL WIDE

3 Days Return

HASSLE FREE

3 Days Exchange

INSTANT PROCESS

1 Year Warranty

OFFICIAL SHIELD

100% SECURE PAYMENT

PLC-332P-AU-WR3/PM 2MP Warmlight Full Color FHD Dome Camera | Support Audio On Coax | 20-30m Warm Light Distance | IP67

Rs.5,500.00

PLC-332P-AU-WR3/PM
2MP Warmlight Full Color FHD Dome Camera
Support Audio On Coax
20-30m Warm Light Distance
IP67
LED Light can be Turned-on or Off Automatically
Support BLC & DWDR
Specifications
Downloads
Model No. PLC-332P-AU-WR3/PM
Image Sensor 1/2.8" CMOS
Resolution 2MP
Image Size 1920 x 1080
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto
LED Distance 20 ~30m
Frame Rate 30fps(60Hz); 25fps (50Hz)
Min. Illumination 0 lux (LED ON)
Lens 2.8 mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP67
Function Control OSD (COC Control)
Smart LED Manual or Auto mode
ICR NO
Digital WDR Yes
Digital DNR Yes, 2D DNR
AGC Yes
Auto White Balance Yes
BLC Yes
HLC Yes
Sharpness Yes
Contrast Yes
Image Setting Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Power Supply DC12V (± 15%)
Power Consumption LED OFF: < 1W; LED ON: < 4W
Working Environment - 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
Dimensions (mm) 162.1 × 74.8 × 73.8
Weight (net) Approx. 0.37KG

PLC-332P-AU-WR3/PM 2MP Warmlight Full Color FHD Dome Camera, Support Audio On Coax, 20-30m Warm Light Distance, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR.

PLC-332P-AU-WR3/PM 2MP Warmlight Full Color FHD Dome Camera. Features Audio On Coax, 20-30m Warm Light Distance, IP67, automatic LED light control, BLC & DWDR. View specifications and downloads.

PLC-332P-AU-WR3/PM, 2MP Warmlight Full Color FHD Dome Camera, Support Audio On Coax, 20-30m Warm Light Distance, IP67, LED Light can be Turned-on or Off Automatically, Support BLC & DWDR, 1/2.8" CMOS, 2MP, 1920 x 1080, AHD, TVI, CVI, CVBS, PAL, NTSC, Auto Electronic Shutter, LED Distance 20~30m, Frame Rate 30fps, 25fps, 0 lux LED ON, 2.8mm Lens, M12, ≥52dB, OSD, COC Control, Smart LED Manual or Auto mode, ICR NO, Digital WDR, Digital DNR, 2D DNR, AGC, Auto White Balance, BLC, HLC, Sharpness, Contrast, DC12V ±15%, LED OFF <1W, LED ON <4W, -30°C ~ 50°C, 162.1×74.8×73.8mm, 0.37KG

Technical Specifications

Camera features: LED backlight, Adjustable shutter speed, Digital zoom

Camera sensor type: CMOS

Color pattern: White

Connection method: Wired

Connectivity technology: Wired

Material: Plastic

Power source: DC-powered

Surveillance camera design: Dome

Surveillance camera mounting type: Ceiling, Wall

Frequently Asked Questions

What is the model number of this camera and what are its key features? +

PLC-332P-AU-WR3/PM. It is a 2MP Warmlight Full Color FHD Dome Camera, supports Audio On Coax, has 20-30m Warm Light Distance, IP67 rating, LED Light can be Turned-on or Off Automatically, and supports BLC & DWDR.

What are the video output formats and audio specifications? +

Video output is AHD / TVI / CVI / CVBS. Audio is supported via coaxial (Audio On Coax).

What is the warm light distance, lens specification, and minimum illumination? +

LED distance is 20 ~ 30m. Lens is 2.8 mm with M12 mount. Minimum illumination is 0 lux (LED ON).

What is the ingress protection rating, power supply, and power consumption? +

Ingress protection is IP67. Power supply is DC12V (±15%). Power consumption: LED OFF: < 1W; LED ON: < 4W.
