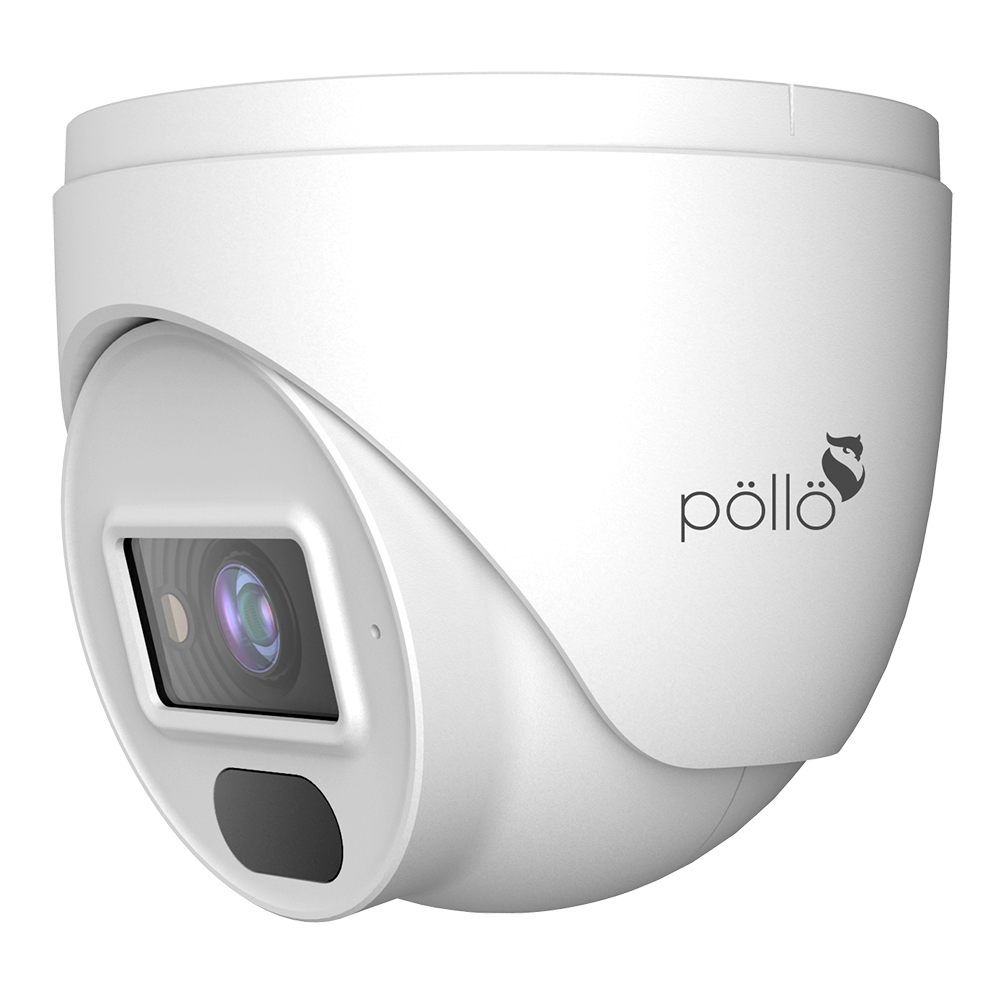

PLC-335P-IR2/PM 5MP FHD Camera | 1/2.5″ CMOS Sensor Progressive Scan | 20-30m IR Distance | 30fps, 5MP | Output: AHD/CVI/TVI/CVBS | 2.8mm Lens | IP67
PLC-335P-IR2/PM
5MP FHD Camera
1/2.5″ CMOS Sensor Progressive Scan
20-30m IR Distance
30fps, 5MP
Output: AHD/CVI/TVI/CVBS
2.8mm Lens
HLC, BLC & Digital DWDR
IP67
Specifications
Downloads
Model No. PLC-335P-IR2/PM
Image Sensor 1/2.5" CMOS Sensor Progressive Scan
Resolution 5MP
Image Size 2560 x 1936
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto
IR Distance 20 ~30 m
Frame Rate 5MP@20fps/4MP@30fps
Min. Illumination Colour: 0.01lux@F1.2, AGC ON; B/W: 0 lux with IR
Lens 2.8 mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP67
Function Control OSD (COC Control)
Day & Night ICR
Digital WDR Yes
Digital NR Yes, 2D DNR
AGC Yes
Auto White Balance Yes
BLC Yes
FLC Yes
Defog Yes
HLC Yes
Sharpness Yes
Mirror Yes
Smart IR Yes
Image Setting Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360
Power Supply DC12V (± 15%)
Power Consumption IR OFF: < 1W; IR ON: < 3W
Working Environment - 10 °C ~ 40 °C, 10 % ~ 90 % (relative humidity)
Dimensions (mm) Ф 94.8 x 82.8
Weight (net) Approx. 0.17KG
PLC-335P-IR2/PM 5MP FHD Camera with 1/2.5″ CMOS Sensor Progressive Scan, 20-30m IR Distance, 30fps 5MP, Output: AHD/CVI/TVI/CVBS, 2.8mm Lens, HLC, BLC & Digital DWDR, IP67.
PLC-335P-IR2/PM 5MP FHD Camera. Features 1/2.5″ CMOS Sensor Progressive Scan, 20-30m IR Distance, 30fps 5MP, AHD/CVI/TVI/CVBS output, 2.8mm Lens, HLC, BLC & Digital DWDR, IP67. View specifications and downloads.
PLC-335P-IR2/PM, 5MP FHD Camera, 1/2.5" CMOS Sensor Progressive Scan, 20-30m IR Distance, 30fps, 5MP, AHD, TVI, CVI, CVBS, 2.8mm Lens, M12, HLC, BLC, Digital DWDR, IP67, 2560 x 1936, PAL, NTSC, 5MP@20fps, 4MP@30fps, Colour 0.01lux@F1.2, B/W 0 lux with IR, S/N Ratio ≥52dB, COC Control, ICR, 2D DNR, AGC, Auto White Balance, FLC, Defog, Sharpness, Mirror, Smart IR, DC12V ±15%, IR OFF <1W, IR ON <3W, -10°C ~ 40°C, Ф94.8 x 82.8mm, 0.17KG
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this camera and what are its key features? +
A: PLC-335P-IR2/PM. It is a 5MP FHD Camera with 1/2.5" CMOS Sensor Progressive Scan, 20-30m IR Distance, 30fps 5MP, Output: AHD/CVI/TVI/CVBS, 2.8mm Lens, HLC, BLC & Digital DWDR, and IP67 rating.
Q2: What is the resolution and image sensor size? +
A: Resolution is 5MP with image size of 2560 x 1936. Image sensor is 1/2.5" CMOS Sensor Progressive Scan.
Q3: What is the IR distance, lens specification, and minimum illumination? +
A: IR distance is 20 ~ 30m. Lens is 2.8 mm with M12 mount. Minimum illumination: Colour: 0.01lux@F1.2, AGC ON; B/W: 0 lux with IR.
Q4: What is the ingress protection rating, angle adjustment, power supply, and power consumption? +
A: Ingress protection is IP67. Angle adjustment: Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360. Power supply is DC12V (±15%). Power consumption: IR OFF: < 1W; IR ON: < 3W.
