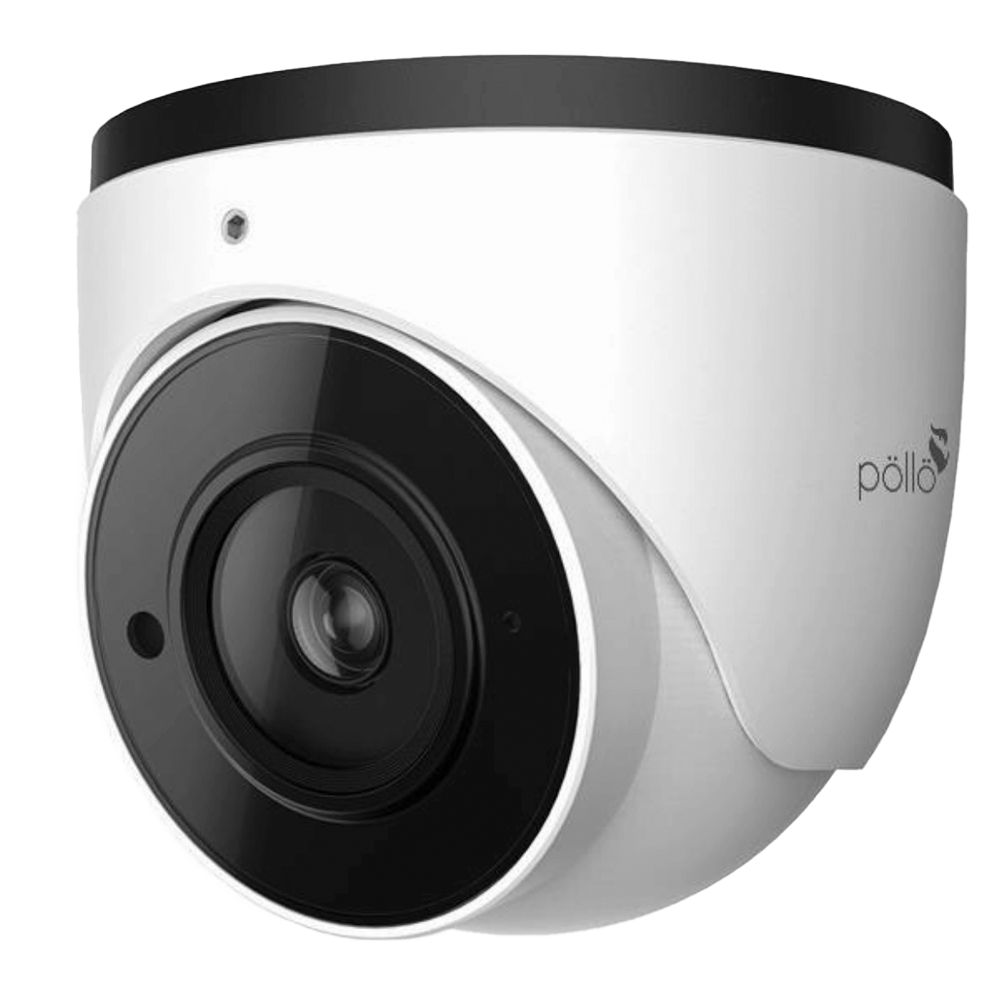

PLC-338M-IR3/PM 8MP Dome FHD Camera | Support AHD/TVI/CVI | 20-30m IR Distance | IP67 | Support OSD Menu | Support BLC & DWDR
PLC-338M-IR3/PM
8MP Dome FHD Camera
Support AHD/TVI/CVI
20-30m IR Distance
IP67
Support OSD Menu
Support BLC & DWDR
Specifications
Downloads
Model No. PLC-338M-IR3/PM
Image Sensor 1 / 2.7" CMOS
Resolution 8MP@15fps (Max)
Image Size 3840x2160
Video Output AHD / TVI / CVI / CVBS
Image System PAL / NTSC
Electronic Shutter Auto
LED Distance 20 ~ 30 m
Frame Rate 15fps(60Hz), 12.5fps(50Hz)
Min. Illumination Color: 0.01 lux@F1.2, AGC ON; B/W: 0 lux with IR
Lens 3.6 mm
Lens Mount M12
S / N Ratio ≥52dB (AGC OFF)
Ingress Protection IP67
Function Control OSD (COC Control)
Day & Night ICR
Digital WDR Yes
Digital NR Yes
AGC Yes
Auto White Balance Yes
BLC Yes
Defog No
LSC No
HLC No
Sharpness Yes
Mirror No
Smart IR No
Image Setting Yes
Defect Correction Auto
Language English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Power Supply DC12V (± 10%)
Power Consumption IR OFF: < 1W; IR ON : < 4W
Working Environment - 30 °C ~ 50 °C, 10 % ~ 90 % (humidity)
Dimensions (mm) Ф 94.6 x 82.8
Weight (net) Approx. 0.41KG
PLC-338M-IR3/PM 8MP Dome FHD Camera, Support AHD/TVI/CVI, 20-30m IR Distance, IP67, Support OSD Menu, Support BLC & DWDR.
PLC-338M-IR3/PM 8MP Dome FHD Camera. Features AHD/TVI/CVI support, 20-30m IR Distance, IP67, OSD Menu, BLC & DWDR. View specifications and downloads.
PLC-338M-IR3/PM, 8MP Dome FHD Camera, Support AHD/TVI/CVI, 20-30m IR Distance, IP67, Support OSD Menu, Support BLC & DWDR, 1/2.7" CMOS, 8MP@15fps Max, 3840x2160, AHD, TVI, CVI, CVBS, PAL, NTSC, Auto Electronic Shutter, LED Distance 20~30m, 15fps(60Hz), 12.5fps(50Hz), Color 0.01 lux@F1.2, B/W 0 lux with IR, 3.6mm Lens, M12, ≥52dB, COC Control, ICR, Digital WDR, Digital NR, AGC, Auto White Balance, BLC, Sharpness, DC12V ±10%, IR OFF <1W, IR ON <4W, -30°C ~ 50°C, Ф94.6 x 82.8mm, 0.41KG
Technical Specifications
Frequently Asked Questions
Q1: What is the model number of this camera and what are its key features? +
A: PLC-338M-IR3/PM. It is an 8MP Dome FHD Camera, supports AHD/TVI/CVI, has 20-30m IR Distance, IP67 rating, supports OSD Menu, and supports BLC & DWDR.
Q2: What is the resolution and maximum frame rate? +
A: Resolution is 8MP with image size of 3840x2160. Maximum frame rate is 8MP@15fps (Max).
Q3: What is the LED distance, lens specification, and minimum illumination? +
A: LED distance is 20 ~ 30m. Lens is 3.6 mm with M12 mount. Minimum illumination: Color: 0.01 lux@F1.2, AGC ON; B/W: 0 lux with IR.
Q4: What is the ingress protection rating, power supply, and power consumption? +
A: Ingress protection is IP67. Power supply is DC12V (±10%). Power consumption: IR OFF: < 1W; IR ON: < 4W.
