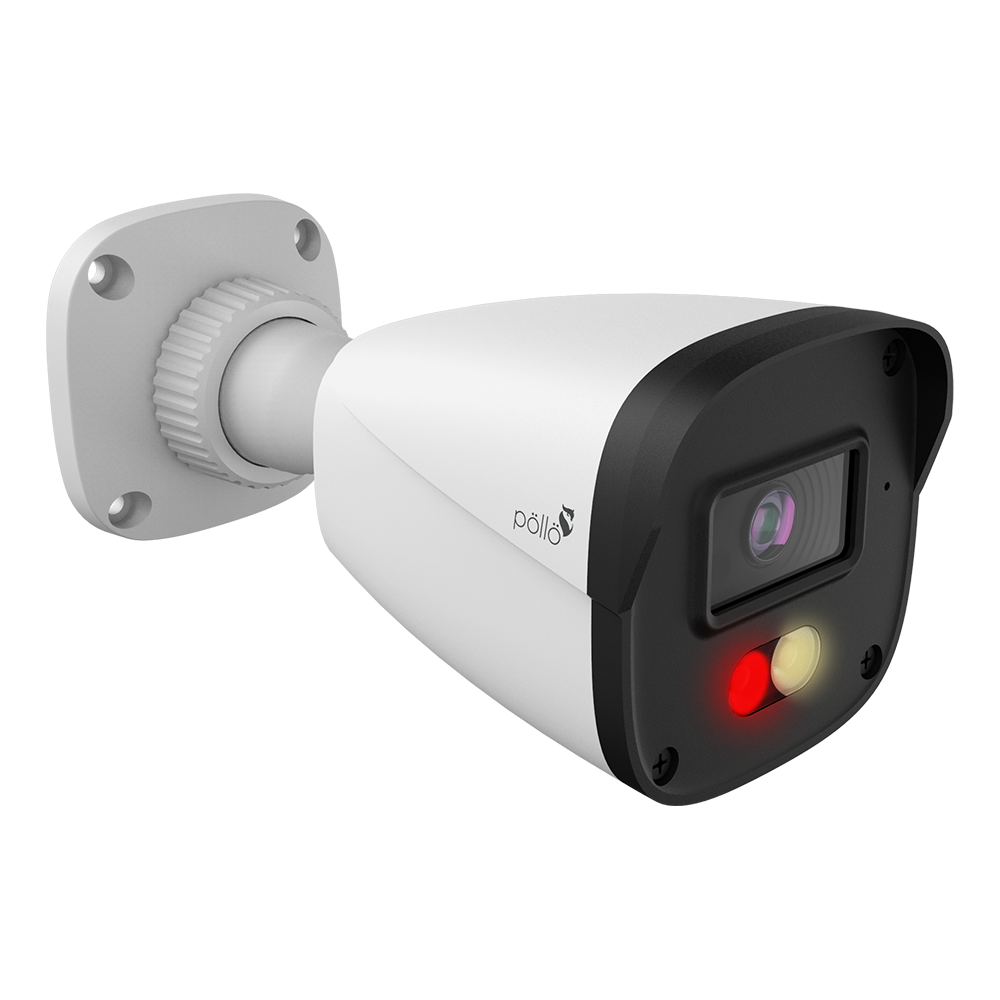

PLC-423P-AU-DL3/PM 3MP Full Colour Network Bullet Camera | H.265+ Compression | 20~30m Dual Light Night Vision | Support SMD | PoE | IP67

PLC-423P-AU-DL3/PM
3MP FULL COLOUR NETWORK BULLET CAMERA
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution: 3MP (2304 × 1296)
20~30m Dual Light Night Vision
Support SMD
Auto day/night switch
3D DNR, WDR, HLC, BLC, etc.
ROI coding
Specifications
Downloads
Model PLC-423P-AU-DL3/PM
Image Sensor 1 / 3" CMOS
Image Size 2304 × 1296
Electronic Shutter 1 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0.0462 lux @F2.2, AGC ON; 0 lux (Illumination on)
Lens 2.8mm@F2.2, Horizontal FoV: 93°; Vertical FoV:52°; Diagonal FoV:106° 3.6mm@F2.2, Horizontal FoV:74°; Vertical FoV:40°; Diagonal FoV:85°4.0mm@F2.2, Horizontal FoV: 72°, Vertical FoV 38°, Diagonal FoV 82°
Auto Focus Yes
Lens Mount M12
Day & Night Day & Night ICR
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defog Yes
NR 3D DNR
S/N Ratio ≥50dB
Angle Adjustment Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Video Compression Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264
H.265 Compression Standard Main Profile@Leve4.1 High Tier
Resolution 3MP(2304×1296), 1080P(1920×1080), 720P(1280×720), D1, 640×360, VGA(640×480), 480×240, CIF
Main Stream 3MP/1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps)
Sub Stream D1/VGA/640× 360/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 3 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A/U
Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI Each ROI to be configured separately
Network RJ45
Video Output No
Audio 1CH built-in MIC
Storage No
Reset No
Remote Monitoring Web browser /POLLO NVR/PVMS Plus/Pollo Live Plus Mobile App
Web Browser IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+
Online Connection Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol TCP/IP, UDP, IPv4, IPv6, DHCP, NTP, SNMP, RTSP, 802.1x, UPnP, SMTP, FTP, HTTP, HTTPS, QoS
Interface Protocol ONVIF
Storage Network remote storage
Motion Detection Yes
Smart Event Region intrusion detection, line crossing detection, video exception (scene change, video blur and abnormal colour detection)
General Function Watermark, video mask, heartbeat
Security Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP
PoE Yes, IEEE802.3af
Supplement Light Range IR range: 20 ~ 30 m; white light range:20 ~ 30 m
Ingress Protection IP67
Power Supply PoE power supply
Power Consumption < 5W
Operating Environment - 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing)
Storage Environment - 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions (mm) 162.1 × 74.8 × 73.8
Weight (net) Approx. 0.24KG
Installation Ceiling mounting; Wall mounting
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)
