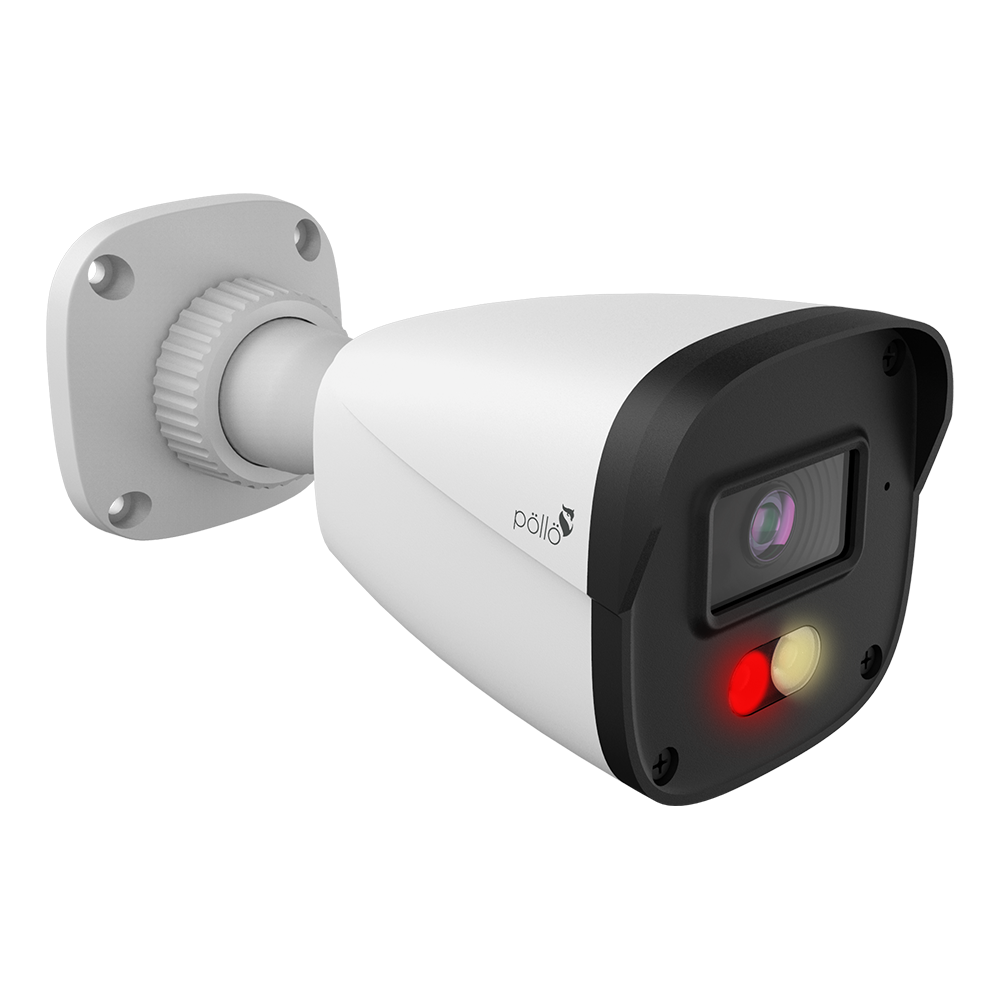

PLC-424P-AU-DL3PM 4MP Full Colour IP Camera | 1/1.8" Progressive Scan CMOS | WDR 120dB | Fixed Iris | 1CH Built-in MIC | PoE | IP67

PLC-424P-AU-DL3PM
4MP FULL COLOUR IP CAMERA
Fixed Iris
Digital WDR
1CH built-in MIC
Network remote storage
Ceiling mounting; Wall mounting
Specifications
Downloads
Model PLC-424P-AU-DL3PM
Image Sensor 1/1.8" Progressive Scan CMOS
Image Size 2560×1440
Electronic Shutter 1 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination Min Illumination: 0.0001 Lux @ (F1.0, AGC ON), Full-Time Color Imaging
Lens 2.8mm@F2.2, Horizontal FoV: 96°;Vertical FoV:53.7°;Diagonal FoV:112° 3.6mm@F2.2, Horizontal FoV:74.5°;Vertical FoV:41.5°;Diagonal FoV:86.5°
Focus Fixed
Lens Mount M12
Day & Night ICR
Wide Dynamic Range WDR 120 dB
BLC Yes
HLC Yes
Digital NR Yes
S/N Ratio ≥50dB
Angle Adjustment Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360°
Video Compression Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG
H.265 Compression Standard Main Profile@Leve4.1 High Tier
Resolution 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, VGA (640× 480), 480× 240, CIF
Main Stream 4MP/ 3MP/1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps)
Sub Stream D1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 3 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A/U
Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI Each ROI to be configured separately
ROM 16MB
RAM 64MB
Network RJ45
Video Output No
Audio 1CH built-in MIC
Remote Monitoring Web browser /POLLO NVR/PVMS Plus/Pollo Live Plus Mobile App
Web Browser IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+
Online Connection Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTP
Interface Protocol ONVIF
Storage Network remote storage
Motion detection Support smart motion detection; filtering motion alarm triggered by other target types except humans.
Smart Event (Human) region intrusion detection, (human)line crossing detection
General Function Watermark, video mask, heartbeat
Security Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP
PoE Yes, IEEE802.3af
Supplement Light Range IR range: 20 ~ 30 m; white light range:20 ~ 30 m
Ingress Protection IP67
Power Supply DC12V/PoE
Power Consumption < 5W
Operating Environment - 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing)
Storage Environment - 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions (mm) 162.1 × 74.8 × 73.8
Weight (net) Approx. 0.25KG
Installation Ceiling mounting; Wall mounting
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
