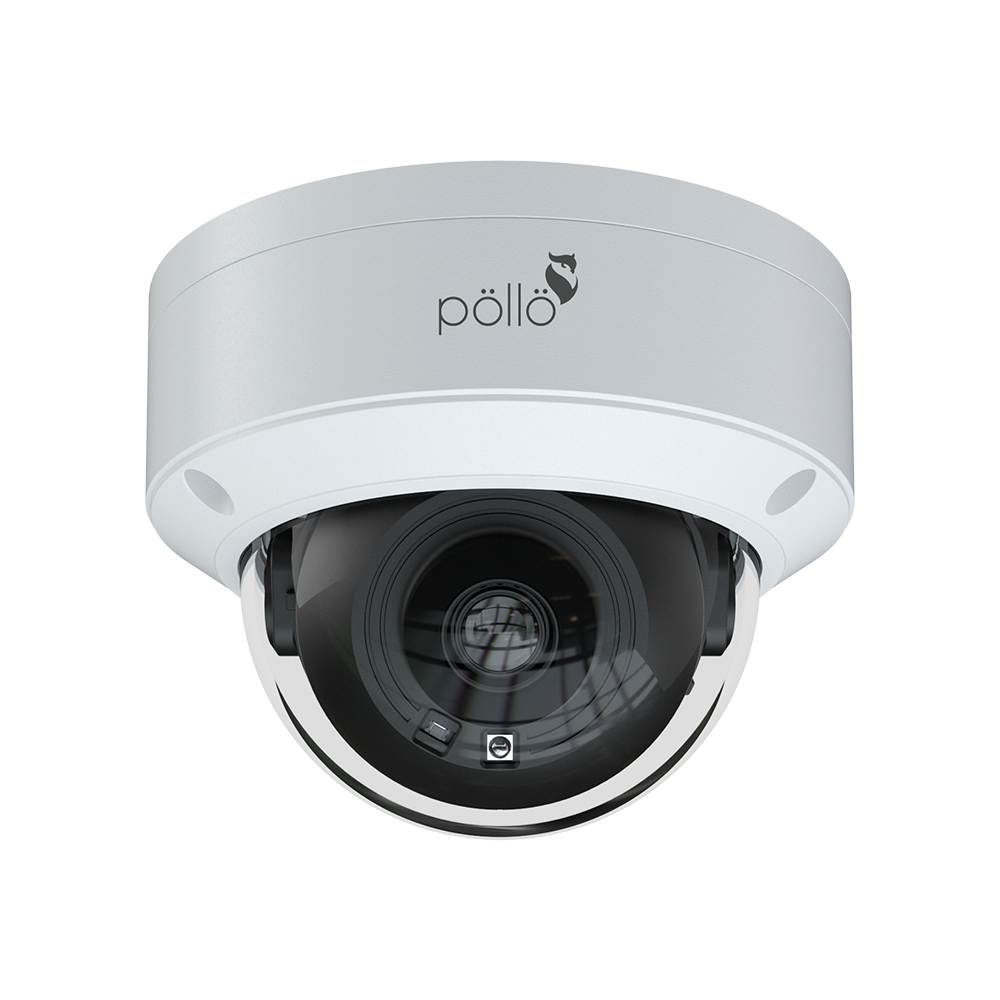

PLC-432M-AUK-IR3/PM 2MP Built-In Audio Dome Camera | H.265+ Compression | 20~30m IR Night View | 3D DNR, WDR, HLC, BLC, Smart IR | IP67&IK10 | PoE

PLC-432M-AUK-IR3/PM
2MP Built-In Audio Dome Camera
H.265+ /H.265 / H.264+/ H.264/ MJPEG coding
Max. resolution: 2MP (1920 × 1080)
ICR auto switch, true day / night vision
3D DNR, WDR, HLC, BLC, smart IR, etc.
20~30m IR night view distance
Specifications
Downloads
Model Number PLC-432M-AUK-IR3/PM
Image Sensor 1 / 2.8 "CMOS
Image Size 1920×1080
Electronic Shutter 1/3s ~ 1 / 100000s
Iris Type Fixed Iris
Min. Illumination 0.008 lux @F1.6, AGC ON; 0 lux with IR
Lens 2.8mm@F1.6, Horizontal FoV: 107°; Vertical FoV:56°; Diagonal FoV:126° 3.6mm@F1.6, Horizontal FoV:89°; Vertical FoV:47.5°; Diagonal FoV:104°
Focus Fixed
Lens Mount M12
Day & Night ICR
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Digital NR Yes
Angle Adjustment Pan: 0°~355°; Tilt: 0°~70°; Rotation: 0°~355°
Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG
H.265 Compression Standard Main Profile@Leve4.1 High Tier
Resolution 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF
Main Stream 60Hz: 1080P/720P(1~30fps); 50Hz: 1080P/720P(1~25fps)
Sub Stream 60Hz: D1/CIF (1~30fps);50Hz: D1/CIF (1~25fps)
Bit Rate 128 Kbps ~ 4 Mbps
Bit Rate Type VBR / CBR
Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI Each ROI to be configured separately
Network RJ45
Video Output No
Audio 1CH audio input
Storage Built-in micro-SD card slot, up to 256GB
Reset No
Remote Monitoring Web browser /PVMS Plus/Pollo Live Plus
Web Browser IE (plug-in required)/Google Chrome/Edge/Firefox/Safari
Online Connection UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro-SD card storage
Smart Alarm Motion detection, SD card full, SD card error
Smart Event Video Exception (scene change, video blur and video cast detection), line crossing detection and region intrusion detection
General Function Watermark, IP address filtering, video mask, heartbeat, illegal login lock,
PoE Yes (IEEE802.3af)
IR Distance 20 ~ 30 m
Ingress Protection IP67&IK10
Power Supply DC12V/PoE
Power Consumption < 3.5W
Operating Environment - 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)
Storage Environment - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm ) Ø 110 × 83.3
Weight ( net ) Approx. 0.5KG
Installation Ceiling mounting (Wall mounting available with the junction box and bracket)
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
