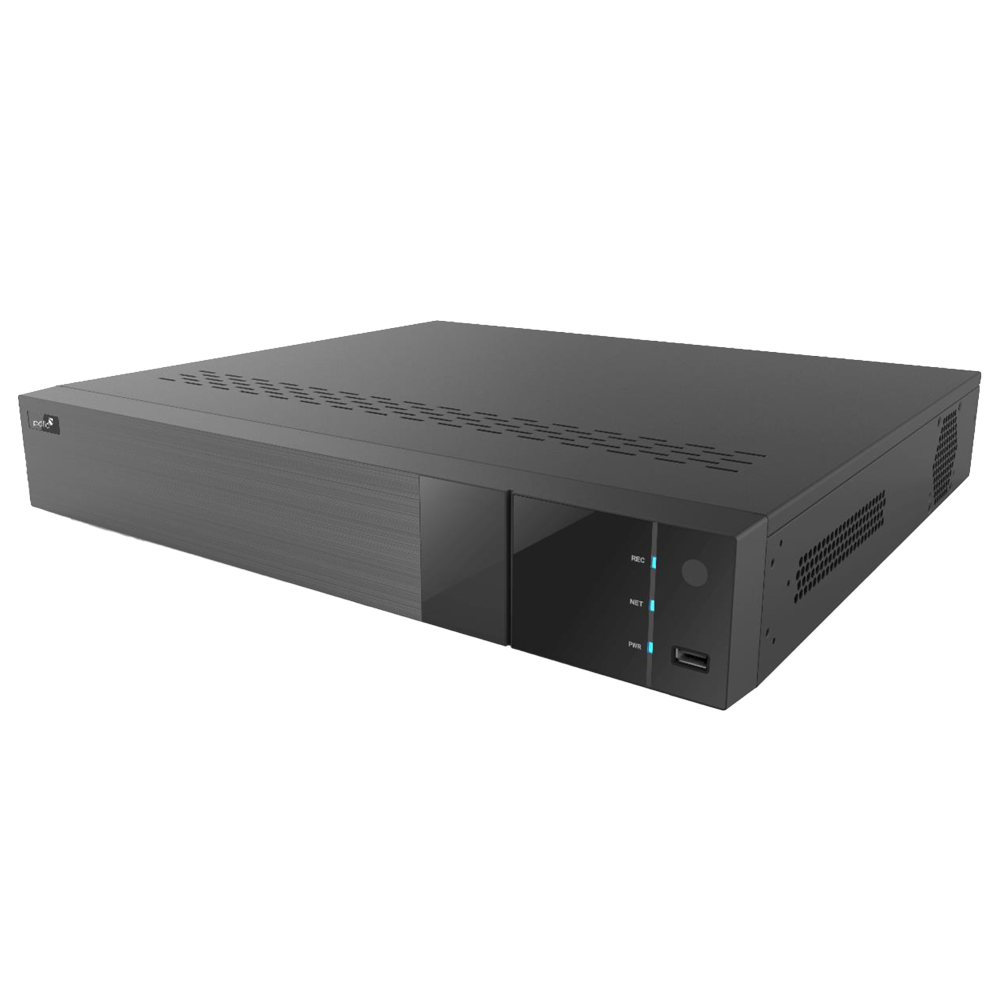

Pollo-CCTV Cameras DVR PLC-1808H1/PM-4K | 08 Channel 4K Input | TVI/AHD/DVR/IP | H.264/H.265 | 1 SATA Up to 10TB | Input/Output Bandwidth 32/96 Mbps

0.0

• 0 verified reviews

Rs.38,000.00

Tax included. Shipping calculated at checkout.

In Stock & Ready to Ship

Free Delivery on orders over $50

Delivery 1-2 Days

NATIONAL WIDE

3 Days Return

HASSLE FREE

3 Days Exchange

INSTANT PROCESS

1 Year Warranty

OFFICIAL SHIELD

100% SECURE PAYMENT

Rs.38,000.00

Pollo-CCTV Cameras DVR PLC-1808H1 PM 4K

08 channel 4K Input
TVI/AHD/DVR/IP
8 Channel IP (Up To 16 Channels)
H.264/H.265 Video Compression
1 SATA Interface Up-to 10TB Per Interface
Input/Output Bandwidth 32/96 Mbps
Pollo-CCTV Cameras DVR PLC-1808H1 PM 4K quantity
1
Add to cart
Categories: CCTV Cameras, Pollo
DescriptionReviews (0)
Description
Model No. PLC-1808H1/PM-4K
OS Embedded Linux
Analog Video Input BNC × 8 BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live)
IP Video Input 8CH (up to 16CH) Up to 8MP@20fps; lower than 8MP@30fps
Total Input 16CH
Output HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS (used as the main or spot output)
Compression H.264/H.265
Multi-screen Display 1/4/6/8/9/13/16
Input RCA × 8
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Resolution 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1
Frame Rate Analog Channel: 4K@6fps/7fps (PAL/NTSC) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP/3MP@12fps/ 15fps (PAL / NTSC) 4MP Lite/1080P/720P/WD1/D1@25fps / 30fps (PAL / NTSC) IP Channel: 8MP@ 20fps (PAL / NTSC); lower than 8MP@25fps / 30fps (PAL / NTSC)
Bit Rate 32Kbps ~ 5Mbps
Mode Manual, timed, motion, smart event
Playback 4CH
Search Time slice / time / event / tag search
Smart Search Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Mode Manual, motion, exception, smart event
Playback 8CH
Search Time slice / time / event / tag search
Smart Search Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Mode Manual, motion, exception, smart event
Input 8CH
Output 2CH
Interface RJ 45 1000Mbps × 1
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth 32Mbps
Outgoing Bandwidth 96Mbps
Client Connection Max. 10 users' access
OS iOS, Android
HDD SATA× 1, up to 10TB per HDD; E-SATA× 1
Local Backup U disk, USB mobile HDD
Network Backup Yes
RS 485 Yes (half-duplex), connect to PTZ or keyboard
USB USB 3.0 × 1; USB2.0 × 1
Remote Controller Optional
Power Supply DC12V / 4A
Consumption ≤ 15W (without HDD)
Dimensions(mm) 380 × 268 × 45 (W × D × H)
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Comply with Directive EU RoHS, WEEE, REACH

Pollo-CCTV Cameras DVR PLC-1808H1/PM-4K. 08 channel 4K Input, TVI/AHD/DVR/IP, 8 Channel IP (Up To 16 Channels), H.264/H.265 Video Compression, 1 SATA Interface Up-to 10TB, Input/Output Bandwidth 32/96 Mbps.

Pollo-CCTV Cameras DVR PLC-1808H1/PM-4K. Features 08 channel 4K input, TVI/AHD/DVR/IP, 8 IP channels (up to 16), H.264/H.265 compression, 1 SATA up to 10TB, input/output bandwidth 32/96 Mbps. View specifications and downloads.

Pollo-CCTV Cameras DVR PLC-1808H1 PM 4K, 08 channel 4K Input, TVI/AHD/DVR/IP, 8 Channel IP (Up To 16 Channels), H.264/H.265 Video Compression, 1 SATA Interface Up-to 10TB Per Interface, Input/Output Bandwidth 32/96 Mbps, CCTV Cameras, Pollo, PLC-1808H1/PM-4K, Embedded Linux, BNC × 8, 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps live, 8CH IP up to 16CH up to 8MP@20fps, lower than 8MP@30fps, 16CH Total Input, HDMI 3840×2160, VGA, BNC CVBS, H.264/H.265, Multi-screen Display 1/4/6/8/9/13/16, RCA × 8 Audio Input, RCA × 1 Audio Output, Two-way audio, G.711(U/A), Resolution 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite/3MP/1080P/720P/WD1/D1, 32Kbps ~ 5Mbps, Playback 8CH, RJ45 1000Mbps, TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP, Incoming Bandwidth 32Mbps, Outgoing Bandwidth 96Mbps, Max 10 users access, iOS, Android, SATA×1 up to 10TB, E-SATA×1, USB 3.0 × 1, USB2.0 × 1, DC12V / 4A, ≤15W without HDD, 380×268×45mm, -10~50°C, CE, FCC, EU RoHS, WEEE, REACH

Technical Specifications

Video port type: HDMI, VGA

Frequently Asked Questions

Q1: What is the model number of this DVR? +

A: Model No. is PLC-1808H1/PM-4K.

Q2: How many video inputs and total channels does this DVR support? +

A: Analog video input is BNC × 8 supporting 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live). IP video input is 8CH (up to 16CH) up to 8MP@20fps; lower than 8MP@30fps. Total input is 16CH.

Q3: What video outputs, compression formats, and audio inputs are available? +

A: Video output: HDMI × 1 (3840×2160 / 1920×1080 / 1280×1024 / 1024×768), VGA × 1, and BNC × 1 (CVBS). Compression: H.264/H.265. Audio input: RCA × 8. Audio output: RCA × 1.

Q4: What is the power supply, consumption, and working environment? +

A: Power supply is DC12V / 4A. Power consumption is ≤15W (without HDD). Working environment: -10~50°C, 10%~90% humidity.
