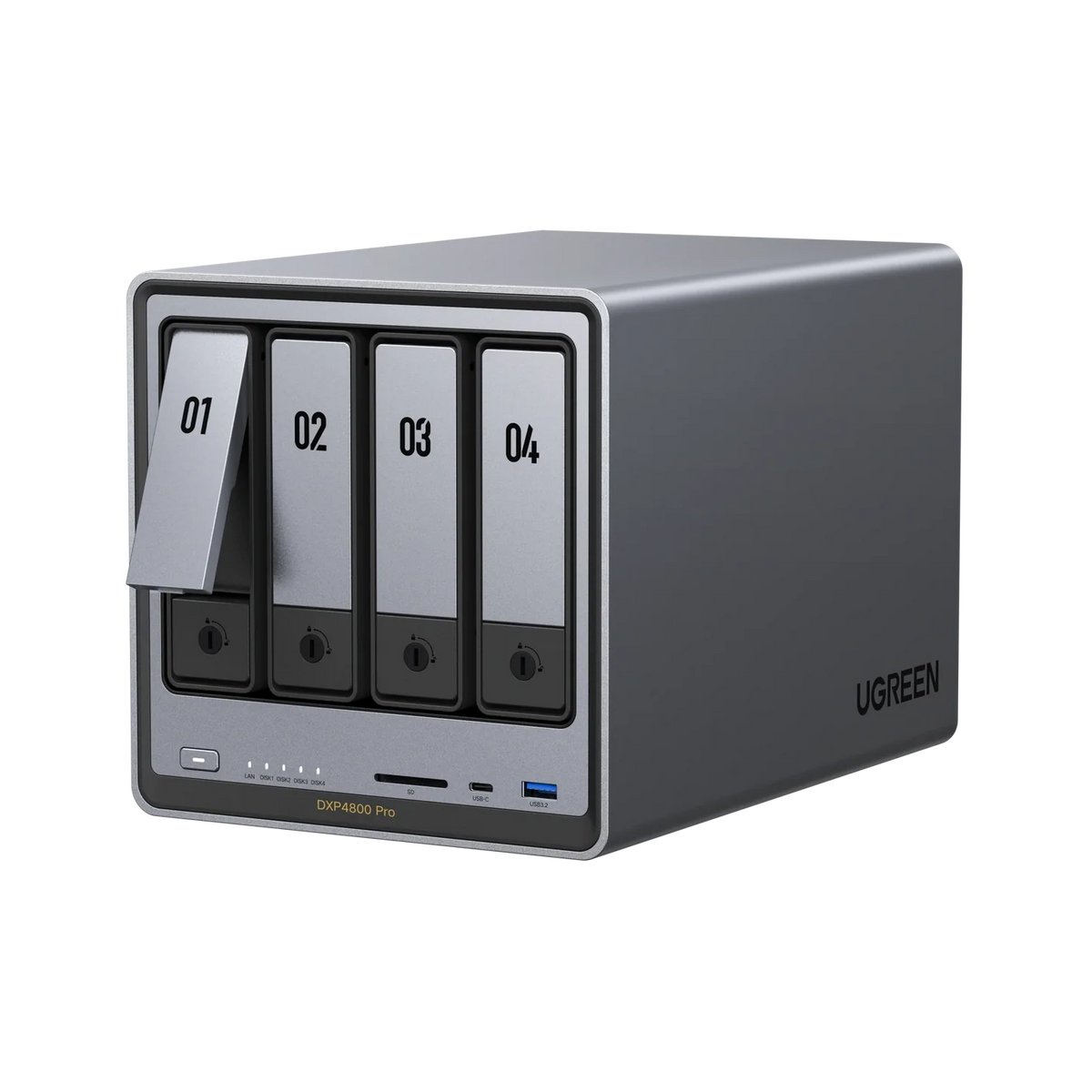

UGREEN NASync DXP4800 Pro
4-bay,Intel® Core™ i3-1315U Processor CPU, 10GbE + 2.5GbE LAN, Dual M.2 NVMe SSD Slots, diskless
Easy Access from Anywhere
Cost-effective
Broad Compatibility
The Highest-Funded NAS Product on Kickstarter
Port Layout
What's in the box
- Pro-Performance NAS Engineered for Demanding Workflows: Intel-powered NAS for offices and power users, delivering smooth VM and Docker performance.
- Ultimate Flexibility with Docker, VMs & Smart AI: Supports Docker and VMs; on-device AI photo recognition ensures privacy..
- Intel® Core™ i3-1315U Processor: Able to handle demanding tasks concurrently, from Docker containers and virtual machines to file sync and media transcoding
- Massive 144TB Storage & Intuitive All-in-One System: 144TB capacity, M.2 SSD cache, and UGOS Pro OS for all-in-one management.
- Dual M.2 NVMe SSD Slots: Set up SSD caching to speed up everyday actions like photo previews, app loading, and general system operation.
- Dual High-Speed Network Ports (10GbE + 2.5GbE): 2.5GbE provides smooth performance on common networks, with a 10GbE port for high-speed connections when available.
- Enterprise-Grade Data Security & Privacy: RAID 0/1/5/10, 2048-user controls, encrypted Data Vault, TÜV & TRUSTe certified.
- 2-Year Warranty: Enjoy 2 years of protection with UGREEN.
- Note: Storage disks sold separately. Please check our compatibility list for full details.
SKU 85888 Model DXP4800 Pro Supported Languages English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 Drive Bays 4-Bay (SATA) Operating System UGOS Pro CPU Model i3-1315U CPU Brand & Architecture Intel® Core™ i3-1315U Processor Memory (RAM) 8GB DDR5 5600MHz RAM (Expandable to 96GB) ODECC Supported Expandable RAM (max) 96GB Flash Memory (System Disk) SSD 128GB SATA Drive Bays 4 M.2 SSD Drive Slots 2 RAID JBOD/Basic/0/1/5/6/10 Maximum Storage 144TB (4x 32TB + 2x 8TB) LAN Ports (RJ45) 1x 2.5GbE, 1x 10GbE PCIe Expansion - Thunderbolt™ 4 Ports - High-Speed USB Ports (Front Panel) 1x USB-C, 1x USB-A (both 10Gb/s) High-Speed USB Ports (Rear Panel) 1x USB-A (5Gb/s)
USB 2.0 (Rear Panel) 2x USB-A (480Mb/s) SD Card Reader SD 3.0 HDMI 4K Wi-Fi - Product Dimensions 10.1" × 7.0" × 7.0" Power Consumption 42.36W (drive access)
18.12W (drive hibernation)
Technical Specifications
Frequently Asked Questions
How does RAID work on a 4-bay NAS? +
RAID combines multiple drives to improve performance, redundancy, or both. The amount of usable storage depends on the RAID level chosen; for example, RAID 5 uses one drive's worth of capacity for parity, allowing the system to tolerate the failure of one drive without data loss. Click to read more RAID knowledge.
Which RAID Level is best for a 4-Bay NAS? +
For a 4bay NAS, the best RAID level depends on your priorities for data protection, performance, and usable storage capacity. The common RAID options for 4 drives include RAID 5, RAID 6, and RAID 10. If you’re unsure which setup offers the right balance for your needs, you can read our blog post on Best RAID NAS configuration for home users to explore detailed comparisons and real-world use cases.
How do I protect my data on a 4-bay NAS? +
Use RAID for redundancy, but also maintain external backups because RAID is not a substitute for backup. If you want to explore a range of reliable strategies beyond RAID, our guide on the top 7 data backup methods in 2025 covers everything from cloud syncing to offline rotation—ideal for building a solid protection plan.
How can I secure my 4-bay NAS against cyber threats? +
Use strong, unique passwords; disable or rename the default admin account; enable two-factor authentication; change default network ports; enable SSL for encrypted connections; set up a VPN for remote access; and keep firmware updated regularly. For a deeper dive into these tactics and why they matter, check out our full guide on ensuring home NAS network security.
