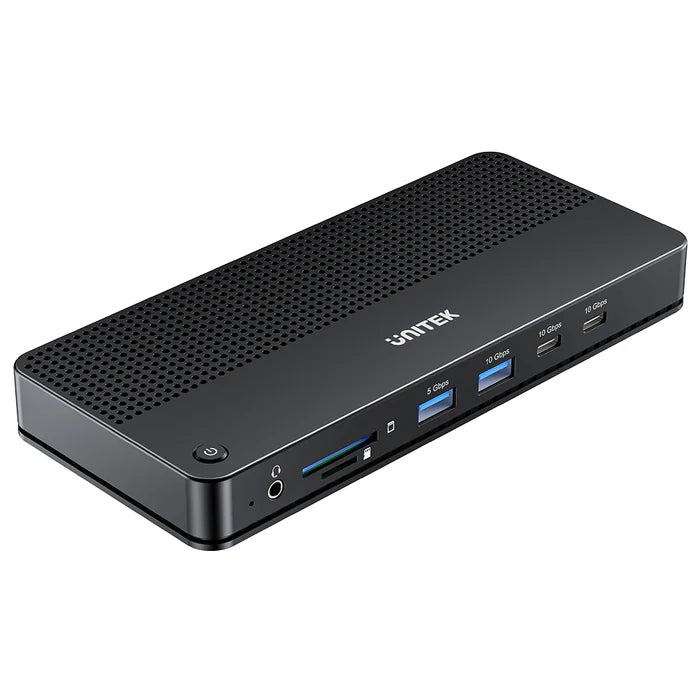

UNITEK D1104A01 13-in-1 USB-C Docking Station 8K@30Hz Triple 4K 100W PD 2.5Gb Ethernet for Windows Mac

Ultimate 13-in-1 Docking Station – 8K or Triple 4K Display, 100W PD, 2.5G Ethernet
The UNITEK D1104A01 transforms your USB-C laptop into a full-fledged workstation. With 13 essential ports, including HDMI 2.1 for single 8K or triple 4K monitors, 100W Power Delivery, 2.5 Gigabit Ethernet, high-speed USB 3.2 (10Gbps), and SD/MicroSD card slots, this docking station eliminates the need for multiple adapters and keeps your desk tidy.

Stunning Video Output – One 8K or Three 4K Displays
Single display mode: up to 8K@30Hz via HDMI (requires HDMI 2.1 cable and compatible monitor)

Dual display mode: 4K@60Hz + 4K@60Hz

Triple display mode: 4K@60Hz + 4K@60Hz + 4K@30Hz (depending on source and cable)

Perfect for creative professionals, financial traders, developers, and anyone needing massive screen real estate.

Windows vs. macOS Display Modes
Windows: Full Mirroring and Extend modes. In Extend mode, each display shows independent content – ideal for multitasking.

macOS: Mirroring mode shows the same content on all connected displays (macOS does not support MST for diverse content on multiple displays via a single USB-C). Extend mode is supported but limited to the native macOS extended desktop behavior. For Mac users, this dock provides excellent single 8K or dual 4K extended displays (depending on Mac model).

100W Power Delivery – Charge Your Laptop While Working
The USB-C PD port provides up to 100W of charging power to your laptop (20V/5A). Connect your laptop charger to the dock, and it will keep your device fully powered even under heavy load. No more running out of battery during critical tasks.

Blazing-Fast Networking – 2.5G Ethernet
The RJ45 port supports 2.5 Gigabit Ethernet (2500Mbps) – 2.5 times faster than standard Gigabit. Perfect for large file transfers, cloud backups, video streaming, and low-latency gaming. Backward compatible with 10/100/1000Mbps networks.

High-Speed Data Transfer – USB 3.2 (10Gbps)
The dock features multiple USB ports with up to 10Gbps transfer speeds:

1x USB-A 3.2 (10Gbps)

2x USB-C 3.2 (10Gbps)
Additional USB-A ports may be included (check product specifications). Connect external SSDs, high-speed flash drives, or other peripherals without bottleneck.

Dual Card Reader – SD 4.0 + Micro SD 3.0
Simultaneously read and write to SD and microSD cards. SD 4.0 supports high-speed transfers (up to 300MB/s depending on card). Ideal for photographers, videographers, and drone pilots who need to offload footage quickly.

2-in-1 Audio/Mic Port
A single 3.5mm jack supports both headphones and microphone (CTIA standard). Perfect for conference calls, gaming headsets, or private listening without extra adapters.

Universal Compatibility
Supports a wide range of operating systems:

Windows 10/11 (32-bit and 64-bit) – full MST support for multiple displays

macOS 10.6 and above – up to dual external displays (Mac limitations apply; M1/M2 MacBooks support single external display without DisplayLink)

Linux kernel 3.x and above

Plug and play – no drivers required for basic functions. For advanced features (e.g., Ethernet chipset), drivers may auto-install.

Sleek, Compact Design
Dimensions: 180mm x 80mm x 20.5mm. The aluminum body dissipates heat and looks professional on any desk.

What's in the Box
UNITEK 13-in-1 USB-C Docking Station

USB-C to USB-C cable (length not specified)

User manual

Note: Power adapter (for laptop charging), HDMI cables, and Ethernet cable not included.
