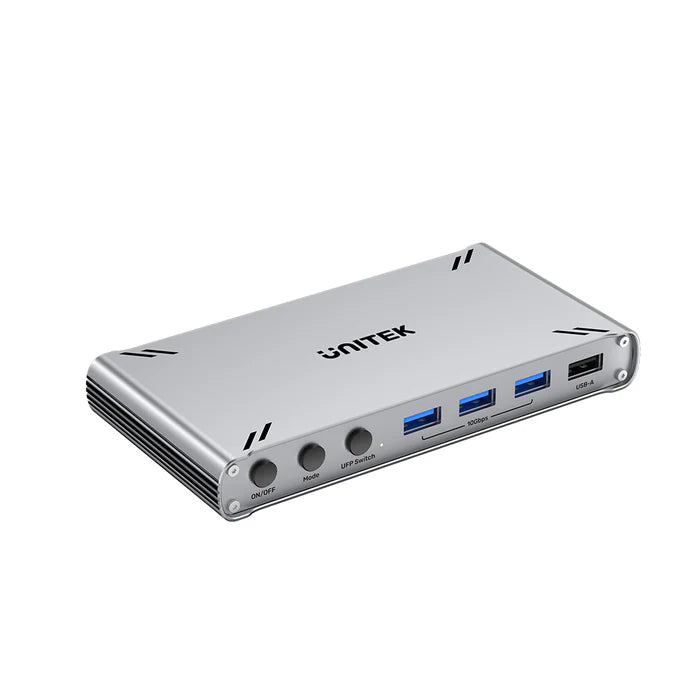

UNITEK D1118AGY01-EU USB-C KVM Switch 4K@30Hz HDMI Split-Screen 10Gbps 5-Port USB-A for 2 PCs
The UNITEK D1118AGY01-EU USB-C KVM Switch enables seamless control of two host devices. It supports 4K@30Hz split‑screen or switch‑screen functionality. You can view both HDMI sources simultaneously or switch between them. The switch shares one monitor and five USB‑A ports between two PCs. This includes three ports at 10Gbps and two ports at 480Mbps. It is ideal for multitasking and productivity on Windows, macOS, and Linux.
The advanced HDMI video screen‑splitting technology allows you to choose between upper/lower or left/right split screens. You can also switch to a single full‑screen display. The resolution supports up to 4K@30Hz and HDCP 1.4. This ensures vibrant image quality. The device features a dedicated "UFP Switch" button. You can toggle between the two hosts to control which device is active.
The KVM switch offers direct data intercopy between the two host devices. You can connect downstream USB devices such as keyboards, mice, and USB hard drives. After installing the driver from the UNITEK website, you can drag and drop files directly between the two computers. This simplifies data transfer and enhances information sharing. Both PC ports must connect to USB 5Gbps or higher for optimal performance.
The switch provides five USB‑A ports. Three ports support SuperSpeed 10Gbps data transfer. Two ports support 480Mbps (USB 2.0). You can share a keyboard, mouse, printer, external drive, or other peripherals between the two hosts. The device also supports fast data transfer up to 10Gbps. This ensures efficient access to your files and devices. It is perfect for high‑performance tasks.
The compact design measures 15cm x 7.5cm x 2.25cm. It fits easily on any desk. The switch is built for broad compatibility. It works with Windows, Linux, and macOS systems. It supports a wide range of devices, including hard drives, flash drives, and monitors. This KVM switch is ideal for professionals who need to control two computers with one monitor and set of peripherals.
Technical Specifications
Frequently Asked Questions
1. What is the maximum resolution supported for each HDMI connection? +
The switch supports up to 4K resolution at 30Hz (3840x2160@30Hz). For split‑screen mode, each input is also at 4K@30Hz. It supports HDCP 1.4.
2. Can I use both computers simultaneously on the same monitor? +
Yes. You can choose split‑screen mode (upper/lower or left/right). Both host screens will be visible at the same time. You can also switch to full‑screen for one host.
3. What is the data intercopy feature? Do I need to install drivers? +
Data intercopy allows you to drag and drop files directly between the two connected computers. You must install the driver from the UNITEK website. After installation, file transfer works as if both computers were on the same network.
4. What are the speeds of the USB‑A ports? +
Three ports support USB 3.2 Gen 2 (10Gbps). Two ports support USB 2.0 (480Mbps). This allows fast data transfer for high‑speed drives and standard peripherals.
