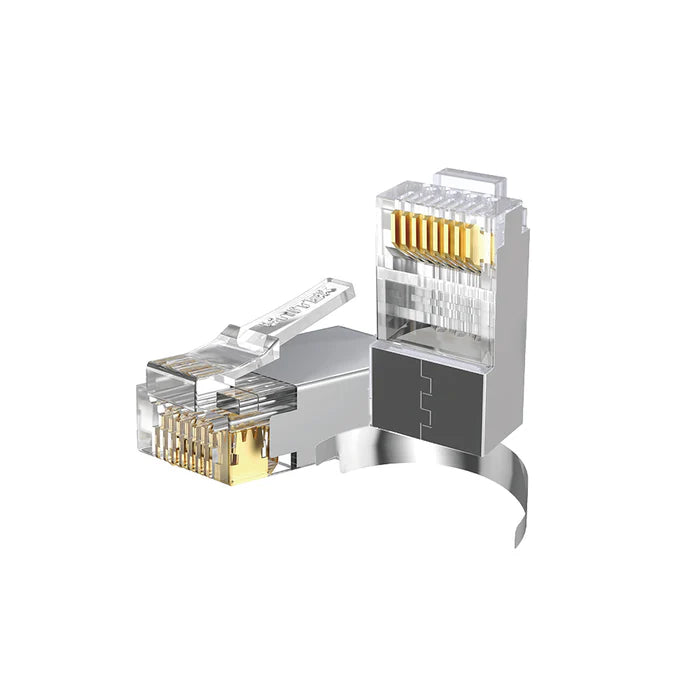

UNITEK OT1093ATP01 Cat7 Pass-Through RJ45 Connector Shielded Gold-Plated 10Gbps 600MHz
The UNITEK OT1093ATP01 is a Cat7 shielded pass-through RJ45 connector. It is designed for high‑speed 10 Gigabit Ethernet networks at 600MHz bandwidth. The connector features a full metal shielded housing. This protects against electromagnetic interference (EMI) and radio frequency interference (RFI). It is ideal for SSTP (shielded shielded twisted pair) and SFTP (shielded foiled twisted pair) Cat7 cables. The pass‑through design allows wires to exit the front for easy colour order verification before crimping. This reduces miswires and waste.
The connector uses staggered 3‑prong gold‑plated contacts. The 50µ gold plating ensures excellent conductivity and resists corrosion. The staggered arrangement reduces crosstalk between adjacent wire pairs. This is critical for maintaining 10Gbps performance over longer runs. The connector supports both solid and stranded 23‑26 AWG Cat7 cable. It works with standard pass‑through crimp tools. After crimping, the excess wire is trimmed automatically.
Each box contains 100 connectors. A strain relief boot is included for each plug. The sturdy plastic storage box keeps them organised and protected. These connectors are perfect for professional network installers, data centres, and serious home users. Terminate high‑performance Cat7 shielded cabling with confidence. Achieve reliable, interference‑free 10Gbps connections.
Upgrade your network with UNITEK OT1093ATP01. Enjoy fast, stable, and secure wired connectivity for gaming, streaming, file transfers, and professional applications.
Technical Specifications
Frequently Asked Questions
1. What type of cable is this connector designed for? +
It is designed for shielded Cat7 SSTP or SFTP cable with 23‑26 AWG conductors. It works with both solid and stranded wire.
2. Does it support Cat6 or Cat5e cable? +
While it is optimised for Cat7, it can be used with Cat6 or Cat5e shielded cable of the same wire gauge. However, for best performance, use with Cat7 cable.
3. What is the advantage of the staggered pin design? +
The staggered 3‑prong contacts reduce crosstalk between adjacent wire pairs. This improves signal integrity at high frequencies (600MHz), which is essential for 10Gbps Ethernet.
4. Do I need a special crimp tool? +
Yes. You need a pass-through (feed-through) RJ45 crimp tool. Standard crimp tools will not trim the wires. UNITEK offers compatible tools such as the OT1093ATP01 crimper.
