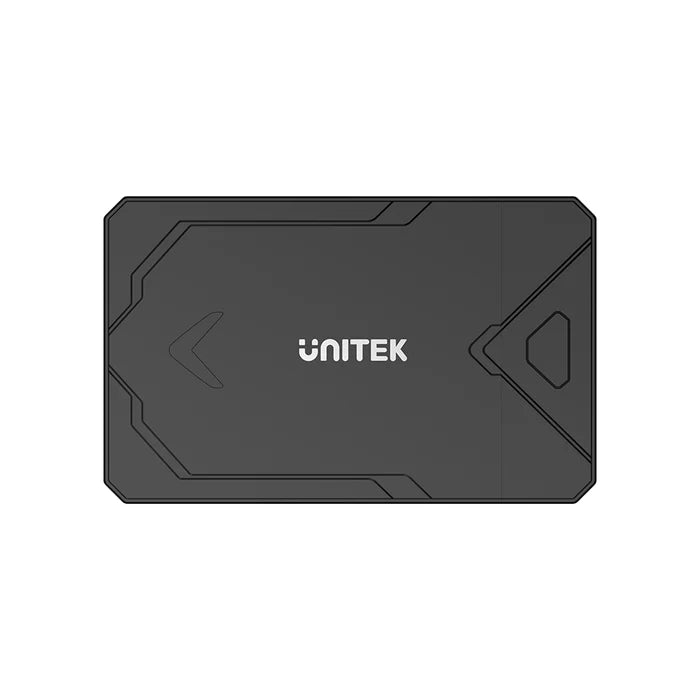

UNITEK S1229CBK01 M.2 NVMe & SATA 2.5 SSD Enclosure 10Gbps USB-C Tool-Free for Windows Mac Linux
The UNITEK S1229CBK01 M.2 NVMe & SATA 2.5" SSD Enclosure is designed for high-speed data transfer. It supports M.2 NVMe (M key) SSDs in sizes 2242, 2260, and 2280. It also accepts 2.5" SATA SSDs and hard drives. With USB 3.2 Gen 2 technology, it delivers speeds up to 10Gbps. You can transfer a 4K HD movie in seconds. The enclosure supports UASP and TRIM, which enhances performance and extends SSD lifespan.
The enclosure features a USB-C port for stable power supply. It also includes an external power option with a DC 5.0V USB-C port. This ensures reliable performance when using both drive slots simultaneously. The device is plug and play. It works with Windows, macOS, Linux, Android, and iOS. It also supports gaming consoles like PS4, PS5, PS3, Xbox, and even routers.
A silicone thermal pad and a hollow heatsink body provide excellent heat dissipation. This keeps your drives cool during intensive tasks. The enclosure also has an automatic sleep mode. It activates after 30 minutes of inactivity, saving energy and extending drive life. You can also press a button to turn off the power in just 3 seconds.
Installation is tool-free. For M.2 NVMe SSDs, follow four simple steps: unscrew the enclosure, insert the SSD, attach the cooling pad, and close it. For 2.5" SATA drives, slide open the enclosure, insert the drive, add the anti-shake foam block for stability, and close it. Hot-swapping is supported, so you can change drives without powering down.
The enclosure comes with a USB-C to USB-C cable and a USB-A adapter. This ensures broad compatibility with modern laptops, desktops, and older devices. However, note that you must disable BitLocker for proper connectivity. The drive must be formatted appropriately for your operating system.
This enclosure is perfect for expanding storage on a MacBook, upgrading a gaming console, or creating a fast external backup drive. Its compact design and efficient cooling make it suitable for both home and professional use.
Technical Specifications
Frequently Asked Questions
1. What types of drives does this enclosure support? +
It supports M.2 NVMe (PCIe) SSDs with M key in sizes 2242, 2260, and 2280. It also supports 2.5" SATA SSDs and HDDs. It does not support M.2 SATA SSDs.
2. What is the maximum data transfer speed? +
Up to 10Gbps via USB 3.2 Gen 2. Actual speed depends on your drive and host device.
3. Does the enclosure need external power? +
The USB-C port provides power. However, when using both drive slots simultaneously, an external power source connected to the DC 5.0V USB-C port is recommended for stable operation.
4. Can I use both an M.2 NVMe drive and a 2.5" SATA drive at the same time? +
Yes, the enclosure supports simultaneous connection of one M.2 NVMe SSD and one 2.5" SATA drive. Both will be recognized independently by your computer.
