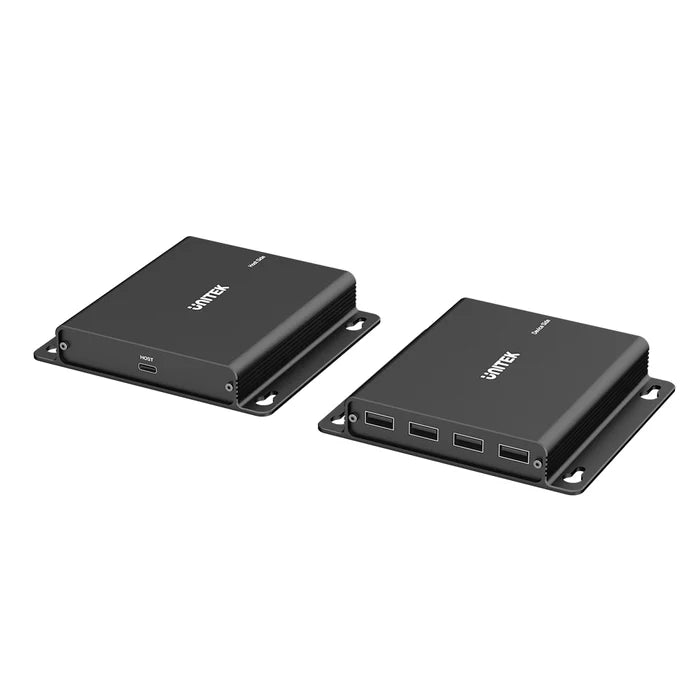

UNITEK U1222ABK01-EU USB-C to 4-Port USB 2.0 Extender over Ethernet Up to 150M with PoC
The UNITEK U1222ABK01-EU is a USB‑C to 4‑port USB 2.0 extender over Ethernet. It allows you to extend USB signals up to 150 meters using a single Cat6 network cable. The transmitter connects to your computer via USB‑C. The receiver provides four USB‑A ports for your peripherals. The extender supports data transfer speeds of up to 480Mbps (USB 2.0 Hi‑Speed). It is ideal for webcams, printers, CCTV cameras, and other USB devices in large spaces.
The extender features Power over Cable (PoC) technology. The receiver unit is powered by a single‑side power supply (5V DC). The power is then transmitted over the Ethernet cable to the transmitter. No separate power is needed at the transmitter end. This simplifies installation and reduces cable clutter. The power adapter is included. The system operates at low voltage (5V), making it safe and reliable.
The extender is plug and play. No drivers are required. It works with all major operating systems, including Windows, macOS, Android, and Linux. It also supports USB 1.1 peripherals. You can connect up to four devices simultaneously. The extender supports two webcams at the same time for video conferencing or surveillance applications. The compact design includes mounting holes and ears for convenient wall mounting.
This USB extender is perfect for multimedia conferences, education, industrial automation, medical equipment, CCTV systems, and digital signage. Place a webcam 150 meters away from your computer. Connect a printer in a remote office. Run surveillance cameras across a large facility. The UNITEK U1222ABK01-EU delivers reliable long‑distance USB connectivity.
Technical Specifications
Frequently Asked Questions
1. What is the maximum distance this extender can achieve? +
It supports USB extension up to 150 meters (approximately 492 feet) using a single Cat6 UTP/STP cable.
2. How many USB ports does the receiver have? What is the data speed? +
The receiver has 4 USB 2.0 Type‑A ports. It supports data transfer speeds up to 480Mbps (USB 2.0 Hi‑Speed). It is also backward compatible with USB 1.1.
3. Does the extender require power at both ends? What is Power over Cable (PoC)? +
No. The receiver unit is powered by the included 5V DC power adapter. The power is then transmitted over the Ethernet cable to the transmitter (Power over Cable). The transmitter does not need a separate power supply. This is called PoC (Power over Cable).
4. Is the power adapter included? What are its specifications? +
Yes, a 5V DC power adapter is included. It supplies power to the receiver unit. The exact current rating is typically 1A or 2A (check product label).
