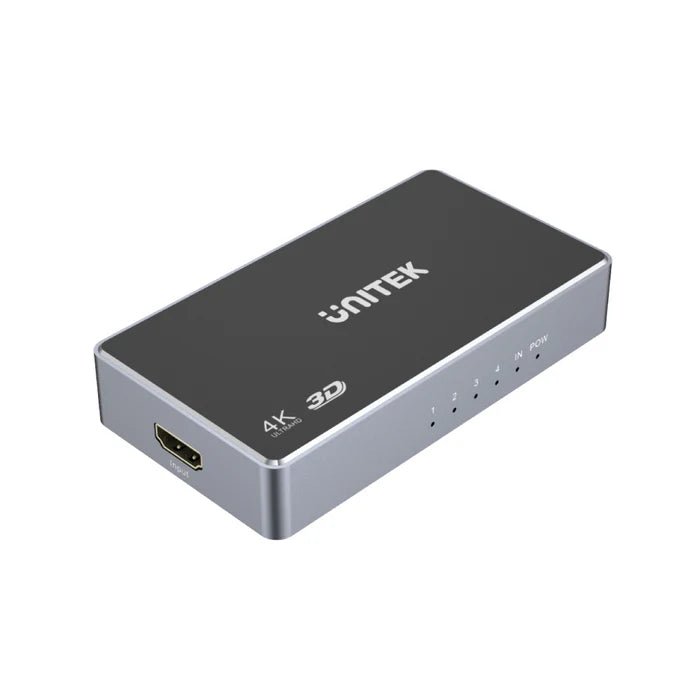

UNITEK V1109A 4K HDMI Splitter 1x4 4K@30Hz 3D Pass-Through Dolby TrueHD DTS-HD for PS4 Xbox Blu-ray
The UNITEK V1109A 4K HDMI Splitter allows you to connect one HDMI source to four HDMI displays simultaneously. This is perfect for presentations, home theaters, digital signage, or multi‑monitor setups. The splitter supports resolutions up to 4K at 30Hz (3840x2160@30Hz). It is compliant with HDMI 1.4b and HDCP 1.3. It also supports 12‑bit color depth and 3D pass‑through. This ensures vibrant, lifelike images across all four screens.
The splitter supports high‑definition audio formats. These include Dolby TrueHD and DTS‑HD Master Audio. You get uncompressed 7.1 surround sound. Front‑panel LED indicators show power and signal status. This makes it easy to monitor operation. The device is powered via USB (adapter included or required). It is plug and play. No drivers or software are needed.
This splitter is widely compatible. It works with gaming consoles (PS4, Xbox One, etc.), Blu‑ray players, computers, streaming devices, and cable boxes. It is ideal for sharing a single source across multiple projectors, TVs, or monitors. The compact design fits easily behind a display or on a desk. The splitter does not degrade signal quality when used with proper HDMI cables.
With four outputs, you can drive a video wall, multiple classroom displays, or a multi‑room home theater. The splitter simultaneously sends the same high‑quality video and audio to all connected screens. This makes it a cost‑effective solution for distributing content without needing multiple sources.
Technical Specifications
Frequently Asked Questions
1. How many displays can I connect? What is the configuration? +
You can connect up to four HDMI displays. The splitter takes one HDMI source and duplicates the signal to all four outputs simultaneously. All displays show the same content.
2. What is the maximum resolution and refresh rate? +
It supports up to 4K at 30Hz (3840x2160@30Hz). It also supports lower resolutions like 1080p, 720p, etc., at higher refresh rates.
3. Does it support 3D and high dynamic range (HDR)? +
It supports 3D pass‑through (Full HD 1080P at 60Hz). HDR is not supported because HDMI 1.4b does not include HDR. For HDR, you need an HDMI 2.0 or 2.1 splitter.
4. What audio formats are supported? +
It supports Dolby TrueHD and DTS‑HD Master Audio, as well as PCM up to 7.1 channels. Standard Dolby Digital and DTS are also supported.
