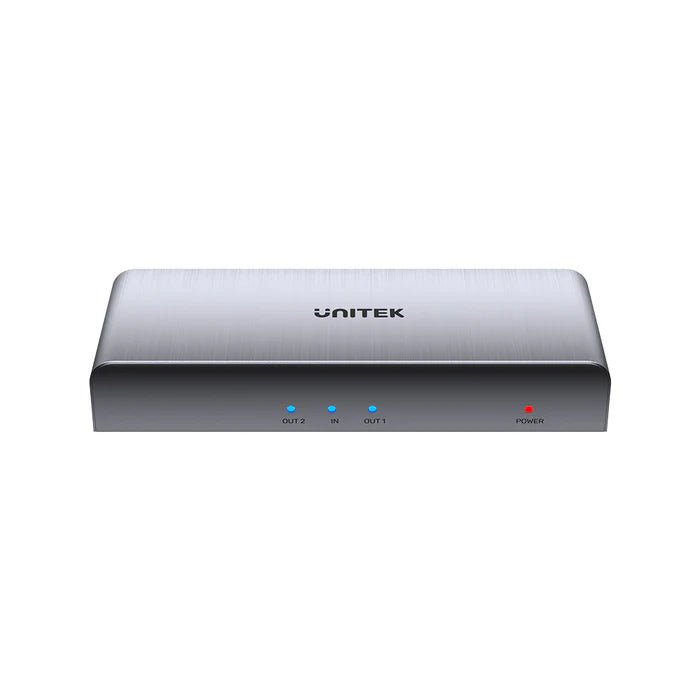

UNITEK V1130A01-EU 4K HDMI Splitter 1x2 4K@30Hz 1080P@60Hz for PS4 Xbox Blu-ray Plug and Play
The UNITEK V1130A01-EU 4K HDMI Splitter duplicates a single HDMI input source into two identical outputs. There is no loss of video or audio quality. This allows you to connect two displays simultaneously. It is perfect for work, entertainment, or gaming. The splitter supports UHD 4K resolution at 30Hz. It also supports QHD 2K at 60Hz and 1080P at 60Hz. It is compatible with HDMI 1.4b, 1.3, and 1.2. It also supports HDCP 1.4a and 3D Full HD 1080P at 60Hz.
The splitter supports various audio formats. These include PCM 2ch to 7.1ch. Sample rates from 32kHz to 192kHz are supported. This ensures a rich audio‑visual experience across all displays. The device is plug and play. No drivers are required. LED indicators light up blue and red when connected. The compact dimensions are 127.7mm x 52.8mm x 21.0mm. This allows easy placement in any setup.
For transmission distance, use 26AWG HDMI standard cables for best performance. At 4K@30Hz, the input distance is 10 meters. The output distance is 15 meters. For 1080p resolution, both input and output distances can reach 15 meters. This ensures reliable connectivity across your multi‑screen setup.
The splitter is widely compatible. It works with computers, Xbox One, PS3, PS4 Pro, Fire Stick, Blu‑ray DVD players, and Roku. It is ideal for presentations, gaming, digital signage, and home theater. Real‑time screen synchronization makes it easy to share content in office environments. All connected displays show the same high‑quality visuals simultaneously.
This device is perfect for events, conferences, or entertainment venues. It extends 4K content to two large screens without degradation. The user‑friendly design requires no complicated setup. Just connect, power on, and enjoy identical, high‑quality video on two displays.
Technical Specifications
Frequently Asked Questions
1. What resolutions and refresh rates does this splitter support? +
It supports UHD 4K at 30Hz (3840x2160@30Hz), QHD 2K at 60Hz (2560x1440@60Hz), and Full HD 1080P at 60Hz. It is also backward compatible with lower resolutions.
2. Can I use this splitter with HDMI 2.1 devices (like PS5 or Xbox Series X at 4K@120Hz)? +
No. The product note explicitly states: "Not compatible with HDMI 2.1/2.0 devices." It is designed for HDMI 1.4b and older devices. For 4K@60Hz or 4K@120Hz, you need an HDMI 2.0 or 2.1 splitter.
3. Does it support HDR? What about HDCP 2.2? +
It supports HDCP 1.4a, not HDCP 2.2. HDR is not supported (HDMI 1.4b does not include HDR). For protected 4K content from streaming services or 4K Blu‑ray, this splitter may not work. Check your source and display requirements.
4. Does the splitter support audio passthrough? What audio formats? +
Yes, it supports PCM audio from 2ch up to 7.1ch at sample rates of 32kHz, 48kHz, 96kHz, and 192kHz. It does not compress the audio. Bitstream formats like Dolby Digital and DTS are also passed through (limited by HDMI 1.4b bandwidth).
