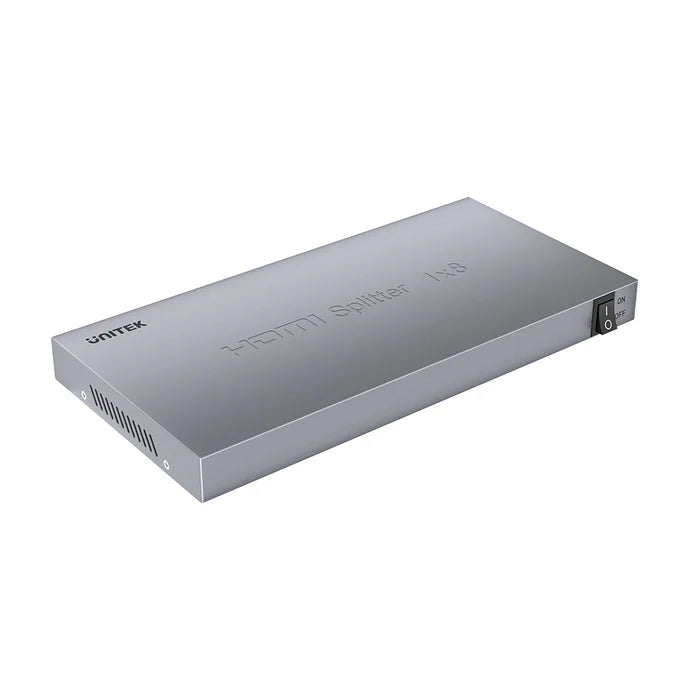

UNITEK V1132A01-EU 4K HDMI Splitter 1x8 4K@30Hz 1080P@60Hz for PS4 Xbox Blu-ray Digital Signage
The UNITEK V1132A01-EU 4K HDMI Splitter duplicates a single HDMI input source into eight identical outputs. There is no loss of video or audio quality. This powerful splitter is perfect for conference rooms, healthcare centers, retail storefronts, and digital signage. It supports UHD 4K resolution at 30Hz. It also supports QHD 2K at 60Hz and 1080P at 60Hz. It is compatible with HDMI 1.4b, 1.3, and 1.2. It also supports HDCP 1.4a and 3D Full HD 1080P at 60Hz.
The splitter supports various audio formats. These include PCM 2ch to 7.1ch. Sample rates from 32kHz to 192kHz are supported. This ensures a rich audio‑visual experience across all displays. The device is plug and play. No drivers are required. An LED indicator lights up blue when connected. The compact dimensions are 270.5mm x 135.4mm x 24.0mm. This allows easy placement in any rack or desk setup.
For transmission distance, use 26AWG HDMI standard cables for best performance. At 4K@30Hz, the input distance is 10 meters. The output distance is 15 meters. For 1080p resolution, both input and output distances can reach 15 meters. This ensures reliable connectivity across your multi‑screen setup.
The splitter is widely compatible. It works with computers, Xbox One, PS3, PS4 Pro, Fire Stick, Blu‑ray DVD players, and Roku. Real‑time screen synchronization ensures all displays show the same high‑quality visuals simultaneously. This enhances collaboration and productivity in office environments, presentations, and events.
This splitter is perfect for large‑scale installations. It can drive video walls, multiple classroom displays, or retail signage. The 1‑in‑8‑out capability distributes content to many screens without needing multiple sources. The user‑friendly design requires no complicated setup. Just connect, power on, and enjoy identical, high‑quality video on eight displays.
Technical Specifications
Frequently Asked Questions
1. How many displays can I connect? What is the configuration? +
You can connect up to eight HDMI displays. The splitter takes one HDMI source and duplicates the signal to all eight outputs simultaneously. All displays show the same content.
2. What is the maximum resolution and refresh rate? +
It supports up to 4K at 30Hz (3840x2160@30Hz). It also supports QHD 2K at 60Hz (2560x1440@60Hz) and Full HD 1080P at 60Hz. Lower resolutions are also supported.
3. Does it support 3D and HDR? +
It supports 3D pass‑through (Full HD 1080P at 60Hz). HDR is not supported because HDMI 1.4b does not include HDR. For HDR, you need an HDMI 2.0 or 2.1 splitter.
4. What audio formats are supported? +
It supports PCM audio from 2ch up to 7.1ch at sample rates of 32kHz, 48kHz, 96kHz, and 192kHz. It also passes through standard Dolby Digital and DTS. Bitstream formats like Dolby TrueHD and DTS-HD Master Audio are limited by HDMI 1.4b bandwidth but may work at lower resolutions.
