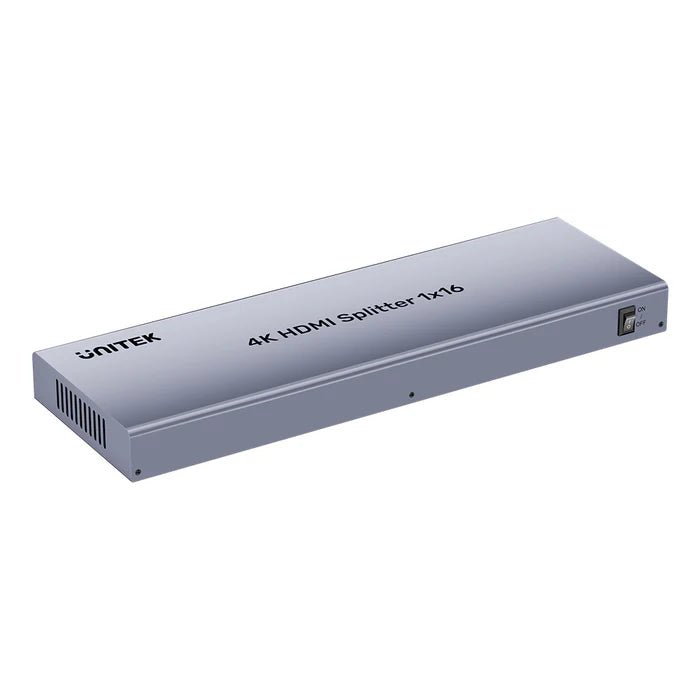

UNITEK V1137AGY01-EU 4K HDMI Splitter 1x16 4K@30Hz Cascading for PS4 Xbox Blu-ray Digital Signage
The UNITEK V1137AGY01-EU 4K HDMI Splitter duplicates a single HDMI input source into sixteen identical outputs. There is no loss of video or audio quality. This powerful splitter is perfect for presentations, events, digital signage, TV stores, classrooms, and meeting rooms. It supports resolutions up to 4K at 30Hz. It also supports 2K at 60Hz, 1080P at 60Hz, 720P at 60Hz, and 480P at 60Hz. It is compatible with HDMI 1.4, 1.3, and 1.2. It supports HDCP 1.4a.
The splitter supports multi‑level cascading. You can connect additional splitters to increase the number of displays beyond 16. This allows for very large video walls or expansive multi‑screen installations. The device has a built‑in signal amplifier. It ensures strong audio and video transmission over long distances. For 4K resolution, input distance is up to 10 meters. Output distance is up to 15 meters (with 26AWG HDMI cables). For 1080P, both input and output distances can reach 15 meters.
The splitter supports audio‑video signal synchronization. All displays show the same content simultaneously. Audio formats are passed through without degradation. The device is powered by a DC 12.0V power adapter. It includes a convenient power switch and LED indicators for status. The dimensions are 460.0mm x 150.0mm x 40.0mm. It is designed for rack mounting or desk placement.
This splitter is widely compatible. It works with PCs, Xbox One, PS4, Blu‑ray players, Fire Stick, Roku, and other HDMI sources. It is ideal for large venues such as conference centers, sports bars, airports, and retail stores. The cascading feature allows you to scale the system as needed. The robust metal housing ensures durability and heat dissipation.
With sixteen outputs, you can drive a massive video wall or distribute content to many individual screens. The splitter maintains signal integrity across all ports. It is a reliable, professional‑grade solution for demanding AV installations.
Technical Specifications
Frequently Asked Questions
1. How many displays can I connect directly to this splitter? +
You can connect up to sixteen HDMI displays directly. The splitter takes one HDMI source and duplicates the signal to all sixteen outputs simultaneously.
2. Can I connect more than sixteen displays? How? +
Yes, the splitter supports multi‑level cascading. You can connect the output of this splitter to another 1x4, 1x8, or 1x16 splitter to increase the total number of displays. Each additional splitter multiplies the outputs.
3. What resolutions and refresh rates are supported? +
It supports 4K at 30Hz (3840x2160@30Hz), 2K at 60Hz (2560x1440@60Hz), 1080P at 60Hz, 720P at 60Hz, and 480P at 60Hz. Lower resolutions are also supported.
4. Does it support HDR or 3D? +
It supports 3D pass‑through (up to 1080P). HDR is not supported because HDMI 1.4 does not include HDR. For HDR, you need an HDMI 2.0 or 2.1 splitter.
