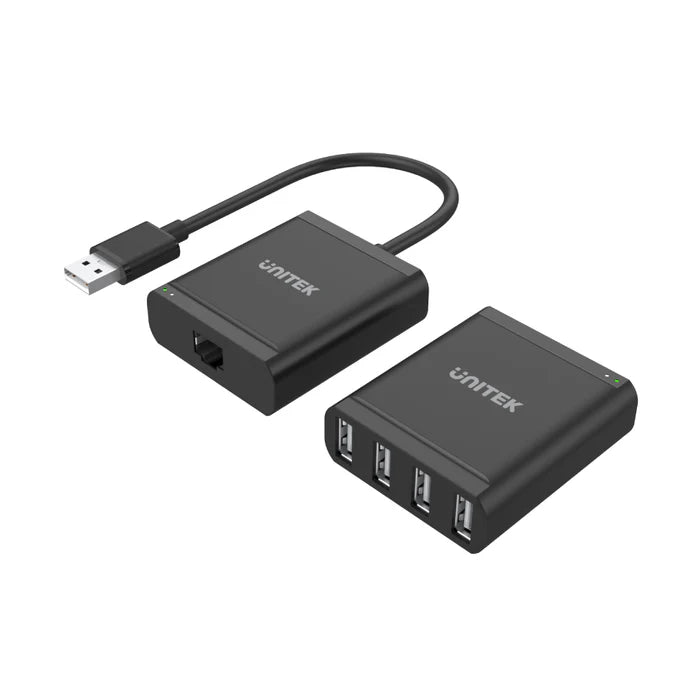

UNITEK Y-2516 USB over Ethernet Extender 4-Port USB 2.0 Hub Up to 60M for Printer Webcam
The UNITEK Y-2516 is a USB over RJ45 extender. It allows you to extend USB connections up to 60 meters. The device has one USB‑A input (host side) and four USB‑A ports (device side). It uses standard Cat5, Cat5e, or Cat6 LAN cable to bridge the distance. The extender supports USB 2.0 Hi‑Speed data transfer rates of up to 480Mbps. It is compatible with all major operating systems, including Windows, macOS, Linux, and Android.
The extender features an external DC 5V/2A power port. This provides stable power to connected USB peripherals. High‑consumption devices such as printers, webcams, external hard drives, and security cameras benefit from this extra power. The power adapter is not included. You can supply your own 5V/2A DC adapter (barrel connector). Without external power, the extender may still work for low‑power devices, but for reliable long‑distance operation, external power is recommended.
The device is plug and play. No drivers are required. Simply connect the transmitter unit (USB‑A to your computer) and receiver unit (4 USB‑A ports) with a Cat5/5e/6 cable. Connect the external power if needed. The extender is hot‑swappable. It works with a wide range of peripherals, including printers, scanners, webcams, keyboards, mice, flash drives, and industrial sensors.
This extender is ideal for professional environments where USB devices need to be placed far from the host computer. Use it in conference rooms, video conferencing setups, security monitoring stations, medical facilities, and factory automation systems. The UNITEK Y-2516 delivers reliable USB extension over long distances.
Technical Specifications
Frequently Asked Questions
1. What is the maximum distance this extender can achieve? +
It supports distances from 30 to 60 meters, depending on the quality of your Cat5, Cat5e, or Cat6 LAN cable. For best results, use solid copper Cat6 cable.
2. How many USB ports does the receiver unit have? +
The receiver unit has 4 USB‑A ports. You can connect up to four USB devices simultaneously.
3. What is the data transfer speed? Does it support USB 3.0? +
It supports USB 2.0 Hi‑Speed up to 480Mbps. It does not support USB 3.0 (5Gbps). For USB 3.0 over long distances, you would need a different extender.
4. Do I need external power? Is a power adapter included? +
For stable operation, especially with multiple or high‑power devices, external power is recommended. The device has a DC 5V/2A power port (barrel connector). The power adapter is not included. You can use any 5V/2A DC power supply with the correct barrel plug (center positive, typically 2.1mm or 2.5mm – check product specifications).
